- Transformers
- Switching Converter, SMPS Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock

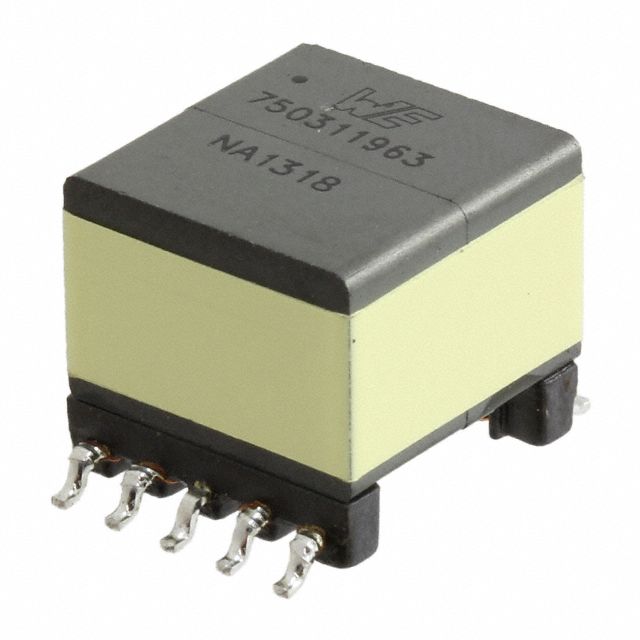

750311963
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3511
Chipset Manufacturer : Linear Technology
Voltage - Primary : 8 ~ 70V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 200µH @ 10kHz
Frequency : 50 ~ 300kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3511
Chipset Manufacturer : Linear Technology
Voltage - Primary : 8 ~ 70V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 200µH @ 10kHz
Frequency : 50 ~ 300kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
100 in stock

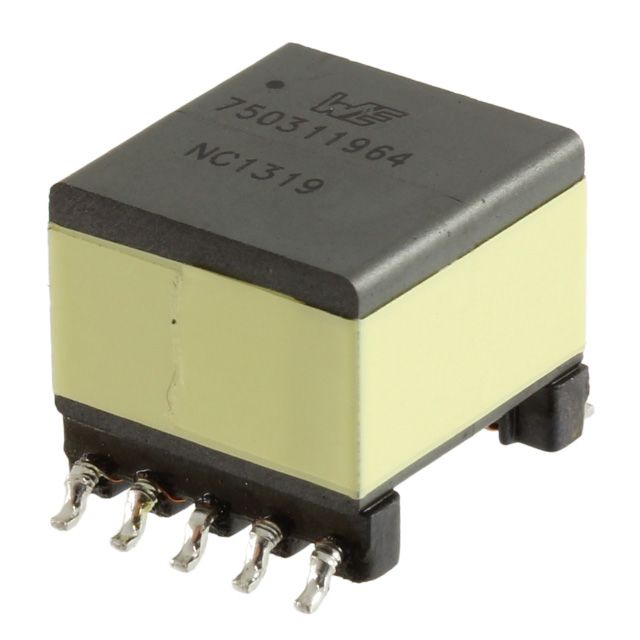

750311964
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3512
Chipset Manufacturer : Linear Technology
Voltage - Primary : 8 ~ 70V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 100µH @ 10kHz
Frequency : 50 ~ 300kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3512
Chipset Manufacturer : Linear Technology
Voltage - Primary : 8 ~ 70V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 100µH @ 10kHz
Frequency : 50 ~ 300kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
100 in stock

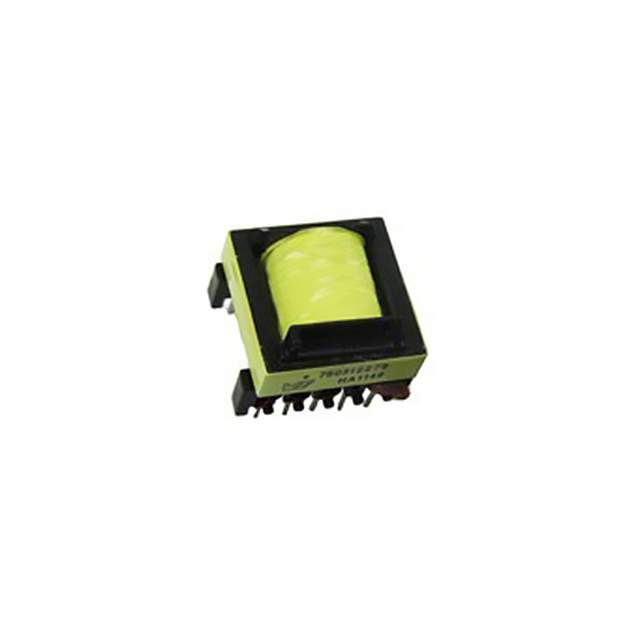

750312279
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : MID-OLON
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : On Semiconductor
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 14V
Voltage - Isolation : 3750Vrms
Inductance @ Frequency : 750µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.866" W (23.00mm x 22.00mm)
Height - Seated (Max) : 0.690" (17.53mm)
Footprint : -
Style : -
Packaging : -
Series : MID-OLON
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : On Semiconductor
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 14V
Voltage - Isolation : 3750Vrms
Inductance @ Frequency : 750µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.866" W (23.00mm x 22.00mm)
Height - Seated (Max) : 0.690" (17.53mm)
Footprint : -
Style : -
0
70 in stock

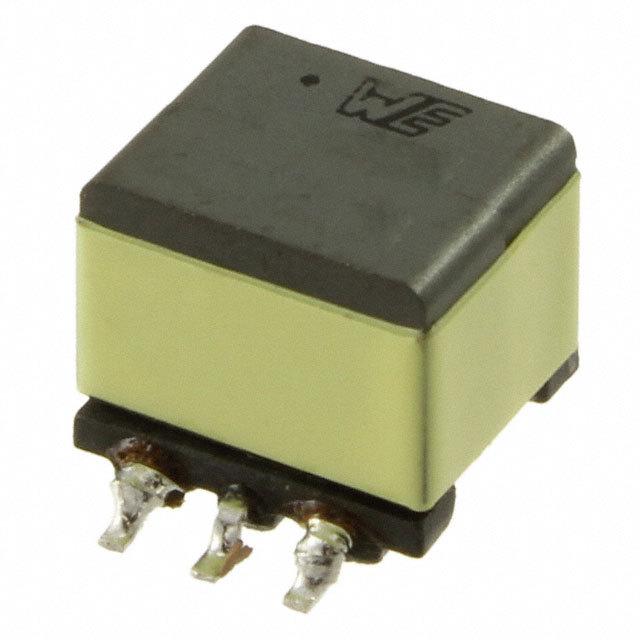

750312365
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PoE, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 30 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-PoE, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 30 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
0
299 in stock

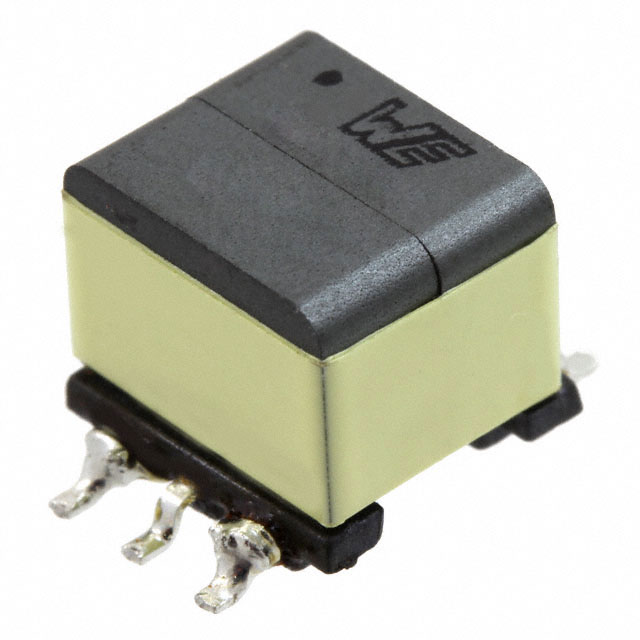

750312366
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-UNIT, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 18 ~ 75V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 400µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.340" (8.64mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-UNIT, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 18 ~ 75V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 400µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.340" (8.64mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
0
626 in stock
750312367
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 22 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 22 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
0
882 in stock

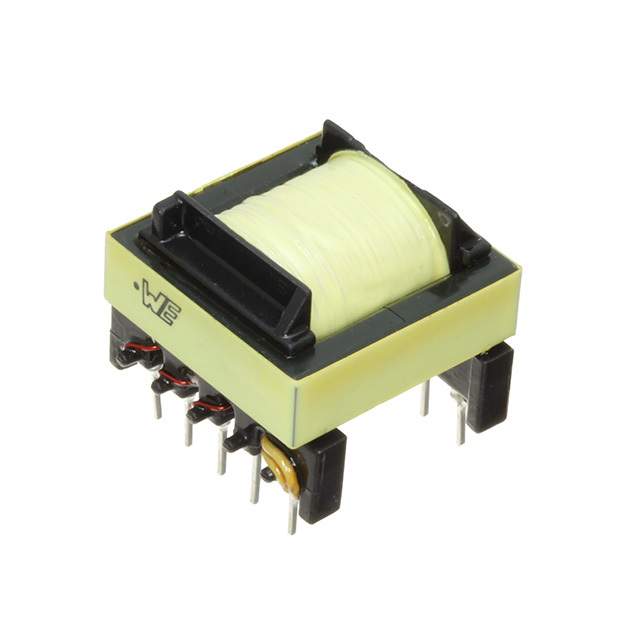

750312495
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : MID-OLON
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : On Semiconductor
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 14V
Voltage - Isolation : 3750Vrms
Inductance @ Frequency : 750µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.866" W (23.00mm x 22.00mm)
Height - Seated (Max) : 0.690" (17.53mm)
Footprint : -
Style : -
Packaging : -
Series : MID-OLON
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : On Semiconductor
Voltage - Primary : 120 ~ 375V
Voltage - Auxiliary : 14V
Voltage - Isolation : 3750Vrms
Inductance @ Frequency : 750µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.866" W (23.00mm x 22.00mm)
Height - Seated (Max) : 0.690" (17.53mm)
Footprint : -
Style : -
0
20 in stock

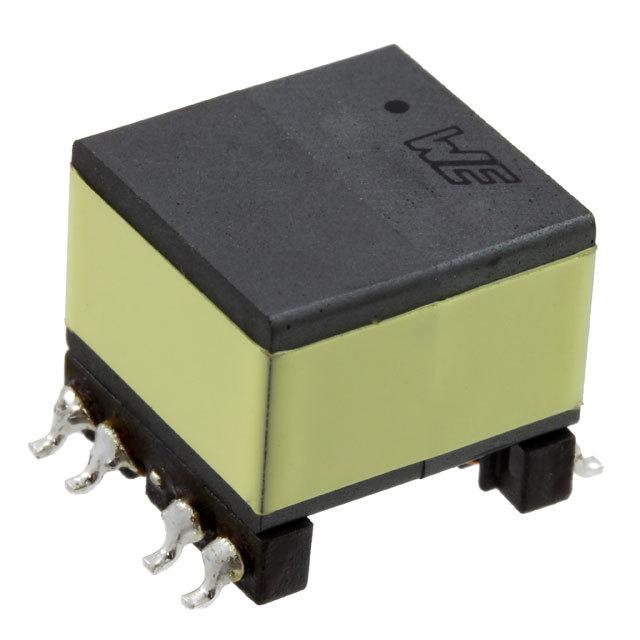

750312504
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Capacitor Charger
Intended Chipset : LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2
Chipset Manufacturer : Linear Technology
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500VDC
Inductance @ Frequency : 3.46µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Capacitor Charger
Intended Chipset : LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2
Chipset Manufacturer : Linear Technology
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 500VDC
Inductance @ Frequency : 3.46µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
851 in stock

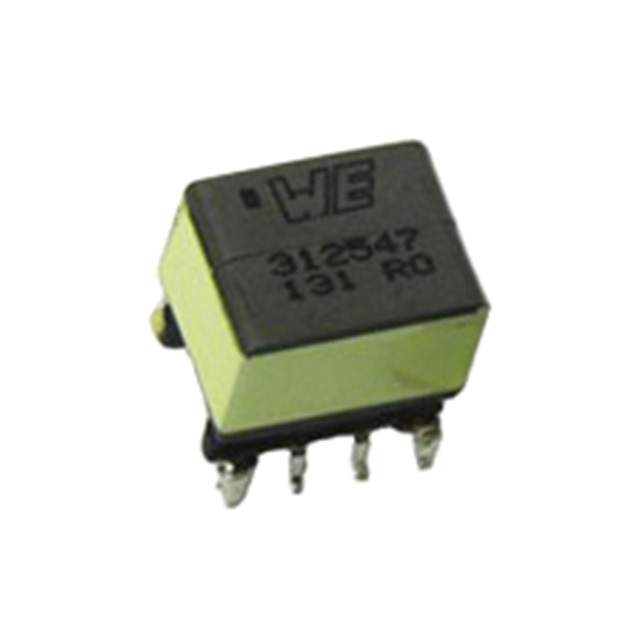

750312547
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Applications : -
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : -
Frequency : -
Operating Temperature : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Footprint : -
Style : -
0
20 in stock

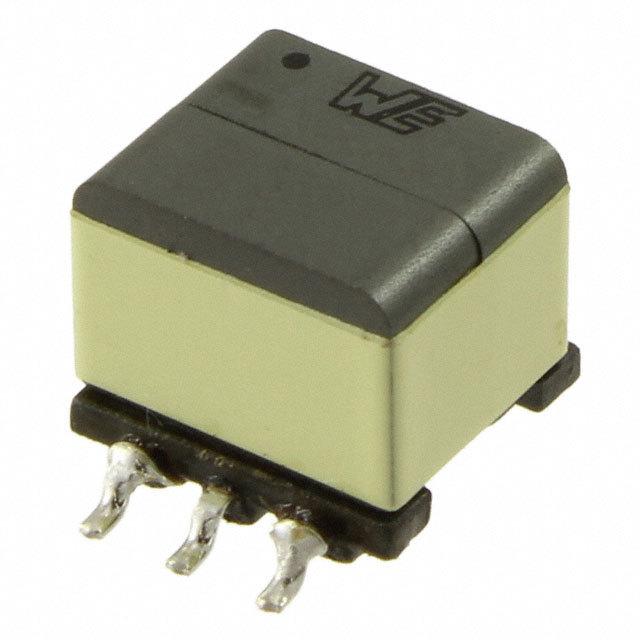

750312557
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 70kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 70kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
0
313 in stock
750312558
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 70kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.69mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 70kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.69mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
567 in stock
750312559
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 70kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 70kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.342" (8.69mm)
Footprint : 0.400" L x 0.526" W (10.16mm x 13.36mm)
Style : -
0
1979 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
