- Transformers
- Switching Converter, SMPS Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock

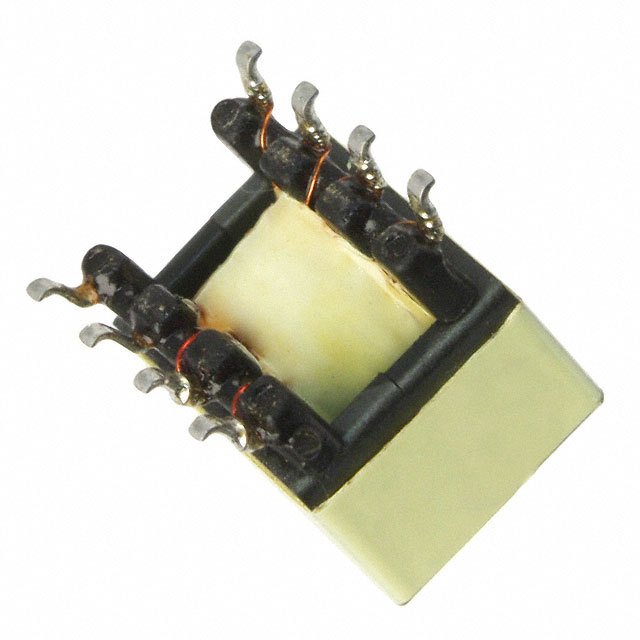

750311692
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 8 ~ 15V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 80µH @ 100kHz
Frequency : 200kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.67mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 8 ~ 15V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 80µH @ 100kHz
Frequency : 200kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.67mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
1471 in stock

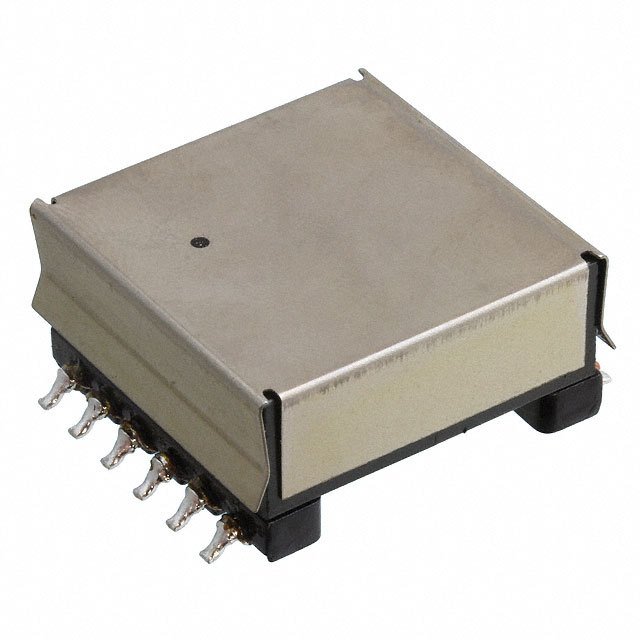

750311715
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 60 ~ 600V
Voltage - Auxiliary : 8V
Voltage - Isolation : 2000Vrms
Inductance @ Frequency : 280µH @ 10kHz, 2.8µH @ 10kHz, 224µH @ 10kHz
Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 60 ~ 600V
Voltage - Auxiliary : 8V
Voltage - Isolation : 2000Vrms
Inductance @ Frequency : 280µH @ 10kHz, 2.8µH @ 10kHz, 224µH @ 10kHz
Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
0
100 in stock
750311771
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 100 ~ 400V
Voltage - Auxiliary : 15V @ 20mA
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 500µH @ 10kHz, 14µH @ 10kHz, 400µH @ 10kHz
Frequency : 60 ~ 400kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 100 ~ 400V
Voltage - Auxiliary : 15V @ 20mA
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 500µH @ 10kHz, 14µH @ 10kHz, 400µH @ 10kHz
Frequency : 60 ~ 400kHz
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
0
32 in stock

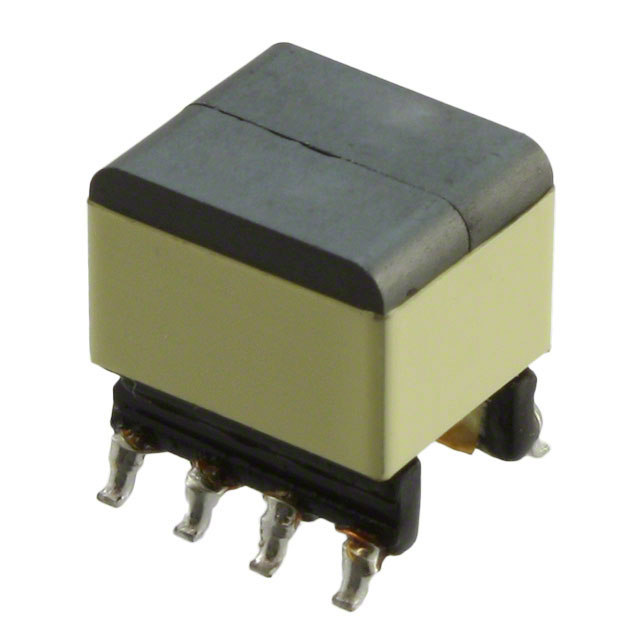

750311780
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-IBTI
Part Status : Active
Type : -
Applications : -
Intended Chipset : TPS55010
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 2000Vrms
Inductance @ Frequency : 2µH @ 100kHz
Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.67mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-IBTI
Part Status : Active
Type : -
Applications : -
Intended Chipset : TPS55010
Chipset Manufacturer : Texas Instruments
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : 2000Vrms
Inductance @ Frequency : 2µH @ 100kHz
Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.67mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
183 in stock
750311783
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 19 ~ 70V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 20µH @ 150kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 19 ~ 70V
Voltage - Auxiliary : 12V @ 10mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 20µH @ 150kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
0
476 in stock

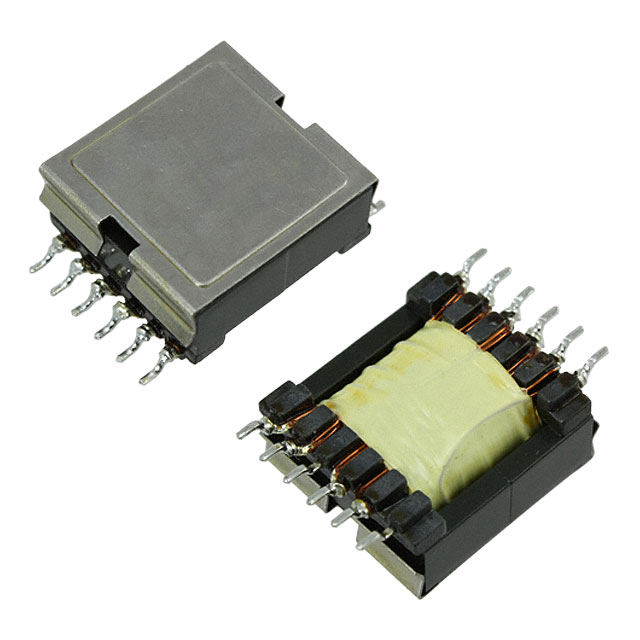

750311797
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 18 ~ 100V
Voltage - Auxiliary : 12V
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 14µH @ 150kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.455" (11.56mm)
Footprint : 0.910" L x 1.150" W (23.11mm x 29.08mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 18 ~ 100V
Voltage - Auxiliary : 12V
Voltage - Isolation : 4000Vrms
Inductance @ Frequency : 14µH @ 150kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.455" (11.56mm)
Footprint : 0.910" L x 1.150" W (23.11mm x 29.08mm)
Style : -
0
3520 in stock

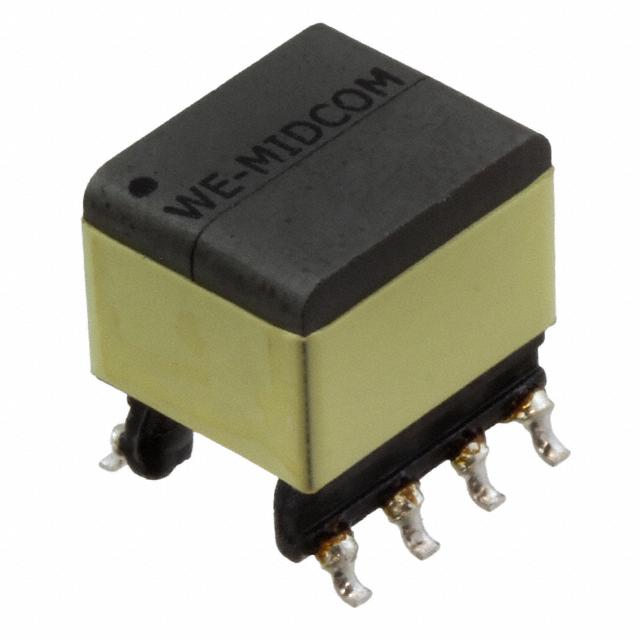

750311838
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 350µH @ 100kHz
Frequency : 190kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.415" (10.54mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 350µH @ 100kHz
Frequency : 190kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.415" (10.54mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
378 in stock

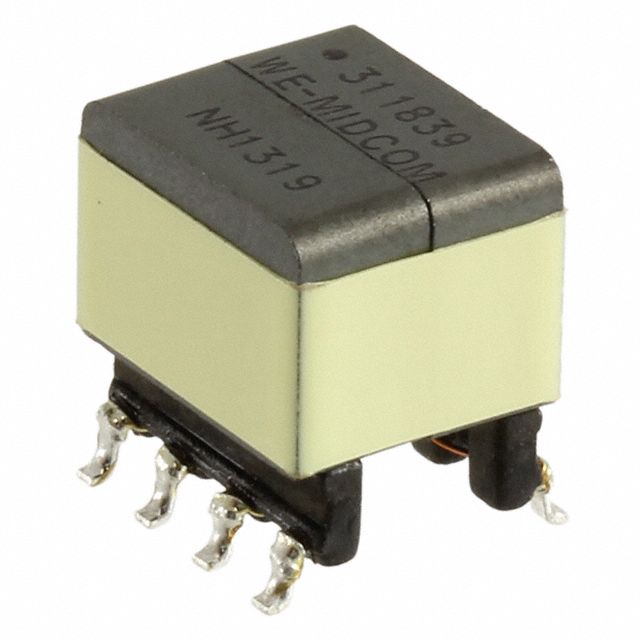

750311839
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3512
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 200µH @ 100kHz
Frequency : 190kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.69mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3512
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36 ~ 72V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 200µH @ 100kHz
Frequency : 190kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.69mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
100 in stock

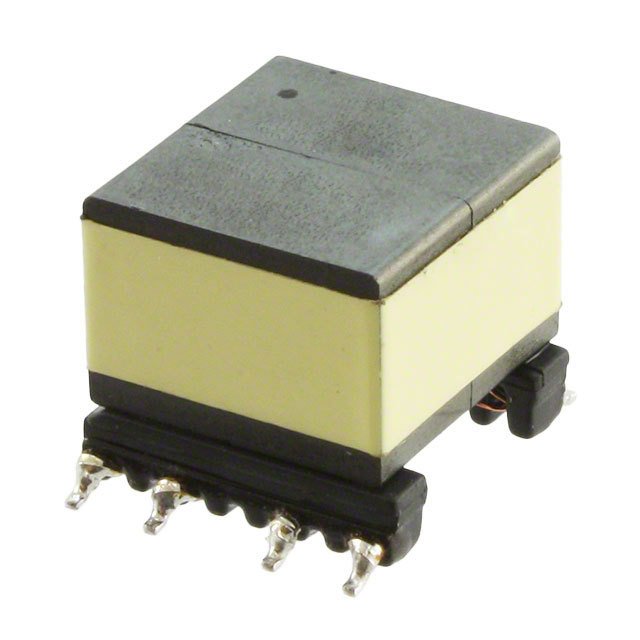

750311856
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 16 ~ 24V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 3.8µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.550" L x 0.676" W (13.97mm x 17.17mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 16 ~ 24V
Voltage - Auxiliary : -
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 3.8µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.550" L x 0.676" W (13.97mm x 17.17mm)
Style : -
0
79 in stock
750311880
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-IBTI
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : TPS55010
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 3 ~ 6V
Voltage - Auxiliary : -
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 2.5µH @ 100kHz
Frequency : 200 ~ 600kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.67mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-IBTI
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : TPS55010
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 3 ~ 6V
Voltage - Auxiliary : -
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 2.5µH @ 100kHz
Frequency : 200 ~ 600kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.67mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
8553 in stock
750311889
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 28V
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : 37µH @ 100kHz, 928µH @ 100kHz
Frequency : 100 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 28V
Voltage - Auxiliary : -
Voltage - Isolation : 500Vrms
Inductance @ Frequency : 37µH @ 100kHz, 928µH @ 100kHz
Frequency : 100 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
0
89 in stock
750311959
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : -
Series : MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 120V
Voltage - Auxiliary : -
Voltage - Isolation : 1875Vrms
Inductance @ Frequency : -
Frequency : 80kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.025" L x 1.050" W (26.04mm x 26.67mm)
Height - Seated (Max) : -
Footprint : -
Style : -
Packaging : -
Series : MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : Texas Instruments
Voltage - Primary : 120V
Voltage - Auxiliary : -
Voltage - Isolation : 1875Vrms
Inductance @ Frequency : -
Frequency : 80kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.025" L x 1.050" W (26.04mm x 26.67mm)
Height - Seated (Max) : -
Footprint : -
Style : -
0
20 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
