- Transformers
- Switching Converter, SMPS Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
750311457
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36V
Voltage - Auxiliary : 10V @ 20mA
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 50µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36V
Voltage - Auxiliary : 10V @ 20mA
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 50µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
11 in stock

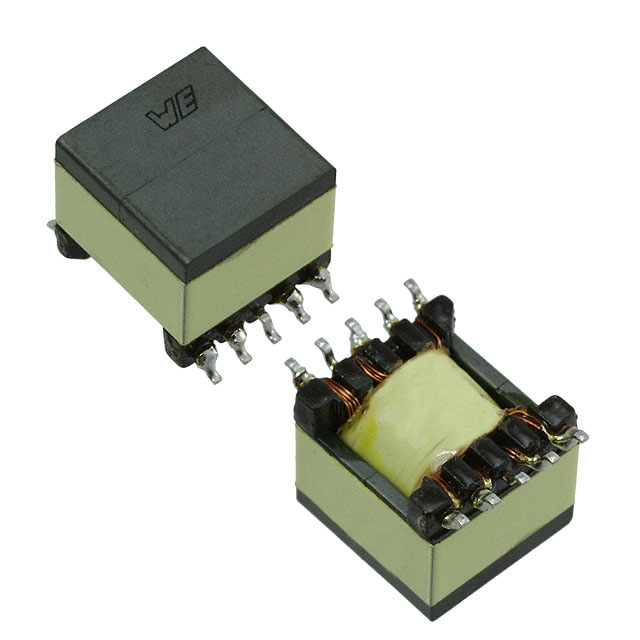

750311458
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36V
Voltage - Auxiliary : 8V @ 20mA
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 15µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 36V
Voltage - Auxiliary : 8V @ 20mA
Voltage - Isolation : 2500Vrms
Inductance @ Frequency : 15µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
520 in stock

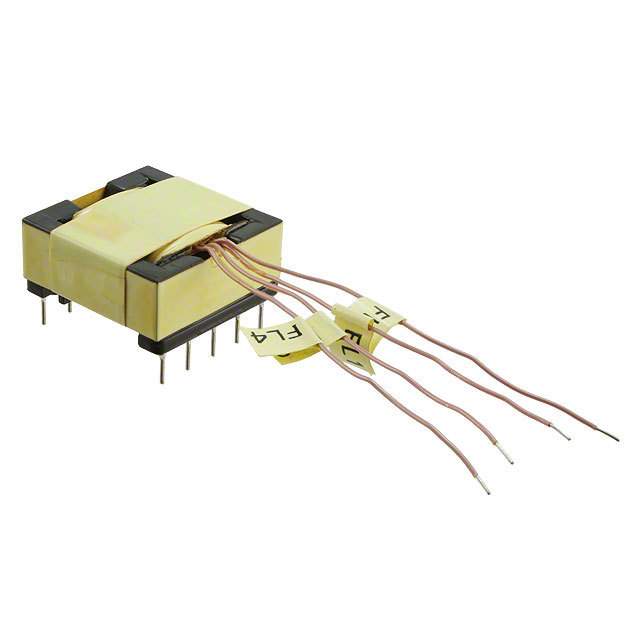

750311475
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-UNIT, MID-OLON
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : NCL30000
Chipset Manufacturer : On Semiconductor
Voltage - Primary : 127 ~ 431V
Voltage - Auxiliary : -
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 1.72mH @ 10kHz
Frequency : 39kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.060" L x 1.050" W (26.92mm x 26.67mm)
Height - Seated (Max) : 0.575" (14.60mm)
Footprint : 1.060" L x 1.050" W (26.92mm x 26.67mm)
Style : -
Packaging : Tray
Series : WE-UNIT, MID-OLON
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : NCL30000
Chipset Manufacturer : On Semiconductor
Voltage - Primary : 127 ~ 431V
Voltage - Auxiliary : -
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 1.72mH @ 10kHz
Frequency : 39kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 1.060" L x 1.050" W (26.92mm x 26.67mm)
Height - Seated (Max) : 0.575" (14.60mm)
Footprint : 1.060" L x 1.050" W (26.92mm x 26.67mm)
Style : -
0
45 in stock
750311486
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 12V
Voltage - Auxiliary : 4V @ 20mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 100µH @ 50kHz
Frequency : 50kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 12V
Voltage - Auxiliary : 4V @ 20mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 100µH @ 50kHz
Frequency : 50kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
445 in stock

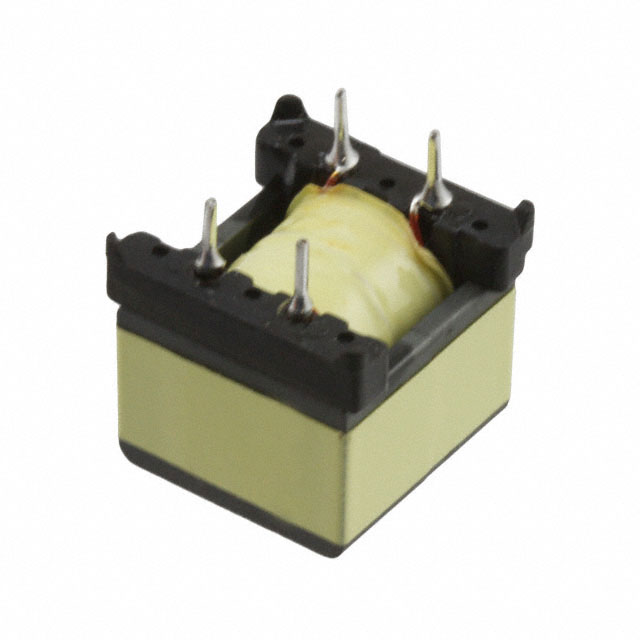

750311524
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : MID-LLIT
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : SSL2101
Chipset Manufacturer : NXP Semiconductors
Voltage - Primary : 230V
Voltage - Auxiliary : -
Voltage - Isolation : 1000Vrms
Inductance @ Frequency : 180µH @ 100kHz, 95µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Style : -
Packaging : Tray
Series : MID-LLIT
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : SSL2101
Chipset Manufacturer : NXP Semiconductors
Voltage - Primary : 230V
Voltage - Auxiliary : -
Voltage - Isolation : 1000Vrms
Inductance @ Frequency : 180µH @ 100kHz, 95µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Style : -
0
22 in stock

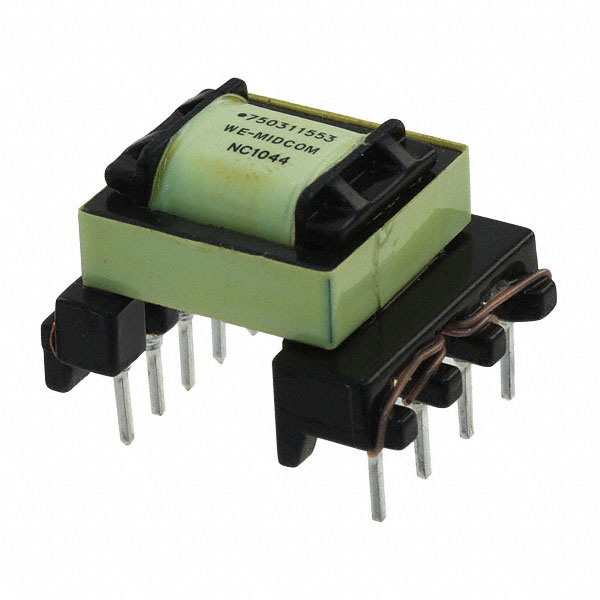

750311553
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Tray
Series : WE-FB, MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : LM3445
Chipset Manufacturer : National Semiconductor
Voltage - Primary : 115V
Voltage - Auxiliary : -
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 803.5µH @ 100kHz, 50.2µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.800" L x 0.960" W (20.32mm x 24.38mm)
Style : -
Packaging : Tray
Series : WE-FB, MID-OLTI
Part Status : Active
Type : For AC/DC Converters
Applications : LED Drivers, AC/DC SMPS
Intended Chipset : LM3445
Chipset Manufacturer : National Semiconductor
Voltage - Primary : 115V
Voltage - Auxiliary : -
Voltage - Isolation : 4500Vrms
Inductance @ Frequency : 803.5µH @ 100kHz, 50.2µH @ 100kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Size / Dimension : -
Height - Seated (Max) : 0.635" (16.13mm)
Footprint : 0.800" L x 0.960" W (20.32mm x 24.38mm)
Style : -
0
37 in stock

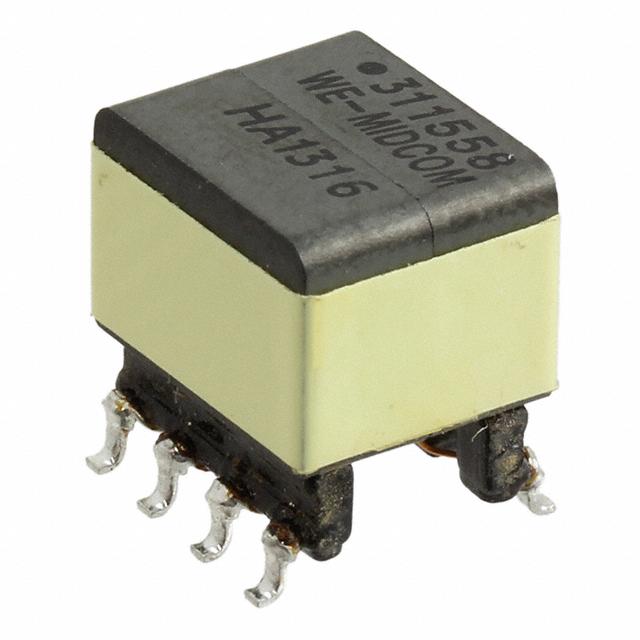

750311558
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 35 ~ 75V
Voltage - Auxiliary : 5V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 200 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.415" (10.54mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 35 ~ 75V
Voltage - Auxiliary : 5V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 300µH @ 10kHz
Frequency : 200 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.415" (10.54mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
264 in stock

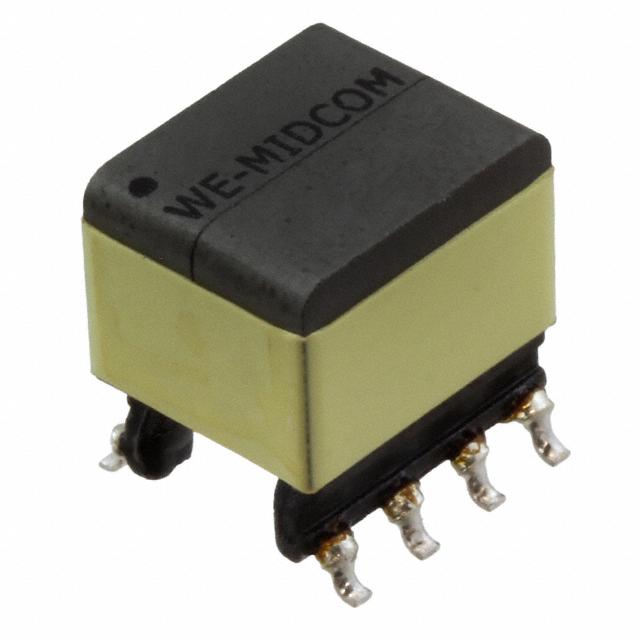

750311559
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 35 ~ 75V
Voltage - Auxiliary : 5V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 175µH @ 10kHz
Frequency : 200 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.415" (10.54mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB, MID-FLYLT
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT8300
Chipset Manufacturer : Linear Technology
Voltage - Primary : 35 ~ 75V
Voltage - Auxiliary : 5V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 175µH @ 10kHz
Frequency : 200 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.415" (10.54mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
300 in stock
750311564
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 10 ~ 40V
Voltage - Auxiliary : 8V @ 20mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 9.07µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 10 ~ 40V
Voltage - Auxiliary : 8V @ 20mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 9.07µH @ 10kHz
Frequency : 100kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.505" (12.83mm)
Footprint : 0.530" L x 0.699" W (13.46mm x 17.75mm)
Style : -
0
2386 in stock

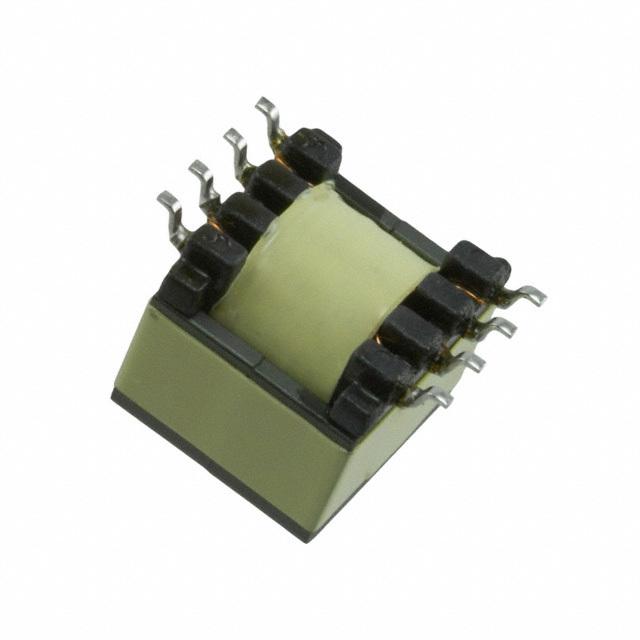

750311567
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 10 ~ 40V
Voltage - Auxiliary : 10V @ 20mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 7µH @ 250kHz
Frequency : 250kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.455" (11.56mm)
Footprint : 0.525" L x 0.600" W (13.34mm x 15.24mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 10 ~ 40V
Voltage - Auxiliary : 10V @ 20mA
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 7µH @ 250kHz
Frequency : 250kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.455" (11.56mm)
Footprint : 0.525" L x 0.600" W (13.34mm x 15.24mm)
Style : -
0
238 in stock

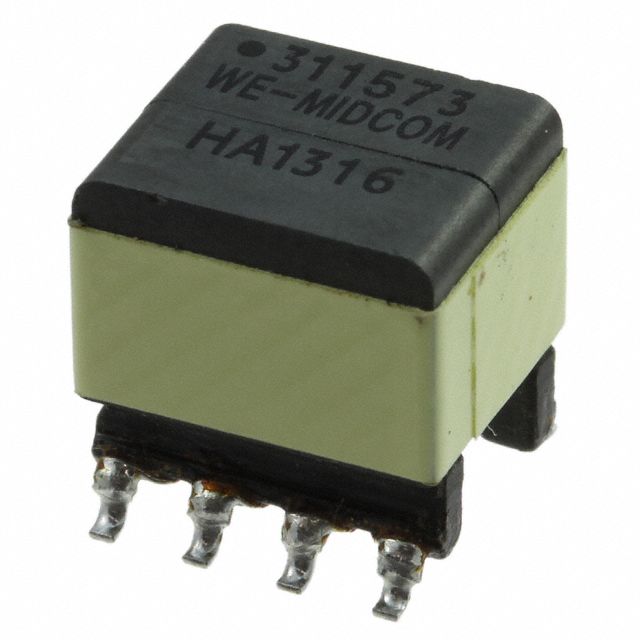

750311573
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3512
Chipset Manufacturer : Linear Technology
Voltage - Primary : 35 ~ 75V
Voltage - Auxiliary : 5V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 200µH @ 10kHz
Frequency : 200 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.69mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Active
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3512
Chipset Manufacturer : Linear Technology
Voltage - Primary : 35 ~ 75V
Voltage - Auxiliary : 5V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 200µH @ 10kHz
Frequency : 200 ~ 300kHz
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.420" (10.69mm)
Footprint : 0.385" L x 0.360" W (9.78mm x 9.14mm)
Style : -
0
100 in stock

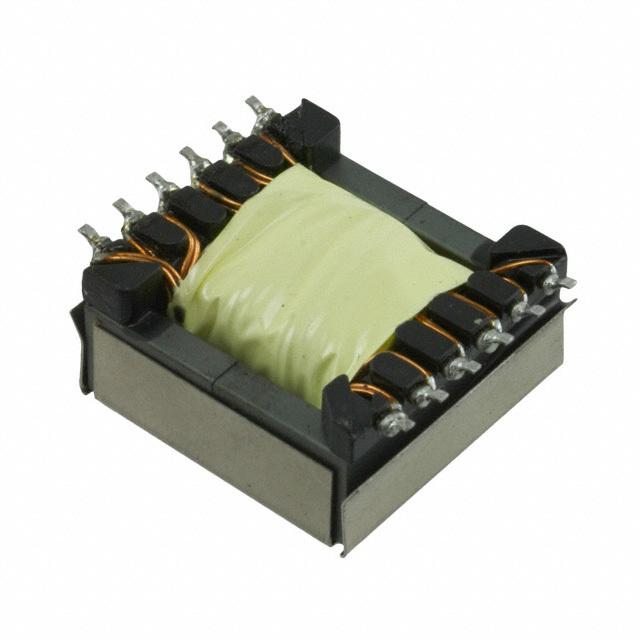

750311589
Midcom / Wurth Electronics
Manufacturer : Wurth Electronics Midcom
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 20 ~ 48V
Voltage - Auxiliary : 10V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 6µH @ 150kHz
Frequency : 150kHz
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-FB
Part Status : Discontinued at
Type : For DC/DC Converters
Applications : Flyback Converters
Intended Chipset : LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer : Linear Technology
Voltage - Primary : 20 ~ 48V
Voltage - Auxiliary : 10V
Voltage - Isolation : 1500Vrms
Inductance @ Frequency : 6µH @ 150kHz
Frequency : 150kHz
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : -
Height - Seated (Max) : 0.544" (13.82mm)
Footprint : 1.064" L x 1.272" W (27.03mm x 32.31mm)
Style : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
