Part Number

Manufacturer

Description

Unit Price

In Stock

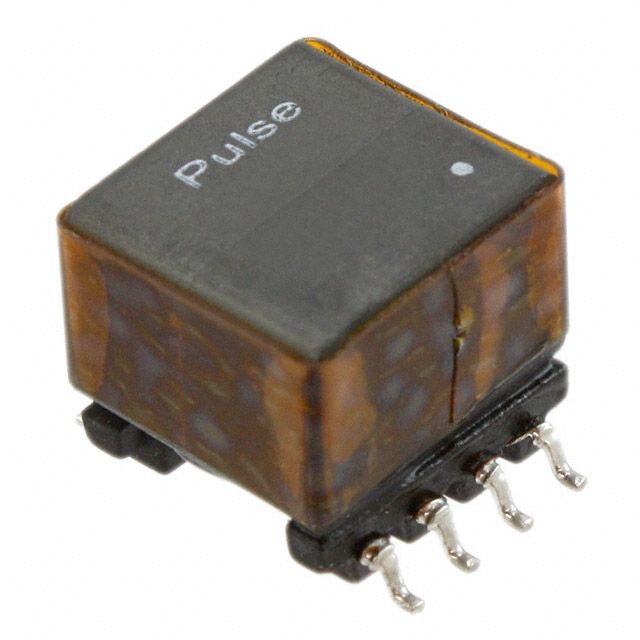

PA1283NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 155µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.515" L x 0.600" W (13.08mm x 15.24mm)
Height - Seated (Max) : 0.451" (11.45mm)
Operating Temperature : -40°C ~ 125°C

388 in stock

PA1284NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EP10
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 155µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:0.682:0.682
Mounting Type : Surface Mount
Size / Dimension : 0.515" L x 0.600" W (13.08mm x 15.24mm)
Height - Seated (Max) : 0.451" (11.45mm)
Operating Temperature : -40°C ~ 125°C

1180 in stock

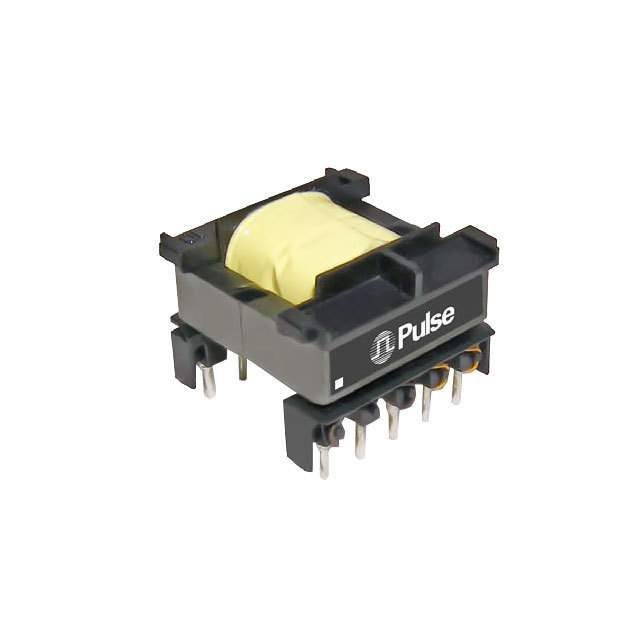

PA1297NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Transformer Type : -
Inductance : 380µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Through Hole
Size / Dimension : 1.100" L x 1.150" W (27.94mm x 29.21mm)
Height - Seated (Max) : 0.820" (20.82mm)
Operating Temperature : -40°C ~ 130°C

191 in stock

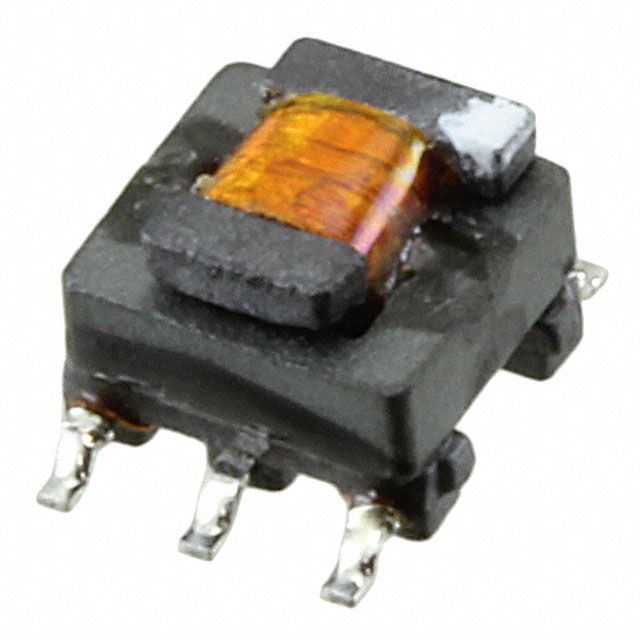

PA1323NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : 600µH
Energy Time (E.T.) : 21.7V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.280" L x 0.375" W (7.11mm x 9.52mm)
Height - Seated (Max) : 0.210" (5.33mm)
Operating Temperature : -40°C ~ 130°C

221 in stock

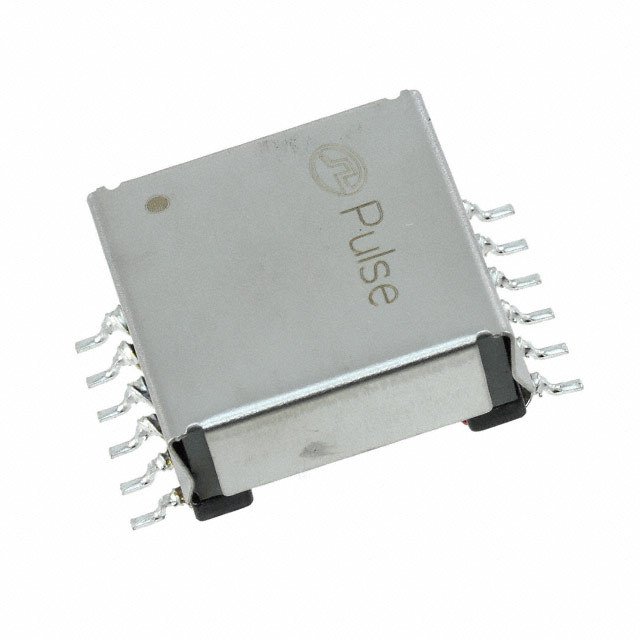

PA1736NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : 20.5µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Max) : 0.450" (11.43mm)
Operating Temperature : -40°C ~ 125°C

859 in stock

PA1736NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 20.5µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Max) : 0.450" (11.43mm)
Operating Temperature : -40°C ~ 125°C

597 in stock

PA1836NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : 4.5µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Max) : 0.450" (11.43mm)
Operating Temperature : -40°C ~ 125°C

1612 in stock

PA1836NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 4.5µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Max) : 0.450" (11.43mm)
Operating Temperature : -40°C ~ 125°C

1300 in stock

PA1837NL

Pulse Electronics Corporation

450 in stock

PA2001NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 403µH
Energy Time (E.T.) : 12V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) : 0.098" (2.49mm)
Operating Temperature : -40°C ~ 130°C

1416 in stock

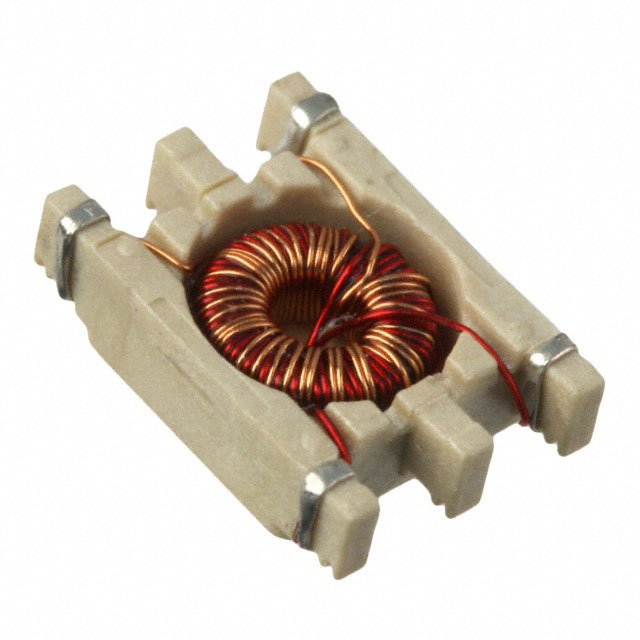

PA2001NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 403µH
Energy Time (E.T.) : 12V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.340" L x 0.265" W (8.64mm x 6.73mm)
Height - Seated (Max) : 0.098" (2.49mm)
Operating Temperature : -40°C ~ 130°C

3938 in stock

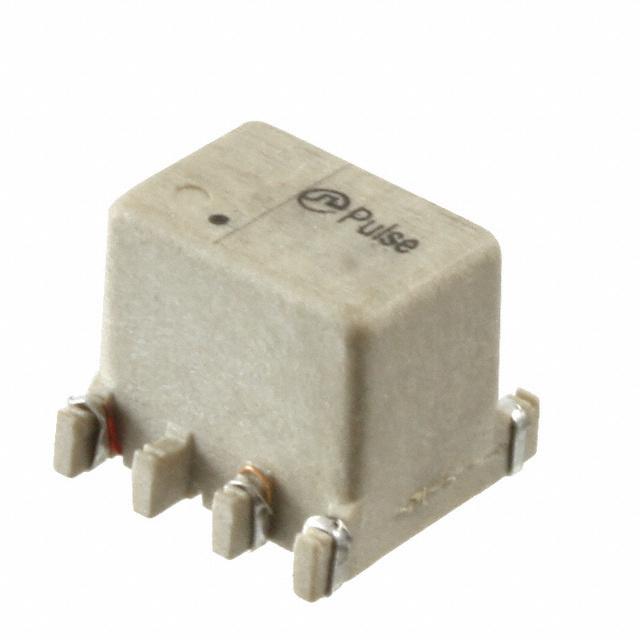

PA2002NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 1.8mH
Energy Time (E.T.) : 60V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) : 0.300" (7.62mm)
Operating Temperature : -40°C ~ 130°C

1363 in stock
