Pulse Transformers Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

MGDT100125LF

Dale / Vishay

Manufacturer : Vishay Dale
Packaging : -
Series : -
Part Status : Active
Transformer Type : Gate Drive
Inductance : 240µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1.25:1.25
Mounting Type : Through Hole
Size / Dimension : 0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max) : 0.450" (11.43mm)
Operating Temperature : -55°C ~ 125°C

125 in stock

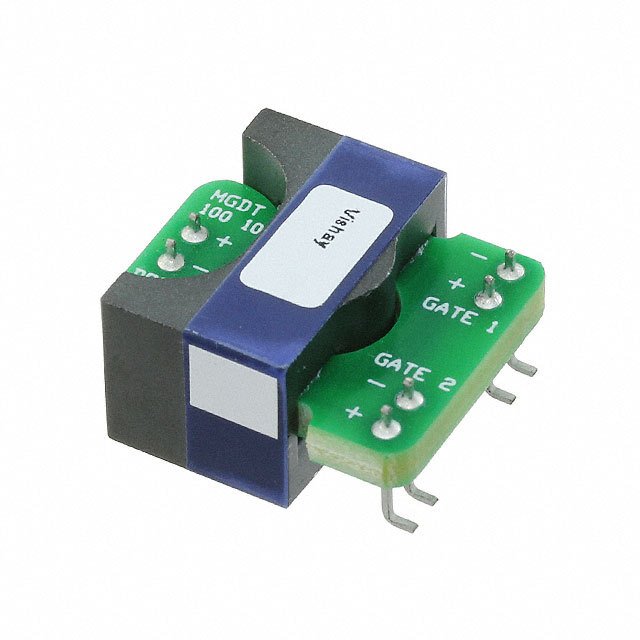

MGDT100125-SM

Dale / Vishay

Manufacturer : Vishay Dale
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : Gate Drive
Inductance : 240µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1.25:1.25
Mounting Type : Surface Mount
Size / Dimension : 0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max) : 0.450" (11.43mm)
Operating Temperature : -55°C ~ 125°C

145 in stock

MUJ-103A-500

AlfaMag Electronics (AMGIS)

Manufacturer : Amgis, LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 25mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1:2:2
Mounting Type : Surface Mount
Size / Dimension : 0.504" L x 0.346" W (12.80mm x 8.80mm)
Height - Seated (Max) : 0.246" (6.25mm)
Operating Temperature : -40°C ~ 85°C

3267 in stock

P0544NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 3.3mH
Energy Time (E.T.) : 45.1V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) : 0.300" (7.62mm)
Operating Temperature : -40°C ~ 130°C

1013 in stock

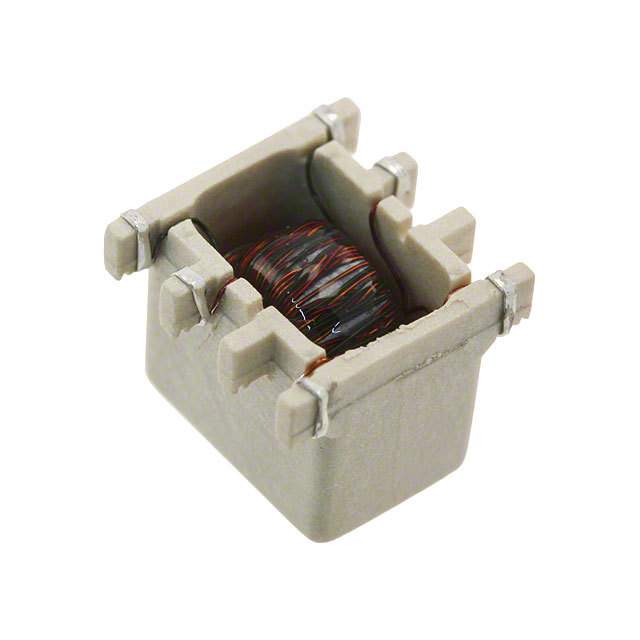

P0544NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : -
Inductance : 3.3mH
Energy Time (E.T.) : 45.1V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) : 0.300" (7.62mm)
Operating Temperature : -40°C ~ 130°C

4132 in stock

P0584NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Transformer Type : -
Inductance : 450µH
Energy Time (E.T.) : 95V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 0.810" L x 0.480" W (20.57mm x 12.19mm)
Height - Seated (Max) : 0.750" (19.05mm)
Operating Temperature : -40°C ~ 125°C

7503 in stock

P0585NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : -
Inductance : 450µH
Energy Time (E.T.) : 95V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 0.810" L x 0.480" W (20.57mm x 12.19mm)
Height - Seated (Max) : 0.750" (19.05mm)
Operating Temperature : -40°C ~ 125°C

1433 in stock

P0926NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : 300µH
Energy Time (E.T.) : 23.8V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.260" L x 0.315" W (6.60mm x 8.00mm)
Height - Seated (Max) : 0.210" (5.33mm)
Operating Temperature : -40°C ~ 130°C

2261 in stock

P5000NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:0.07:0.07
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.630" W (18.20mm x 16.00mm)
Height - Seated (Max) : 0.697" (17.70mm)
Operating Temperature : -30°C ~ 110°C

100 in stock

P5001NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:0.1:0.1
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.630" W (18.20mm x 16.00mm)
Height - Seated (Max) : 0.697" (17.70mm)
Operating Temperature : -30°C ~ 110°C

97 in stock

P5004NL

Pulse Electronics Corporation

72 in stock

P5005NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:0.1:0.1
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.630" W (18.20mm x 16.00mm)
Height - Seated (Max) : 0.697" (17.70mm)
Operating Temperature : -30°C ~ 110°C

73 in stock
