Pulse Transformers Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

HM42-30002LFTR

TT Electronics

Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM42
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 980µH
Energy Time (E.T.) : 30.2V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.340" L x 0.460" W (8.64mm x 11.68mm)
Height - Seated (Max) : 0.161" (4.10mm)
Operating Temperature : -40°C ~ 125°C

100 in stock

HM42-40002LFTR

TT Electronics

Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM42
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 1.4mH
Energy Time (E.T.) : 49.1V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.346" W (9.20mm x 8.80mm)
Height - Seated (Max) : 0.307" (7.80mm)
Operating Temperature : -40°C ~ 125°C

100 in stock

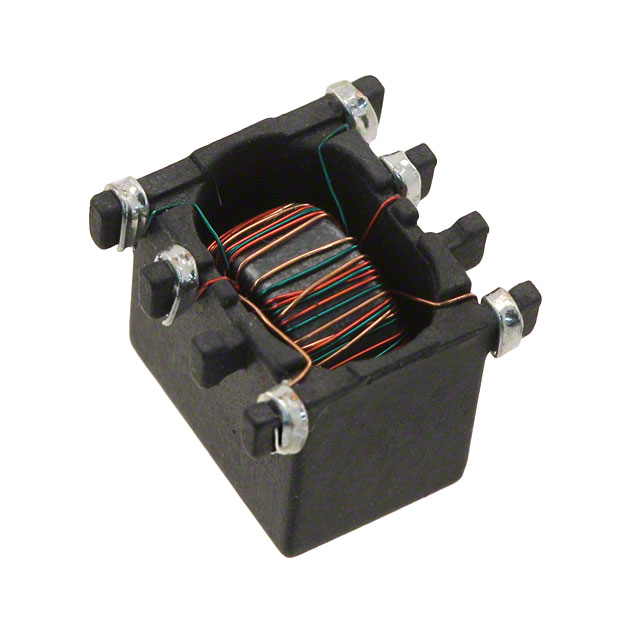

HM42-40003LFTR

TT Electronics

Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM42
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 1.2mH
Energy Time (E.T.) : 45.4V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.346" W (9.20mm x 8.80mm)
Height - Seated (Max) : 0.307" (7.80mm)
Operating Temperature : -40°C ~ 125°C

100 in stock

HM42-40004LFTR

TT Electronics

Manufacturer : TT Electronics/BI Magnetics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : HM42
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 1.2mH
Energy Time (E.T.) : 45.4V µS
Turns Ratio - Primary:Secondary : 2:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.346" W (9.20mm x 8.80mm)
Height - Seated (Max) : 0.307" (7.80mm)
Operating Temperature : -40°C ~ 125°C

100 in stock

HM5004EFNL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : LAN 10/100/1000 Base-T
Inductance : 350µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.690" L x 0.600" W (17.53mm x 15.24mm)
Height - Seated (Max) : 0.225" (5.72mm)
Operating Temperature : -40°C ~ 105°C

120 in stock

HM5004EFNLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Discontinued at
Transformer Type : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -

130 in stock

HM5149NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : LAN 10/100/1000 Base-T
Inductance : 360µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.700" L x 0.390" W (17.78mm x 9.91mm)
Height - Seated (Max) : 0.126" (3.20mm)
Operating Temperature : -40°C ~ 125°C

2258 in stock

HM5149NLT

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Transformer Type : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -

245 in stock

HM6098FNL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Transformer Type : LAN 10/100/1000 Base-T
Inductance : 120µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type : Surface Mount
Size / Dimension : 0.715" L x 0.595" W (18.16mm x 15.11mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : -40°C ~ 105°C

91 in stock

HMU2102NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : 150µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.583" L x 0.461" W (14.81mm x 11.70mm)
Height - Seated (Max) : 0.192" (4.88mm)
Operating Temperature : -

833 in stock

HMU2102NLT

Pulse Electronics Corporation

875 in stock

HMU2103NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Network
Packaging : -
Series : -
Part Status : Active
Transformer Type : -
Inductance : 150µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Mounting Type : Surface Mount
Size / Dimension : 0.300" L x 0.365" W (7.62mm x 9.27mm)
Height - Seated (Max) : 0.225" (5.72mm)
Operating Temperature : -

768 in stock
