Welcome to Weijie Semiconductor
- Transformers
- Power Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
1182M15
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 5.34A, Series 2.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 5.34A, Series 2.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
0
6 in stock
1182M18
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
7 in stock
1182M22
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 5.46A, Series 2.73A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 5.46A, Series 2.73A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
6 in stock
1182M240
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 2.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 2.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 625 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 60.45mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
0
4 in stock
1182M30
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 5.34A, Series 2.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3.8 lbs (1.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 5.34A, Series 2.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3.8 lbs (1.7kg)
0
7 in stock
1182M9
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 1.5 lbs (680.4g)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 1.5 lbs (680.4g)
0
8 in stock

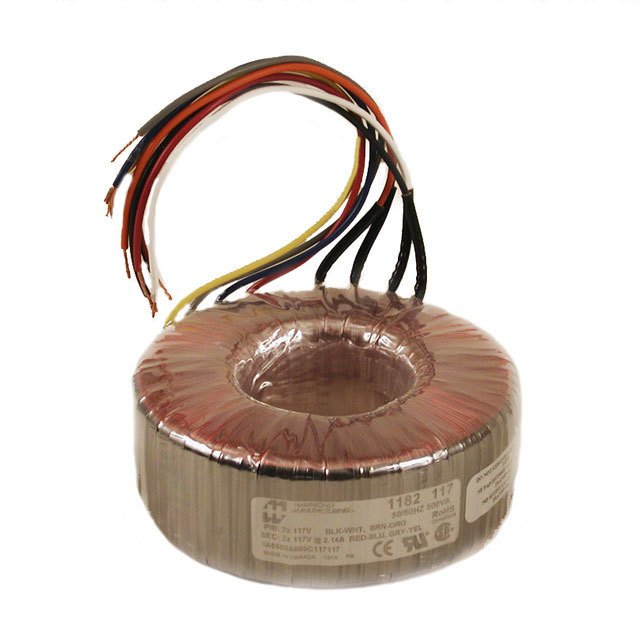

1182N117
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 4.28A, Series 2.14A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 4.28A, Series 2.14A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
0
2 in stock
1182N15
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
4 in stock
1182N18
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
5 in stock
1182N22
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 7.28A, Series 3.64A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 22V, Series 44V
Current - Output (Max) : Parallel 7.28A, Series 3.64A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
7 in stock
1182N240
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 3.13A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 3.13A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
0
100 in stock
1182N6
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 1.5 lbs (680.4g)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 8.34A, Series 4.17A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 1.5 lbs (680.4g)
0
6 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
