TX6-60V
Bourns, Inc.
Manufacturer : Bourns Inc.
Series : TX
Part Status : Obsolete
Type : Semi-Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 100mA, Series 50mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 40.64mm L x 39.62mm W
Height - Seated (Max) : 21.59mm
Voltage - Isolation : 2000Vrms
Weight : -
Series : TX
Part Status : Obsolete
Type : Semi-Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 100mA, Series 50mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 40.64mm L x 39.62mm W
Height - Seated (Max) : 21.59mm
Voltage - Isolation : 2000Vrms
Weight : -
0
100 in stock
TX6-8V
Bourns, Inc.
Manufacturer : Bourns Inc.
Series : TX
Part Status : Obsolete
Type : Semi-Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 750mA, Series 375mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 40.64mm L x 39.62mm W
Height - Seated (Max) : 21.59mm
Voltage - Isolation : 2000Vrms
Weight : -
Series : TX
Part Status : Obsolete
Type : Semi-Toroidal
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 750mA, Series 375mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 40.64mm L x 39.62mm W
Height - Seated (Max) : 21.59mm
Voltage - Isolation : 2000Vrms
Weight : -
0
100 in stock

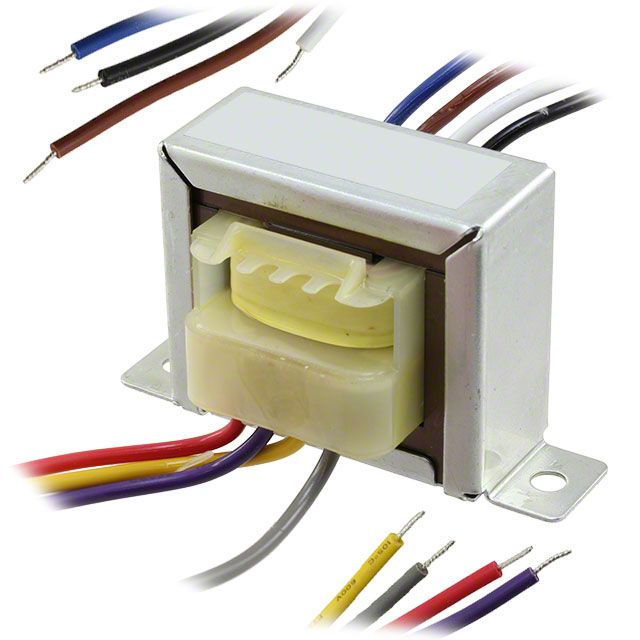

VPL10-1000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 71.44mm W
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 3500Vrms
Weight : 0.7 lb (317.51g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 71.44mm W
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 3500Vrms
Weight : 0.7 lb (317.51g)
0
60 in stock

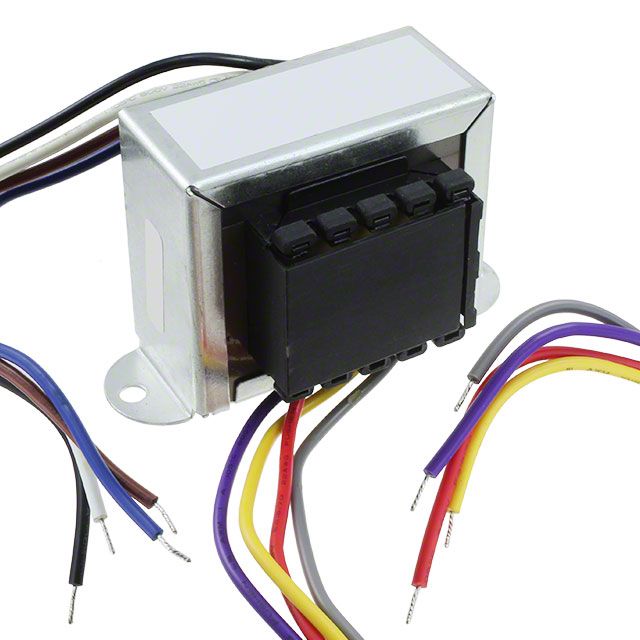

VPL10-2500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 2.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 53.98mm L x 82.55mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 2.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 53.98mm L x 82.55mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
0
16 in stock

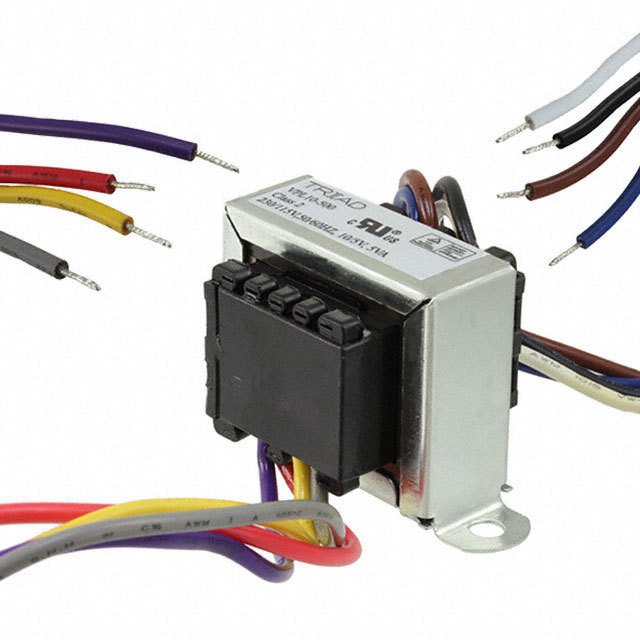

VPL10-500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 60.33mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 3500Vrms
Weight : 0.4 lb (181.44g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 60.33mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 3500Vrms
Weight : 0.4 lb (181.44g)
0
14 in stock

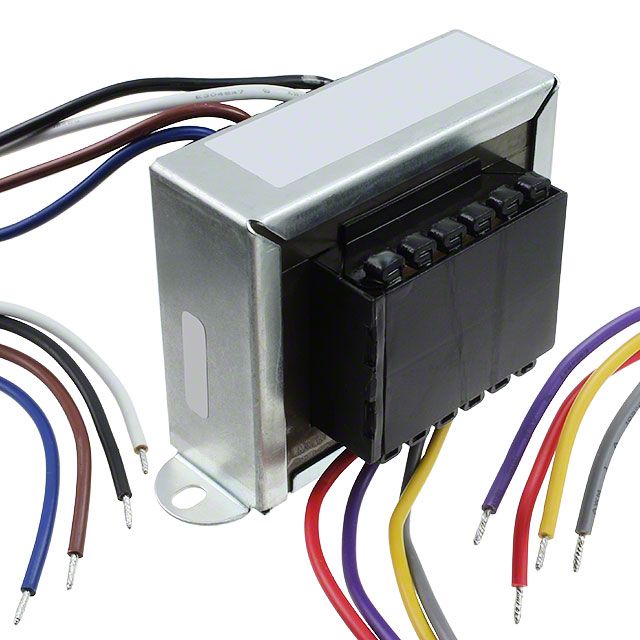

VPL10-5000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 65.09mm
Voltage - Isolation : 3500Vrms
Weight : 2.3 lbs (1kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 10V
Current - Output (Max) : 5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 65.09mm
Voltage - Isolation : 3500Vrms
Weight : 2.3 lbs (1kg)
0
2 in stock

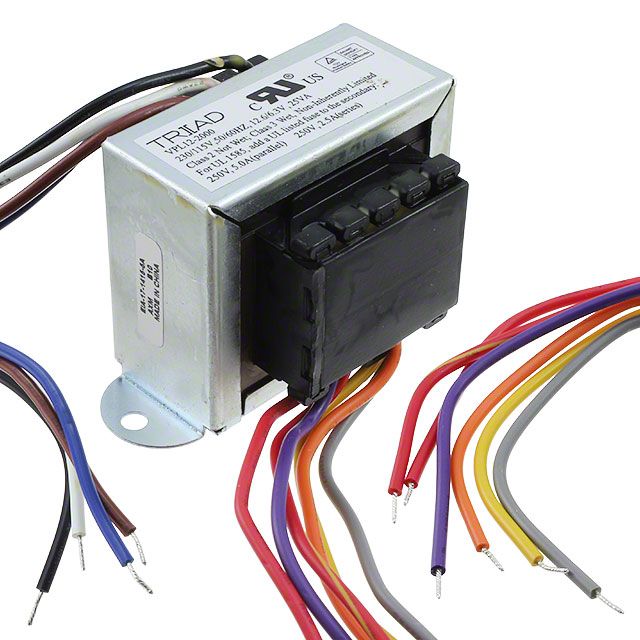

VPL12-2000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 1.98A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 53.98mm L x 82.55mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 1.98A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 53.98mm L x 82.55mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
0
671 in stock

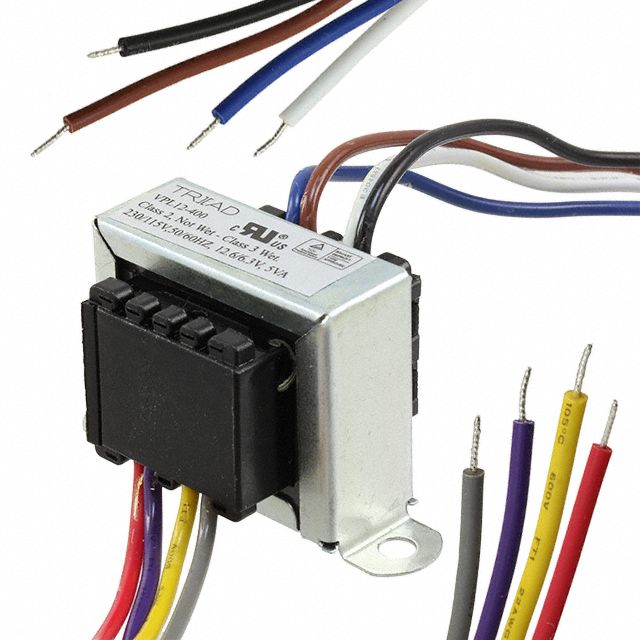

VPL12-400
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 390mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 60.33mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 3500Vrms
Weight : 0.4 lb (181.44g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 390mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 60.33mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 3500Vrms
Weight : 0.4 lb (181.44g)
0
65 in stock

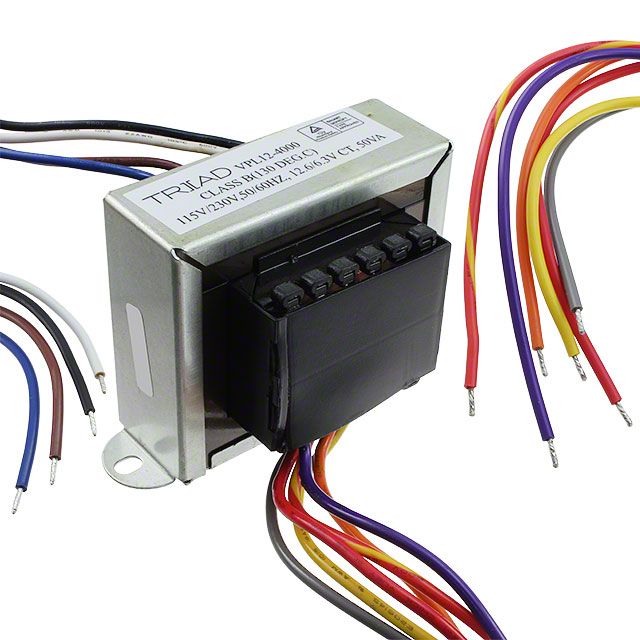

VPL12-4000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 3.97A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 65.09mm
Voltage - Isolation : 3500Vrms
Weight : 2.3 lbs (1kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 3.97A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 65.09mm
Voltage - Isolation : 3500Vrms
Weight : 2.3 lbs (1kg)
0
445 in stock

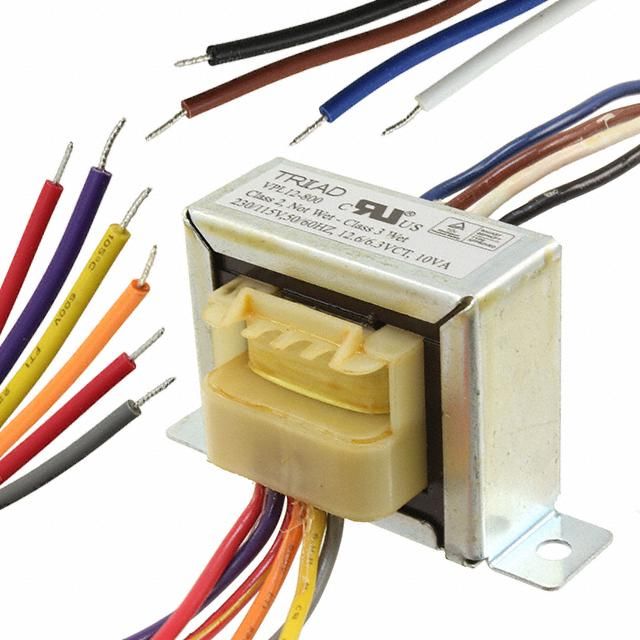

VPL12-800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 790mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 71.44mm W
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 3500Vrms
Weight : 0.7 lb (317.51g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 790mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 71.44mm W
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 3500Vrms
Weight : 0.7 lb (317.51g)
0
14 in stock
VPL14-360
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 14V
Current - Output (Max) : 0.36A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 60.33mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 3500Vrms
Weight : 0.4 lb (181.44g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 14V
Current - Output (Max) : 0.36A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 60.33mm W
Height - Seated (Max) : 36.52mm
Voltage - Isolation : 3500Vrms
Weight : 0.4 lb (181.44g)
0
69 in stock
VPL16-1600
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 1.57A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 53.98mm L x 82.55mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 16V
Current - Output (Max) : 1.57A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 53.98mm L x 82.55mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
0
11 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
