- Transformers
- Current Sense Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
P8207NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P820X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 980µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:70
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 4.75 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P820X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 980µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:70
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 4.75 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
0
2114 in stock
P8208NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Alternate Packaging
Series : P820X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
Packaging : Tray
Alternate Packaging
Series : P820X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
0
1095 in stock

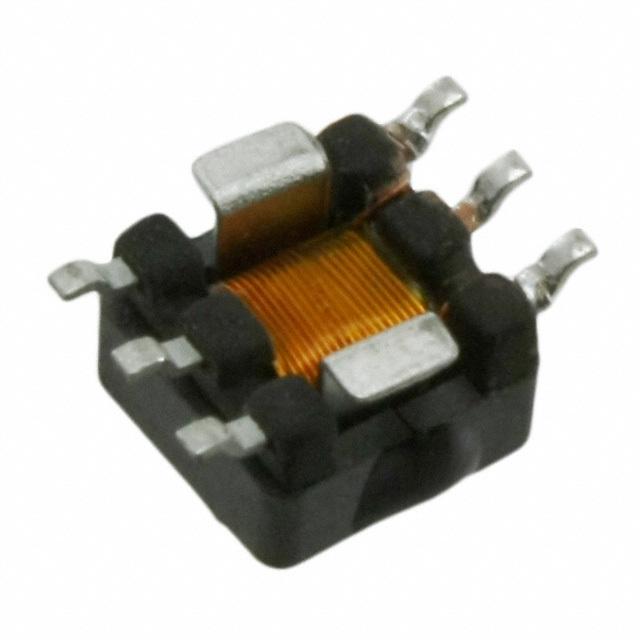

P8208NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P820X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : P820X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
0
17638 in stock

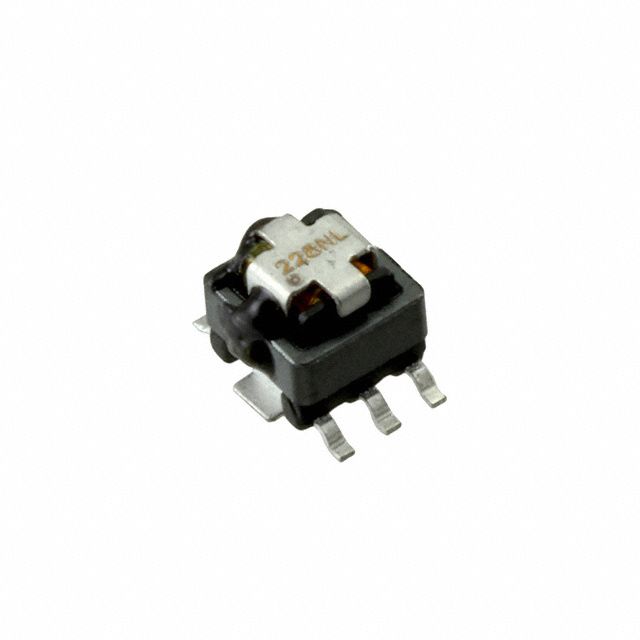

P8228NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : P822X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 10A
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.190" (4.83mm)
Termination Style : Gull Wing
Packaging : Tray
Series : P822X
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 10A
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 6 mOhm Primary, 5.5 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.190" (4.83mm)
Termination Style : Gull Wing
0
306 in stock
PA0368.050NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 4A
Inductance : 1.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:50
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 900 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.285" L x 0.352" W (7.25mm x 8.25mm)
Height - Seated (Max) : 0.124" (3.15mm)
Termination Style : -
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 4A
Inductance : 1.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:50
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 900 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.285" L x 0.352" W (7.25mm x 8.25mm)
Height - Seated (Max) : 0.124" (3.15mm)
Termination Style : -
0
1462 in stock

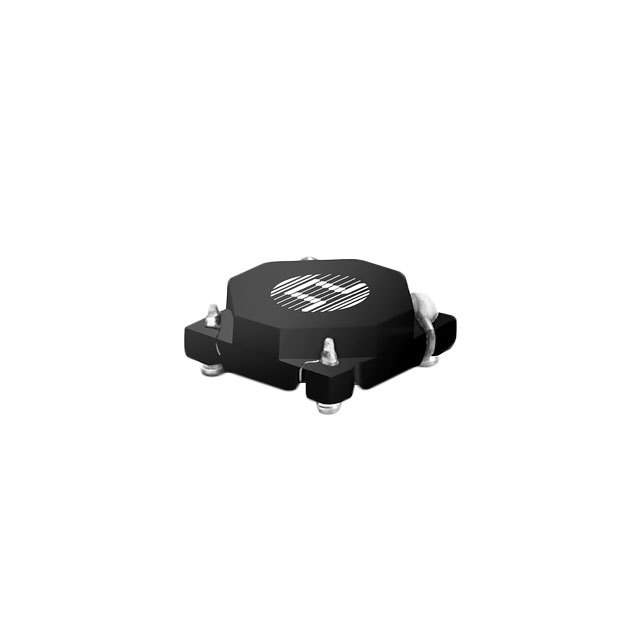

PA0368.050NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PA0368NL
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 1.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:50
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 900 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.325" L x 0.286" W (8.25mm x 7.25mm)
Height - Seated (Max) : 0.134" (3.40mm)
Termination Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PA0368NL
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 1.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:50
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 900 mOhm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.325" L x 0.286" W (8.25mm x 7.25mm)
Height - Seated (Max) : 0.134" (3.40mm)
Termination Style : -
0
2144 in stock
PA0368.070NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 4A
Inductance : 3.3mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:70
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 1.2 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.285" L x 0.352" W (7.25mm x 8.25mm)
Height - Seated (Max) : 0.124" (3.15mm)
Termination Style : -
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 4A
Inductance : 3.3mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:70
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 1.2 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.285" L x 0.352" W (7.25mm x 8.25mm)
Height - Seated (Max) : 0.124" (3.15mm)
Termination Style : -
0
1517 in stock
PA0368.100NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 4A
Inductance : 6.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 1.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.285" L x 0.352" W (7.25mm x 8.25mm)
Height - Seated (Max) : 0.124" (3.15mm)
Termination Style : -
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 4A
Inductance : 6.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 1.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.285" L x 0.352" W (7.25mm x 8.25mm)
Height - Seated (Max) : 0.124" (3.15mm)
Termination Style : -
0
1423 in stock
PA0368.100NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PA0368NL
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 6.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 1.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.325" L x 0.286" W (8.25mm x 7.25mm)
Height - Seated (Max) : 0.134" (3.40mm)
Termination Style : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PA0368NL
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : -
Inductance : 6.7mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:100
Current Ratio : -
DC Resistance (DCR) : 4 mOhm Primary, 1.6 Ohm Secondary
Ratings : -
Mounting Type : Surface Mount
Size / Dimension : 0.325" L x 0.286" W (8.25mm x 7.25mm)
Height - Seated (Max) : 0.134" (3.40mm)
Termination Style : -
0
1918 in stock
PA1005.020QNL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 20A
Inductance : 80µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:20
Current Ratio : -
DC Resistance (DCR) : 0.75 mOhm Primary, 550 mOhm Secondary
Ratings : AEC-Q200
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 20A
Inductance : 80µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:20
Current Ratio : -
DC Resistance (DCR) : 0.75 mOhm Primary, 550 mOhm Secondary
Ratings : AEC-Q200
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
0
572 in stock

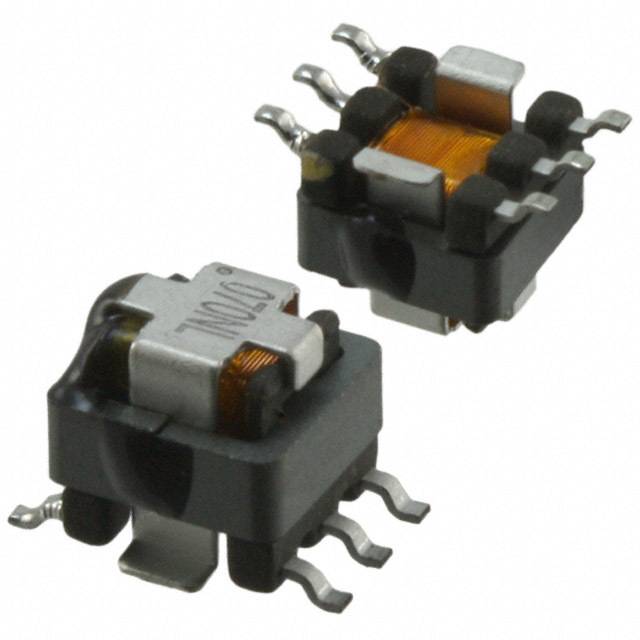

PA1005.030QNL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 20A
Inductance : 180µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:30
Current Ratio : -
DC Resistance (DCR) : 0.75 mOhm Primary, 870 mOhm Secondary
Ratings : AEC-Q200
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 20A
Inductance : 180µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:30
Current Ratio : -
DC Resistance (DCR) : 0.75 mOhm Primary, 870 mOhm Secondary
Ratings : AEC-Q200
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
0
1625 in stock
PA1005.040QNL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 20A
Inductance : 320µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:40
Current Ratio : -
DC Resistance (DCR) : 0.75 mOhm Primary, 1.14 Ohm Secondary
Ratings : AEC-Q200
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
Packaging : Tray
Series : -
Part Status : Active
Frequency Range : 50kHz ~ 1MHz
Type : Invasive
Current Rating : 20A
Inductance : 320µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:40
Current Ratio : -
DC Resistance (DCR) : 0.75 mOhm Primary, 1.14 Ohm Secondary
Ratings : AEC-Q200
Mounting Type : Surface Mount
Size / Dimension : 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) : 0.217" (5.50mm)
Termination Style : Gull Wing
0
154 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
