Current Sense Transformers Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

CST306-2T

Triad Magnetics

Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 14mH
Energy Time (E.T.) : 1000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 100CT:1
DC Resistance (DCR) : 1.55 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin

296 in stock

CST306-3A

Triad Magnetics

Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 55mH
Energy Time (E.T.) : 2000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 200:1
DC Resistance (DCR) : 3.75 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin

2657 in stock

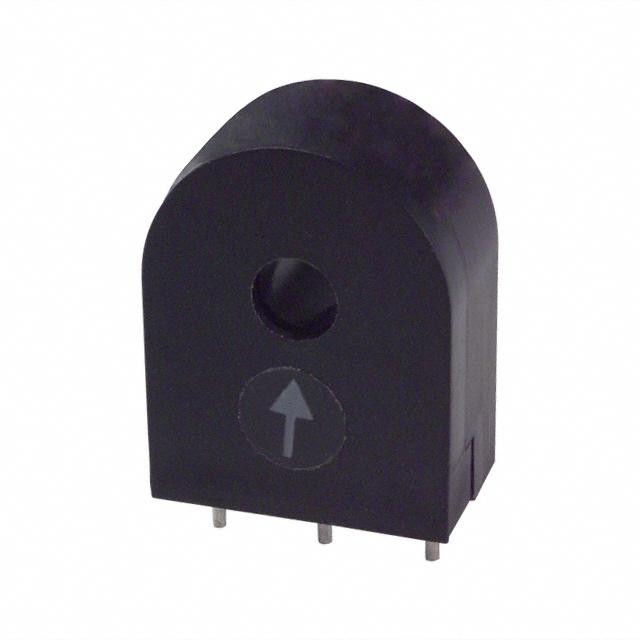

CST306-3T

Triad Magnetics

Manufacturer : Triad Magnetics
Packaging : Bulk
Series : CST
Part Status : Active
Frequency Range : 20kHz ~ 200kHz
Type : Non-Invasive (Solid Core)
Current Rating : 25A
Inductance : 55mH
Energy Time (E.T.) : 2000V µS
Turns Ratio - Primary:Secondary : -
Current Ratio : 200CT:1
DC Resistance (DCR) : 3.75 Ohm Max
Ratings : -
Mounting Type : Through Hole
Size / Dimension : 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) : 0.915" (23.24mm)
Termination Style : PC Pin

483 in stock

CT004001

Red Lion Controls

Manufacturer : Red Lion Controls
Packaging : Bulk
Series : -
Part Status : Active
Frequency Range : -
Type : -
Current Rating : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : -
DC Resistance (DCR) : -
Ratings : -
Mounting Type : -
Size / Dimension : 1.575" L x 0.394" W (40.00mm x 10.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Termination Style : -

100 in stock

CT005001

Red Lion Controls

Manufacturer : Red Lion Controls
Packaging : Bulk
Series : -
Part Status : Active
Frequency Range : -
Type : -
Current Rating : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : -
DC Resistance (DCR) : -
Ratings : -
Mounting Type : -
Size / Dimension : 2.402" L x 2.000" W (61.00mm x 50.80mm)
Height - Seated (Max) : 2.669" (67.80mm)
Termination Style : -

100 in stock

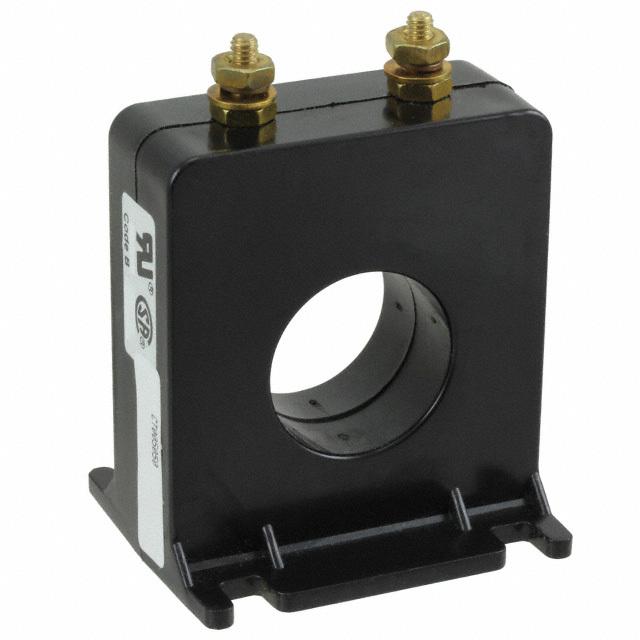

CT005050

Red Lion Controls

Manufacturer : Red Lion Controls
Packaging : Bulk
Series : -
Part Status : Active
Frequency Range : -
Type : -
Current Rating : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : -
DC Resistance (DCR) : -
Ratings : -
Mounting Type : -
Size / Dimension : 2.402" L x 2.000" W (61.00mm x 50.80mm)
Height - Seated (Max) : 2.669" (67.80mm)
Termination Style : -

5 in stock

CT-0050-D10

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : -
Series : -
Part Status : Active
Frequency Range : -
Type : Non-Invasive (Solid Core)
Current Rating : 50A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 50:5
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Free Hanging (In-Line)
Size / Dimension : 2.461" Dia (62.50mm)
Height - Seated (Max) : -
Termination Style : Wire Leads

1 in stock

CT-0050-F10

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : -
Series : CT
Part Status : Active
Frequency Range : -
Type : Non-Invasive (Solid Core)
Current Rating : 50A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 50:5
DC Resistance (DCR) : -
Ratings : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Terminal Block

100 in stock

CT-0075-D10

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : -
Series : CT
Part Status : Active
Frequency Range : -
Type : Non-Invasive (Solid Core)
Current Rating : 75A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 75:5
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Free Hanging (In-Line)
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Wire Leads

100 in stock

CT-0100-D10

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : -
Series : CT
Part Status : Active
Frequency Range : -
Type : Non-Invasive (Solid Core)
Current Rating : 100A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 100:5
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Free Hanging (In-Line)
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Wire Leads

100 in stock

CT-0100-F10

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : -
Series : CT
Part Status : Active
Frequency Range : -
Type : Non-Invasive (Solid Core)
Current Rating : 100A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 100:5
DC Resistance (DCR) : -
Ratings : -
Mounting Type : -
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Terminal Block

100 in stock

CT-0150-D10

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : -
Series : CT
Part Status : Active
Frequency Range : -
Type : Non-Invasive (Solid Core)
Current Rating : 150A
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : 150:5
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Free Hanging (In-Line)
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Wire Leads

100 in stock
