- Transformers
- Audio Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock

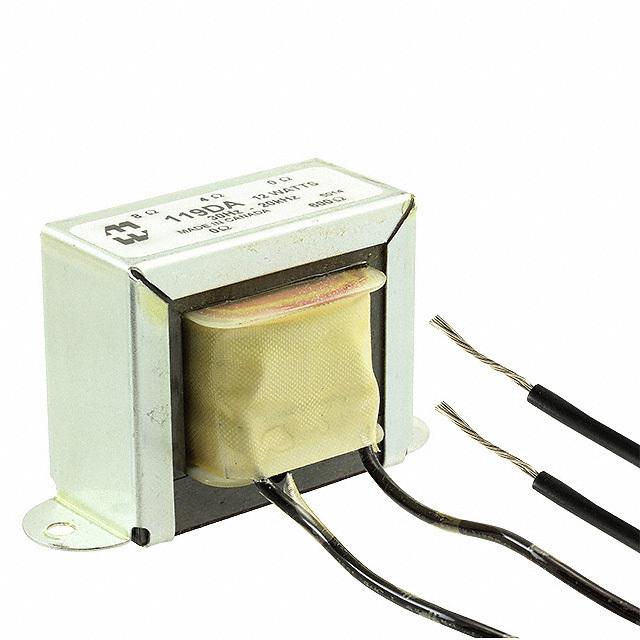

119DA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 4, 8
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 30Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 12W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.280" L x 2.350" W (83.31mm x 59.69mm)
Height - Seated (Max) : 2.000" (50.80mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 4, 8
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 30Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 12W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.280" L x 2.350" W (83.31mm x 59.69mm)
Height - Seated (Max) : 2.000" (50.80mm)
Termination Style : Wire Leads
0
31 in stock
119Y100
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 70V
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 3.130" W (88.90mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 70V
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 3.130" W (88.90mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
7 in stock
119Y250
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 70V
Insertion Loss : -
Return Loss : -
Power Level : 250W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 70V
Insertion Loss : -
Return Loss : -
Power Level : 250W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
6 in stock
119Y30
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V, 25V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 25V, 70V
Insertion Loss : -
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.250" L x 4.030" W (57.15mm x 102.36mm)
Height - Seated (Max) : 2.630" (66.80mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V, 25V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 25V, 70V
Insertion Loss : -
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.250" L x 4.030" W (57.15mm x 102.36mm)
Height - Seated (Max) : 2.630" (66.80mm)
Termination Style : Wire Leads
0
10 in stock

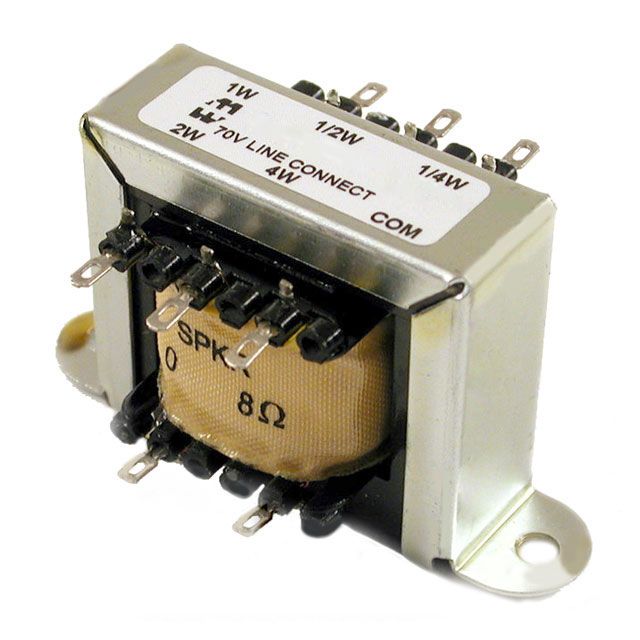

119Y60
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V, 25V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 25V, 70V
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 119
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 16, 8
Impedance - Secondary (Ohms) : 70V, 25V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Sound Distribution
Frequency Range : 50Hz ~ 10kHz
Frequency Response : -
Voltage - Isolation : 25V, 70V
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
5 in stock

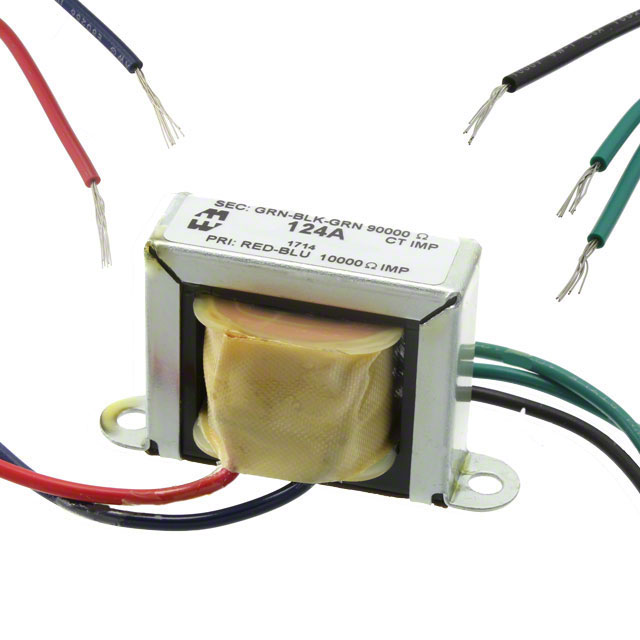

124A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:3
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 90kCT
DC Resistance (DCR) - Primary : 405 Ohm
DC Resistance (DCR) - Secondary : 1.525 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.380" L x 1.350" W (60.45mm x 34.29mm)
Height - Seated (Max) : 1.430" (36.32mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:3
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 90kCT
DC Resistance (DCR) - Primary : 405 Ohm
DC Resistance (DCR) - Secondary : 1.525 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.380" L x 1.350" W (60.45mm x 34.29mm)
Height - Seated (Max) : 1.430" (36.32mm)
Termination Style : Wire Leads
0
6 in stock

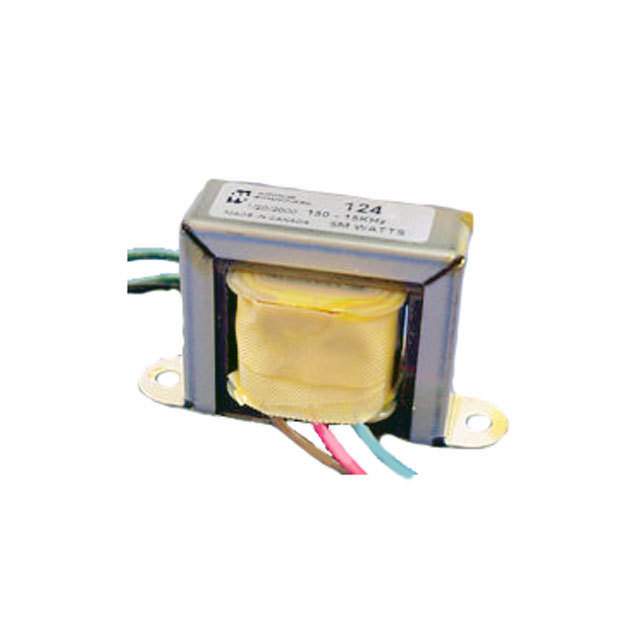

124B
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:3
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 90kCT
DC Resistance (DCR) - Primary : 405 Ohm
DC Resistance (DCR) - Secondary : 1.525 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.380" L x 1.350" W (60.45mm x 34.29mm)
Height - Seated (Max) : 1.430" (36.32mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:3
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 90kCT
DC Resistance (DCR) - Primary : 405 Ohm
DC Resistance (DCR) - Secondary : 1.525 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.380" L x 1.350" W (60.45mm x 34.29mm)
Height - Seated (Max) : 1.430" (36.32mm)
Termination Style : Wire Leads
0
9 in stock
124C
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:3
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 90kCT
DC Resistance (DCR) - Primary : 405 Ohm
DC Resistance (DCR) - Secondary : 1.525 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Wire Leads
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:3
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 90kCT
DC Resistance (DCR) - Primary : 405 Ohm
DC Resistance (DCR) - Secondary : 1.525 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : -
Height - Seated (Max) : -
Termination Style : Wire Leads
0
5 in stock
124D
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.49
Impedance - Primary (Ohms) : 7kCT
Impedance - Secondary (Ohms) : 15.8kCT
DC Resistance (DCR) - Primary : 218 Ohm, 236 Ohm
DC Resistance (DCR) - Secondary : 297 Ohm, 394 Ohm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.810" L x 1.460" W (71.37mm x 37.08mm)
Height - Seated (Max) : 1.680" (42.67mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.49
Impedance - Primary (Ohms) : 7kCT
Impedance - Secondary (Ohms) : 15.8kCT
DC Resistance (DCR) - Primary : 218 Ohm, 236 Ohm
DC Resistance (DCR) - Secondary : 297 Ohm, 394 Ohm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.810" L x 1.460" W (71.37mm x 37.08mm)
Height - Seated (Max) : 1.680" (42.67mm)
Termination Style : Wire Leads
0
9 in stock
124E
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:2.97, 1:5.94
Impedance - Primary (Ohms) : 7kCT, 15k
Impedance - Secondary (Ohms) : 135k, 33.8k/33.8k
DC Resistance (DCR) - Primary : 373 Ohm, 355 Ohm
DC Resistance (DCR) - Secondary : 1.63 kOhm, 2.25 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.880" L x 1.740" W (73.15mm x 44.20mm)
Height - Seated (Max) : 2.370" (60.20mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 124
Part Status : Active
Turns Ratio - Primary:Secondary : 1:2.97, 1:5.94
Impedance - Primary (Ohms) : 7kCT, 15k
Impedance - Secondary (Ohms) : 135k, 33.8k/33.8k
DC Resistance (DCR) - Primary : 373 Ohm, 355 Ohm
DC Resistance (DCR) - Secondary : 1.63 kOhm, 2.25 kOhm
Transformer Type : Tube Driver and Speaker Matching
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.880" L x 1.740" W (73.15mm x 44.20mm)
Height - Seated (Max) : 2.370" (60.20mm)
Termination Style : Wire Leads
0
9 in stock
125A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 125
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.2k ~ 25k
Impedance - Secondary (Ohms) : 1.5 ~ 15
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : General Purpose
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 3W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.060" L x 1.250" W (52.32mm x 31.75mm)
Height - Seated (Max) : 1.190" (30.23mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 125
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.2k ~ 25k
Impedance - Secondary (Ohms) : 1.5 ~ 15
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : General Purpose
Frequency Range : 150Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 3W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.060" L x 1.250" W (52.32mm x 31.75mm)
Height - Seated (Max) : 1.190" (30.23mm)
Termination Style : Wire Leads
0
24 in stock
125ASE
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 125SE
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.5k ~ 10k
Impedance - Secondary (Ohms) : 4 ~ 32
DC Resistance (DCR) - Primary : 241.7 Ohm
DC Resistance (DCR) - Secondary : 229 mOhm, 323 mOhm, 463 mOhm, 670 mOhm
Transformer Type : General Purpose
Frequency Range : 100Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 1500V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 3W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.810" L x 1.350" W (71.37mm x 34.29mm)
Height - Seated (Max) : 1.690" (42.93mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 125SE
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.5k ~ 10k
Impedance - Secondary (Ohms) : 4 ~ 32
DC Resistance (DCR) - Primary : 241.7 Ohm
DC Resistance (DCR) - Secondary : 229 mOhm, 323 mOhm, 463 mOhm, 670 mOhm
Transformer Type : General Purpose
Frequency Range : 100Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 1500V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 3W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.810" L x 1.350" W (71.37mm x 34.29mm)
Height - Seated (Max) : 1.690" (42.93mm)
Termination Style : Wire Leads
0
8 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
