Part Number
Manufacturer
Description
Unit Price
In Stock
MET-22-T
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 2.5kCT
Impedance - Secondary (Ohms) : 2.5kCT
DC Resistance (DCR) - Primary : 280 Ohm
DC Resistance (DCR) - Secondary : 350 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 40mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 2.5kCT
Impedance - Secondary (Ohms) : 2.5kCT
DC Resistance (DCR) - Primary : 280 Ohm
DC Resistance (DCR) - Secondary : 350 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 40mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
123 in stock

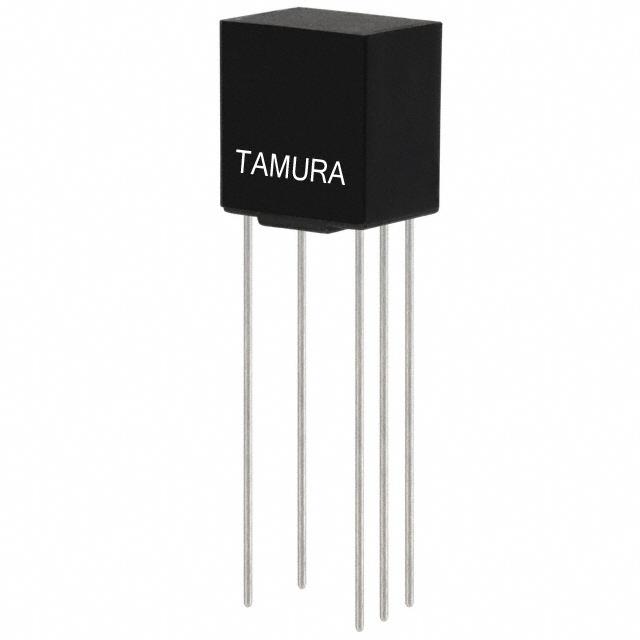

MET-23
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 22.4:1
Impedance - Primary (Ohms) : 1.6kCT
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 230 Ohm
DC Resistance (DCR) - Secondary : 1 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±3dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 65mW Max @ 300Hz
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 22.4:1
Impedance - Primary (Ohms) : 1.6kCT
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 230 Ohm
DC Resistance (DCR) - Secondary : 1 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±3dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 65mW Max @ 300Hz
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
956 in stock
MET-23-T
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 22.4:1
Impedance - Primary (Ohms) : 1.6kCT
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 230 Ohm
DC Resistance (DCR) - Secondary : 1 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 65mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 22.4:1
Impedance - Primary (Ohms) : 1.6kCT
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 230 Ohm
DC Resistance (DCR) - Secondary : 1 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 65mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
78 in stock

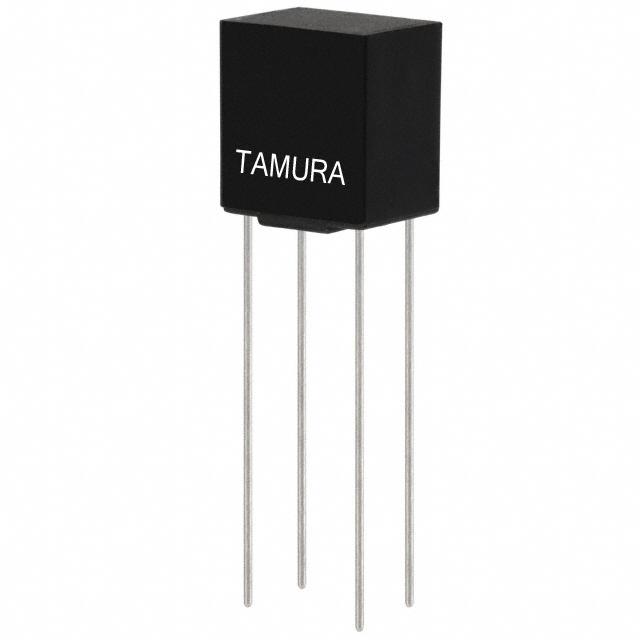

MET-28
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 4.47:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 110 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 4.47:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 110 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
5 in stock
MET-28-T
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 4.47:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 110 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 4.47:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 110 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
24 in stock
MET-31
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
1855 in stock
MET-31-T
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
3409 in stock

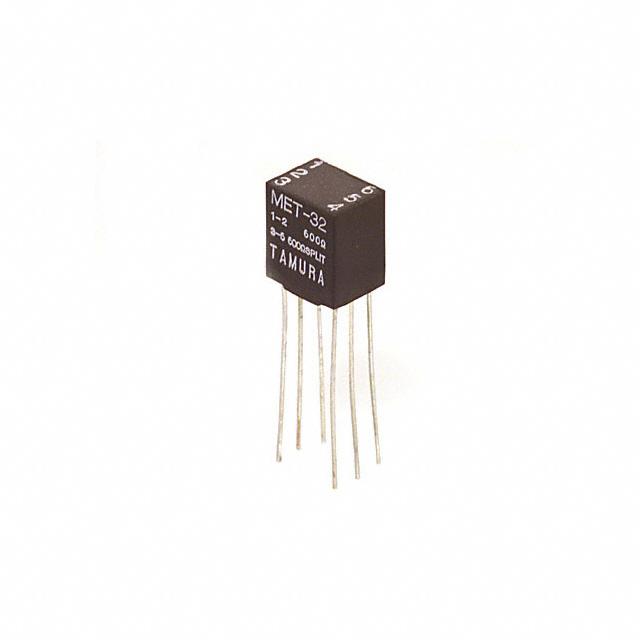

MET-32
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600, 150/150
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600, 150/150
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
2646 in stock
MET-32-T
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 150/150
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 150/150
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
257 in stock
MET-35
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 8.66:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 60 Ohm
DC Resistance (DCR) - Secondary : 1.5 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 8.66:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 60 Ohm
DC Resistance (DCR) - Secondary : 1.5 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
6167 in stock
MET-35-T
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 8.66:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 60 Ohm
DC Resistance (DCR) - Secondary : 1.5 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 8.66:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 60 Ohm
DC Resistance (DCR) - Secondary : 1.5 Ohm
Transformer Type : Audio Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
154 in stock
MET-39
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 3.16:1
Impedance - Primary (Ohms) : 500
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 55 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 3.16:1
Impedance - Primary (Ohms) : 500
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 55 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
