- Transformers
- Audio Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
1650RP
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 44 Ohm, 98.5 Ohm
DC Resistance (DCR) - Secondary : 210 mOhm, 344 mOhm
Transformer Type : Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 5.000" L x 4.250" W (127.00mm x 107.95mm)
Height - Seated (Max) : 4.500" (114.30mm)
Termination Style : -
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 44 Ohm, 98.5 Ohm
DC Resistance (DCR) - Secondary : 210 mOhm, 344 mOhm
Transformer Type : Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 5.000" L x 4.250" W (127.00mm x 107.95mm)
Height - Seated (Max) : 4.500" (114.30mm)
Termination Style : -
0
100 in stock
1650T
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 120W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 120W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
3 in stock

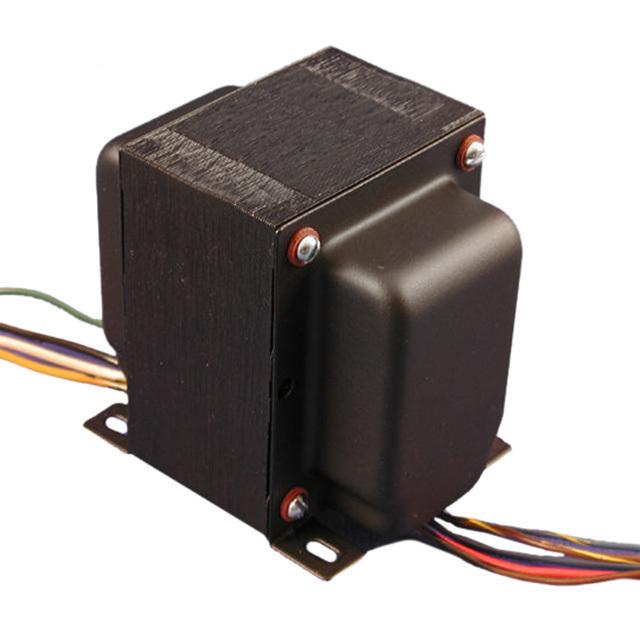

1650TA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 22.07 Ohm, 24.85 Ohm
DC Resistance (DCR) - Secondary : 251 mOhm, 334 mOhm, 359 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 120W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 22.07 Ohm, 24.85 Ohm
DC Resistance (DCR) - Secondary : 251 mOhm, 334 mOhm, 359 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 120W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
3 in stock
1650W
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 280W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 280W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
0
1 in stock
1650WA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 15.65 Ohm, 17.19 Ohm
DC Resistance (DCR) - Secondary : 152 mOhm, 203 mOhm, 217 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 3535VDC @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 280W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 1.9kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 15.65 Ohm, 17.19 Ohm
DC Resistance (DCR) - Secondary : 152 mOhm, 203 mOhm, 217 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 3535VDC @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 280W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
0
1 in stock

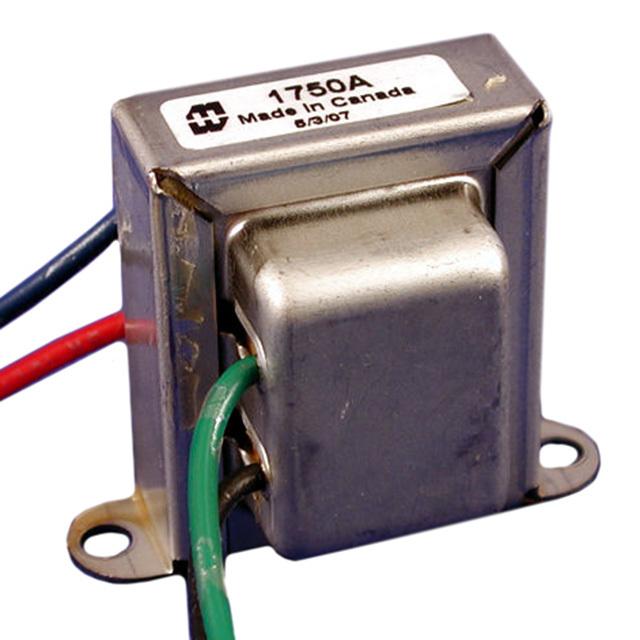

1750A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 53.11:1
Impedance - Primary (Ohms) : 22.8k
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 1.065 kOhm
DC Resistance (DCR) - Secondary : 1.02 Ohm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 3.5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.000" L x 1.440" W (50.80mm x 36.58mm)
Height - Seated (Max) : 1.773" (45.03mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 53.11:1
Impedance - Primary (Ohms) : 22.8k
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 1.065 kOhm
DC Resistance (DCR) - Secondary : 1.02 Ohm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 3.5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.000" L x 1.440" W (50.80mm x 36.58mm)
Height - Seated (Max) : 1.773" (45.03mm)
Termination Style : Wire Leads
0
50 in stock

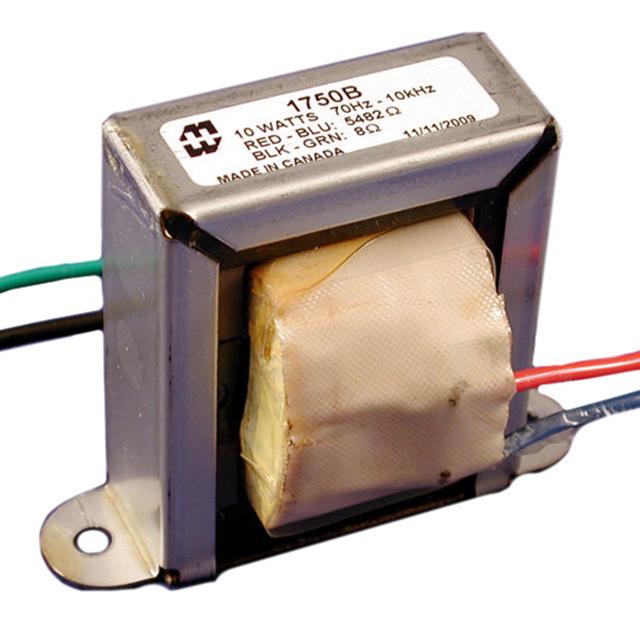

1750B
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5.482k
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 254.8 Ohm
DC Resistance (DCR) - Secondary : 420 mOhm
Transformer Type : -
Frequency Range : 70Hz ~ 10kHz
Frequency Response : ±1dB
Voltage - Isolation : 1750V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.875" L x 1.900" W (73.02mm x 48.26mm)
Height - Seated (Max) : 2.433" (61.80mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5.482k
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 254.8 Ohm
DC Resistance (DCR) - Secondary : 420 mOhm
Transformer Type : -
Frequency Range : 70Hz ~ 10kHz
Frequency Response : ±1dB
Voltage - Isolation : 1750V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.875" L x 1.900" W (73.02mm x 48.26mm)
Height - Seated (Max) : 2.433" (61.80mm)
Termination Style : Wire Leads
0
2 in stock

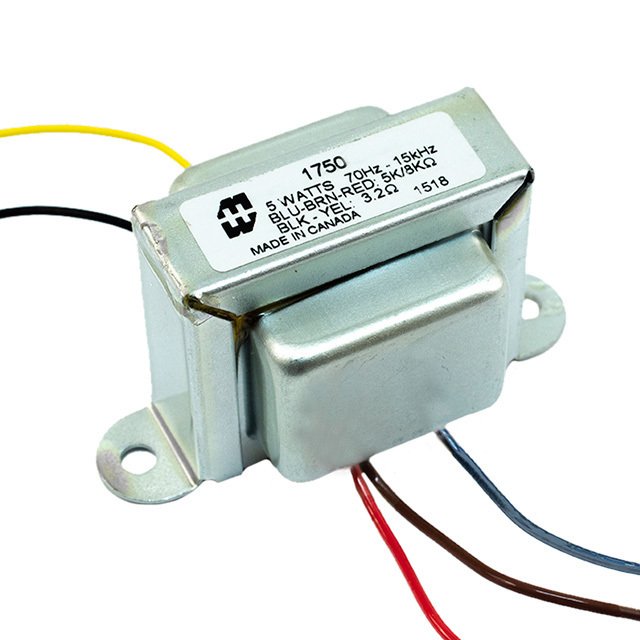

1750C
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 49.16:1
Impedance - Primary (Ohms) : 5k, 8k
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 314.2 Ohm
DC Resistance (DCR) - Secondary : 295 mOhm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.813" L x 1.560" W (71.45mm x 39.62mm)
Height - Seated (Max) : 1.746" (44.35mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 49.16:1
Impedance - Primary (Ohms) : 5k, 8k
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 314.2 Ohm
DC Resistance (DCR) - Secondary : 295 mOhm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 5W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.813" L x 1.560" W (71.45mm x 39.62mm)
Height - Seated (Max) : 1.746" (44.35mm)
Termination Style : Wire Leads
0
8 in stock
1750D
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.35kCT/25m
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 33.09 Ohm, 34.82 Ohm, 370 mOhm
DC Resistance (DCR) - Secondary : 300 mOhm, 690 mOhm, 860 mOhm
Transformer Type : -
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.050" L x 3.715" W (102.87mm x 94.36mm)
Height - Seated (Max) : 3.563" (90.50mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.35kCT/25m
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 33.09 Ohm, 34.82 Ohm, 370 mOhm
DC Resistance (DCR) - Secondary : 300 mOhm, 690 mOhm, 860 mOhm
Transformer Type : -
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.050" L x 3.715" W (102.87mm x 94.36mm)
Height - Seated (Max) : 3.563" (90.50mm)
Termination Style : Wire Leads
0
4 in stock
1750E
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 32.61:1
Impedance - Primary (Ohms) : 8kCT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 150 Ohm, 300 Ohm
DC Resistance (DCR) - Secondary : 450 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.085" W (82.55mm x 52.96mm)
Height - Seated (Max) : 2.058" (52.27mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 32.61:1
Impedance - Primary (Ohms) : 8kCT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 150 Ohm, 300 Ohm
DC Resistance (DCR) - Secondary : 450 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.085" W (82.55mm x 52.96mm)
Height - Seated (Max) : 2.058" (52.27mm)
Termination Style : Wire Leads
0
10 in stock
1750F
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 29.19:1
Impedance - Primary (Ohms) : 6.95kCT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 97.36 Ohm, 194.7 Ohm
DC Resistance (DCR) - Secondary : 409 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 1.687" W (82.55mm x 42.85mm)
Height - Seated (Max) : 2.058" (52.27mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 29.19:1
Impedance - Primary (Ohms) : 6.95kCT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 97.36 Ohm, 194.7 Ohm
DC Resistance (DCR) - Secondary : 409 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 70Hz ~ 15kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 1.687" W (82.55mm x 42.85mm)
Height - Seated (Max) : 2.058" (52.27mm)
Termination Style : Wire Leads
0
10 in stock
1750G
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 14.21:1
Impedance - Primary (Ohms) : 3.8kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 95.61 Ohm
DC Resistance (DCR) - Secondary : 250 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 50Hz ~ 12kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 3.320" W (95.25mm x 84.33mm)
Height - Seated (Max) : 3.873" (98.37mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1750
Part Status : Active
Turns Ratio - Primary:Secondary : 14.21:1
Impedance - Primary (Ohms) : 3.8kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 95.61 Ohm
DC Resistance (DCR) - Secondary : 250 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 50Hz ~ 12kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 3.320" W (95.25mm x 84.33mm)
Height - Seated (Max) : 3.873" (98.37mm)
Termination Style : Wire Leads
0
3 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
