Welcome to Weijie Semiconductor
- Transformers
- Audio Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
1650H
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 40W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 40W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
4 in stock
1650HA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 63.69 Ohm, 71.33 Ohm
DC Resistance (DCR) - Secondary : 74 mOhm, 223 mOhm, 258 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 40W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 63.69 Ohm, 71.33 Ohm
DC Resistance (DCR) - Secondary : 74 mOhm, 223 mOhm, 258 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 40W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
3 in stock
1650K
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.4kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.4kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
3 in stock
1650KA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.4kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 32.74 Ohm, 36.71 Ohm
DC Resistance (DCR) - Secondary : 306 mOhm, 432 mOhm, 540 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.4kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 32.74 Ohm, 36.71 Ohm
DC Resistance (DCR) - Secondary : 306 mOhm, 432 mOhm, 540 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.000" L x 3.130" W (101.60mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
3 in stock

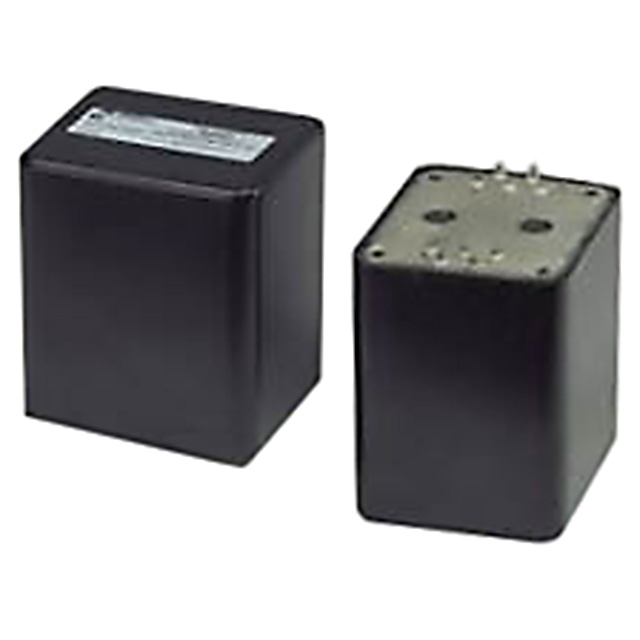

1650KP
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.4kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 3.880" L x 3.310" W (98.55mm x 84.07mm)
Height - Seated (Max) : 4.250" (107.95mm)
Termination Style : -
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.4kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 50W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 3.880" L x 3.310" W (98.55mm x 84.07mm)
Height - Seated (Max) : 4.250" (107.95mm)
Termination Style : -
0
100 in stock
1650N
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 4.3kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 82.5 Ohm
DC Resistance (DCR) - Secondary : 232 mOhm, 270 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.185" L x 3.125" W (106.30mm x 79.38mm)
Height - Seated (Max) : 3.859" (98.02mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 4.3kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 82.5 Ohm
DC Resistance (DCR) - Secondary : 232 mOhm, 270 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.185" L x 3.125" W (106.30mm x 79.38mm)
Height - Seated (Max) : 3.859" (98.02mm)
Termination Style : Wire Leads
0
3 in stock
1650NA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 4.3kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 37.19 Ohm, 42.17 Ohm
DC Resistance (DCR) - Secondary : 244 mOhm, 377 mOhm, 490 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 4.3kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 37.19 Ohm, 42.17 Ohm
DC Resistance (DCR) - Secondary : 244 mOhm, 377 mOhm, 490 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
1 in stock
1650P
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
3 in stock
1650PA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 71.34 Ohm, 80.42 Ohm
DC Resistance (DCR) - Secondary : 237 mOhm, 364 mOhm, 473 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 71.34 Ohm, 80.42 Ohm
DC Resistance (DCR) - Secondary : 237 mOhm, 364 mOhm, 473 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.130" W (107.95mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
6 in stock
1650PP
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 66.8 Ohm, 160.5 Ohm
DC Resistance (DCR) - Secondary : 230 mOhm, 370 mOhm
Transformer Type : Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 3.880" L x 3.310" W (98.55mm x 84.07mm)
Height - Seated (Max) : 4.250" (107.95mm)
Termination Style : -
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 66.8 Ohm, 160.5 Ohm
DC Resistance (DCR) - Secondary : 230 mOhm, 370 mOhm
Transformer Type : Push-Pull Potted, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 60W
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 3.880" L x 3.310" W (98.55mm x 84.07mm)
Height - Seated (Max) : 4.250" (107.95mm)
Termination Style : -
0
100 in stock
1650R
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : 1650R
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.750" W (107.95mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : 1650R
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.750" W (107.95mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
4 in stock

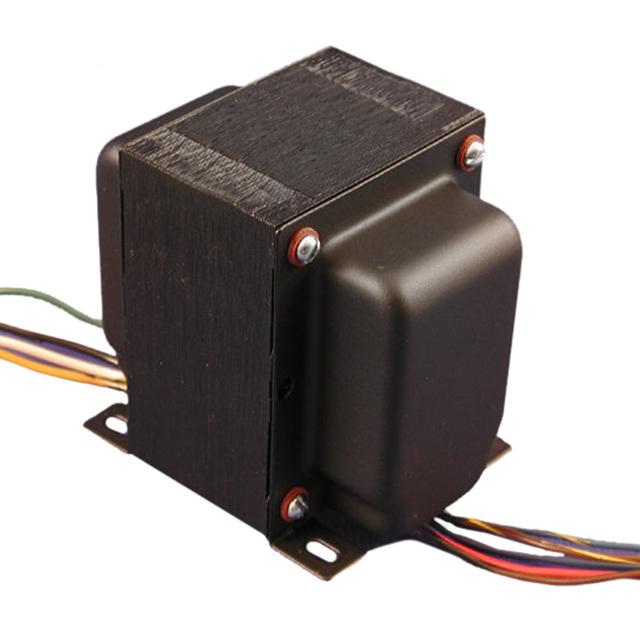

1650RA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 47.43 Ohm, 54.65 Ohm
DC Resistance (DCR) - Secondary : 232 mOhm, 333 mOhm, 343 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 3535VDC @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.750" W (107.95mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 47.43 Ohm, 54.65 Ohm
DC Resistance (DCR) - Secondary : 232 mOhm, 333 mOhm, 343 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 3535VDC @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 100W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.250" L x 3.750" W (107.95mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
3 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
