Part Number
Manufacturer
Description
Unit Price
In Stock

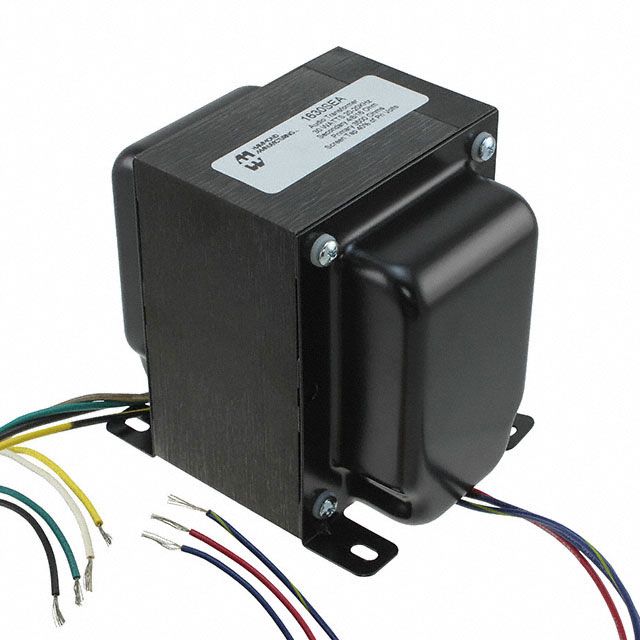

1630SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 110.1 Ohm
DC Resistance (DCR) - Secondary : 634 mOhm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2828VDC @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.980" L x 3.750" W (126.49mm x 95.25mm)
Height - Seated (Max) : 4.650" (118.11mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 110.1 Ohm
DC Resistance (DCR) - Secondary : 634 mOhm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2828VDC @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.980" L x 3.750" W (126.49mm x 95.25mm)
Height - Seated (Max) : 4.650" (118.11mm)
Termination Style : Wire Leads
0
21 in stock
1638SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.880" L x 3.750" W (123.95mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.880" L x 3.750" W (123.95mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
1 in stock
1640SE
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 11.25k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 11.25k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
100 in stock

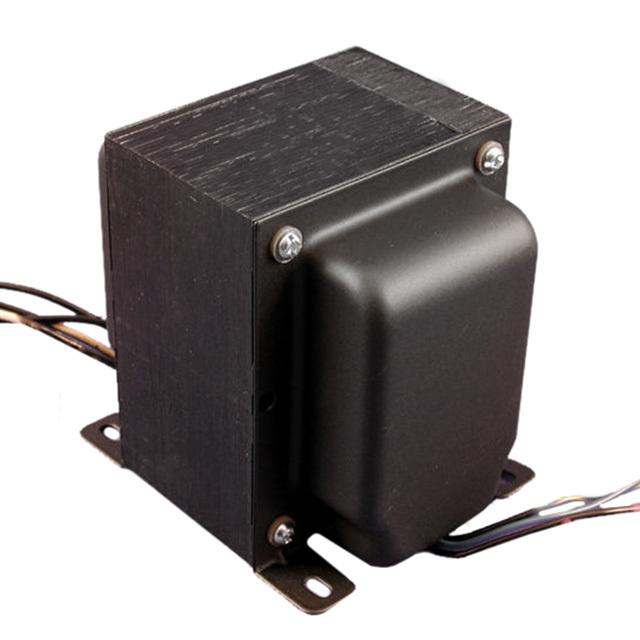

1640SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 11.25k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.950" L x 3.750" W (125.73mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 11.25k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.950" L x 3.750" W (125.73mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
3 in stock
1642SE
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 3500Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 75W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 3500Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 75W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
0
2 in stock
1642SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 7.500" L x 4.380" W (190.50mm x 111.25mm)
Height - Seated (Max) : 5.250" (133.35mm)
Termination Style : Wire Leads
0
100 in stock
1645
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16, 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 2.500" W (95.25mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16, 70V
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 2.500" W (95.25mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
3 in stock
1645A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16, 70V
DC Resistance (DCR) - Primary : 72.11 Ohm, 79.35 Ohm
DC Resistance (DCR) - Secondary : 276 mOhm, 391 mOhm, 464 mOhm, 9.304 Ohm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 2.500" W (95.25mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16, 70V
DC Resistance (DCR) - Primary : 72.11 Ohm, 79.35 Ohm
DC Resistance (DCR) - Secondary : 276 mOhm, 391 mOhm, 464 mOhm, 9.304 Ohm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 2.500" W (95.25mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
3 in stock
1650E
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 8kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 98.98 Ohm, 101.9 Ohm
DC Resistance (DCR) - Secondary : 154 mOhm, 218 mOhm, 303 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 8kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 98.98 Ohm, 101.9 Ohm
DC Resistance (DCR) - Secondary : 154 mOhm, 218 mOhm, 303 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
2 in stock
1650F
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 7.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 210 Ohm
DC Resistance (DCR) - Secondary : 220 mOhm, 270 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 7.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 210 Ohm
DC Resistance (DCR) - Secondary : 220 mOhm, 270 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
5 in stock
1650FA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 7.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 92.16 Ohm, 102.8 Ohm
DC Resistance (DCR) - Secondary : 210 mOhm, 239 mOhm, 309 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 7.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 92.16 Ohm, 102.8 Ohm
DC Resistance (DCR) - Secondary : 210 mOhm, 239 mOhm, 309 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
4 in stock
1650G
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 3.5, 8, 16, 250, 500
DC Resistance (DCR) - Primary : 56.93 Ohm, 60.95 Ohm
DC Resistance (DCR) - Secondary : 259 mOhm, 364 mOhm, 496 mOhm, 6.727 Ohm, 9.55 Ohm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 35W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 3.130" W (95.25mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 3.5, 8, 16, 250, 500
DC Resistance (DCR) - Primary : 56.93 Ohm, 60.95 Ohm
DC Resistance (DCR) - Secondary : 259 mOhm, 364 mOhm, 496 mOhm, 6.727 Ohm, 9.55 Ohm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 35W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.750" L x 3.130" W (95.25mm x 79.50mm)
Height - Seated (Max) : 3.810" (96.77mm)
Termination Style : Wire Leads
0
4 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
