- Transformers
- Audio Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
1609
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.750" L x 2.500" W (69.85mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.750" L x 2.500" W (69.85mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
25 in stock
1609A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 102.2 Ohm, 114.3 Ohm
DC Resistance (DCR) - Secondary : 321 mOhm, 365 mOhm, 476 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.750" L x 2.500" W (69.85mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 102.2 Ohm, 114.3 Ohm
DC Resistance (DCR) - Secondary : 321 mOhm, 365 mOhm, 476 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 10W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 2.750" L x 2.500" W (69.85mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
5 in stock
1615
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
5 in stock
1615A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 84.46 Ohm, 96.25 Ohm
DC Resistance (DCR) - Secondary : 130 mOhm, 210 mOhm, 270 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 84.46 Ohm, 96.25 Ohm
DC Resistance (DCR) - Secondary : 130 mOhm, 210 mOhm, 270 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 15W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.250" L x 2.500" W (82.55mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
2 in stock
1620
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 65.4 Ohm, 74.6 Ohm
DC Resistance (DCR) - Secondary : 310 mOhm, 500 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 20W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 65.4 Ohm, 74.6 Ohm
DC Resistance (DCR) - Secondary : 310 mOhm, 500 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 20W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
4 in stock

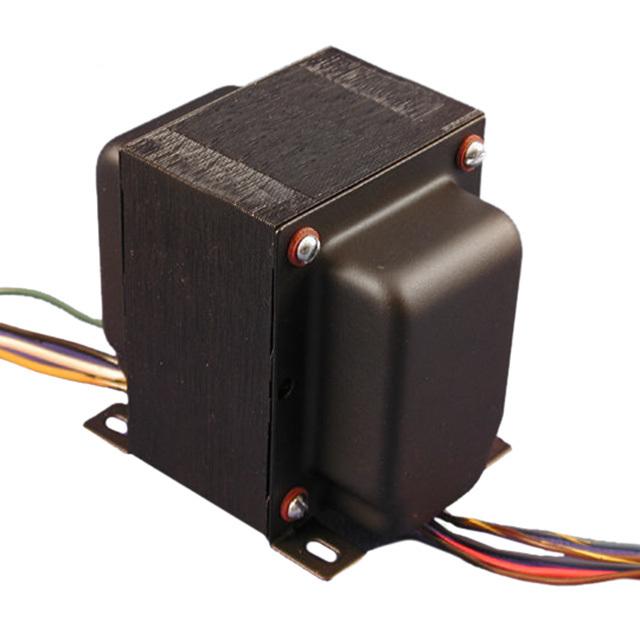

1620A
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : A
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 66.16 Ohm, 74.93 Ohm
DC Resistance (DCR) - Secondary : 170 mOhm, 300 mOhm, 440 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 20W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : A
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.6kCT
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 66.16 Ohm, 74.93 Ohm
DC Resistance (DCR) - Secondary : 170 mOhm, 300 mOhm, 440 mOhm
Transformer Type : Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range : 30Hz ~ 30kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000V @ 1 Second
Insertion Loss : -
Return Loss : -
Power Level : 20W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 3.500" L x 2.500" W (88.90mm x 63.50mm)
Height - Seated (Max) : 3.060" (77.72mm)
Termination Style : Wire Leads
0
30 in stock
1627SE
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 25k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 25k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
100 in stock
1627SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 30 Ohm, 47.44 Ohm
DC Resistance (DCR) - Secondary : 402 mOhm, 502 mOhm, 700 mOhm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2828VDC @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 2.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : 30 Ohm, 47.44 Ohm
DC Resistance (DCR) - Secondary : 402 mOhm, 502 mOhm, 700 mOhm
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2828VDC @ 1 Second
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
2 in stock
1628SE
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
100 in stock
1628SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
8 in stock

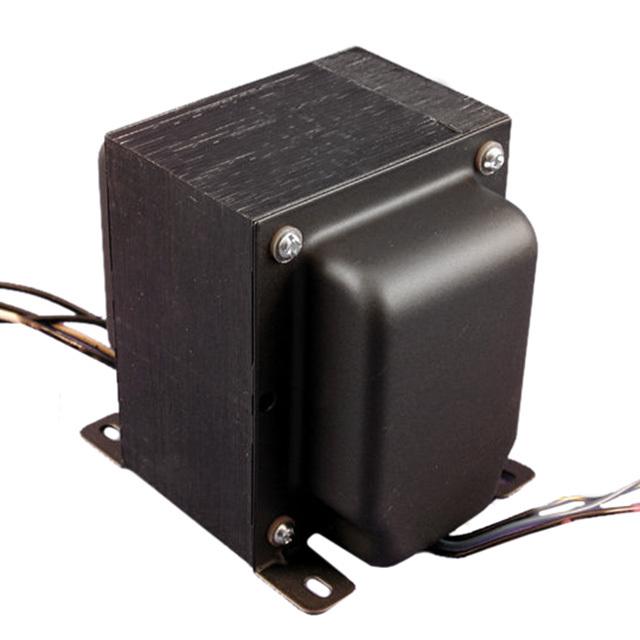

1629SE
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : ±1dB
Return Loss : -
Power Level : 25W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 5.000" L x 3.750" W (127.00mm x 95.20mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
100 in stock
1629SEA
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 1600
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 6.5k
Impedance - Secondary (Ohms) : 4, 8, 16
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Single Ended Audiophile, Ultra-Linear - Tube Output
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 2000Vrms
Insertion Loss : ±1dB
Return Loss : -
Power Level : 30W
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 4.500" L x 3.750" W (114.30mm x 95.25mm)
Height - Seated (Max) : 4.560" (115.82mm)
Termination Style : Wire Leads
0
3 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
