Part Number
Manufacturer
Description
Unit Price
In Stock

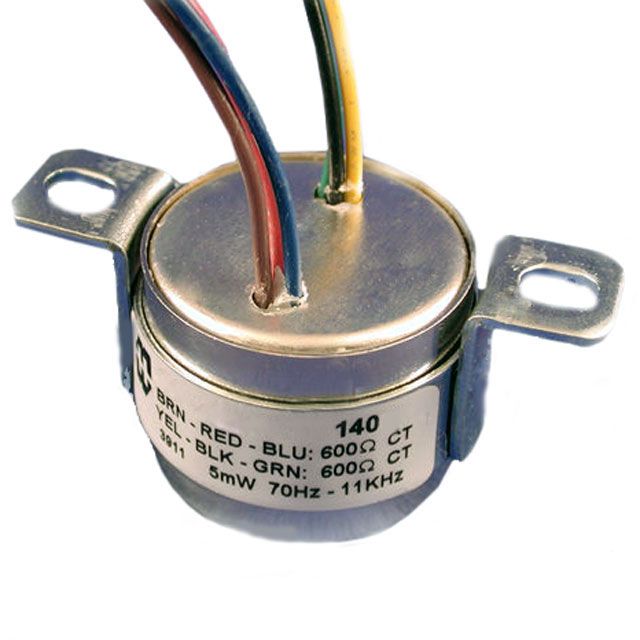

140NEX
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:5.47
Impedance - Primary (Ohms) : 50
Impedance - Secondary (Ohms) : 1.5k
DC Resistance (DCR) - Primary : 5.3 Ohm
DC Resistance (DCR) - Secondary : 116.5 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 0.9dB Typ
Return Loss : 28dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:5.47
Impedance - Primary (Ohms) : 50
Impedance - Secondary (Ohms) : 1.5k
DC Resistance (DCR) - Primary : 5.3 Ohm
DC Resistance (DCR) - Secondary : 116.5 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 0.9dB Typ
Return Loss : 28dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
0
5 in stock
140P
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:2
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 2.4k, 600/600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Shielded
Frequency Range : 70Hz ~ 11kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 140
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:2
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 2.4k, 600/600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Shielded
Frequency Range : 70Hz ~ 11kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Wire Leads
0
100 in stock
140PEX
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1, 1:2, 1:4
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 2.4k, 600/600
DC Resistance (DCR) - Primary : 58 Ohm
DC Resistance (DCR) - Secondary : 190 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 0.8dB Typ
Return Loss : 30dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1, 1:2, 1:4
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 2.4k, 600/600
DC Resistance (DCR) - Primary : 58 Ohm
DC Resistance (DCR) - Secondary : 190 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 0.8dB Typ
Return Loss : 30dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
0
27 in stock
140Q
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Shielded
Frequency Range : 70Hz ~ 11kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Wire Leads
Packaging : Bulk
Series : 140
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Shielded
Frequency Range : 70Hz ~ 11kHz
Frequency Response : ±1dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Wire Leads
0
100 in stock
140QEX
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 72.4 Ohm
DC Resistance (DCR) - Secondary : 72.4 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1.1dB Typ
Return Loss : 20dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 72.4 Ohm
DC Resistance (DCR) - Secondary : 72.4 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1.1dB Typ
Return Loss : 20dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
0
100 in stock
140REX
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 150
DC Resistance (DCR) - Primary : 72.4 Ohm
DC Resistance (DCR) - Secondary : 18.2 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1dB Typ
Return Loss : 22.5dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 150
DC Resistance (DCR) - Primary : 72.4 Ohm
DC Resistance (DCR) - Secondary : 18.2 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1dB Typ
Return Loss : 22.5dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
0
23 in stock
140TEX
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 1k
DC Resistance (DCR) - Primary : 89.7 Ohm
DC Resistance (DCR) - Secondary : 89.7 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1dB Typ
Return Loss : 20dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 1k
DC Resistance (DCR) - Primary : 89.7 Ohm
DC Resistance (DCR) - Secondary : 89.7 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1dB Typ
Return Loss : 20dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
0
36 in stock
140UEX
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 10k
DC Resistance (DCR) - Primary : 886 Ohm
DC Resistance (DCR) - Secondary : 903.5 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1dB Typ
Return Loss : 20dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
Packaging : Bulk
Series : 140EX
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 10k
DC Resistance (DCR) - Primary : 886 Ohm
DC Resistance (DCR) - Secondary : 903.5 Ohm
Transformer Type : -
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 500Vrms
Insertion Loss : 1dB Typ
Return Loss : 20dB Typ
Power Level : 10dB
Operating Temperature : -
Approvals : -
Mounting Type : Chassis Mount
Size / Dimension : 1.250" Dia (31.75mm)
Height - Seated (Max) : 1.000" (25.40mm)
Termination Style : Screw Terminal
0
24 in stock

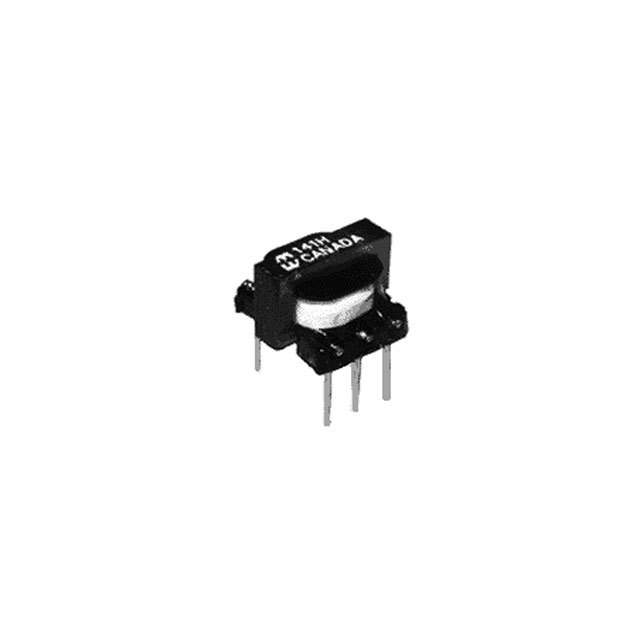

141B
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 200kCT
Impedance - Secondary (Ohms) : 1k
DC Resistance (DCR) - Primary : 3.775 kOhm
DC Resistance (DCR) - Secondary : 85 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 4mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 200kCT
Impedance - Secondary (Ohms) : 1k
DC Resistance (DCR) - Primary : 3.775 kOhm
DC Resistance (DCR) - Secondary : 85 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 4mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
0
10 in stock
141D
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3kCT
Impedance - Secondary (Ohms) : 1kCT
DC Resistance (DCR) - Primary : 120 Ohm
DC Resistance (DCR) - Secondary : 51 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 150mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 3kCT
Impedance - Secondary (Ohms) : 1kCT
DC Resistance (DCR) - Primary : 120 Ohm
DC Resistance (DCR) - Secondary : 51 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 150mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
0
8 in stock
141F
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 25kCT
Impedance - Secondary (Ohms) : 50CT
DC Resistance (DCR) - Primary : 1.645 kOhm
DC Resistance (DCR) - Secondary : 65 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 100mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 25kCT
Impedance - Secondary (Ohms) : 50CT
DC Resistance (DCR) - Primary : 1.645 kOhm
DC Resistance (DCR) - Secondary : 65 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : -
Insertion Loss : -
Return Loss : -
Power Level : 100mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
0
100 in stock
141H
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 32 Ohm
DC Resistance (DCR) - Secondary : 45 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 50kHz
Frequency Response : ±2dB
Voltage - Isolation : 250V
Insertion Loss : -
Return Loss : -
Power Level : 150mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
Packaging : Bulk
Series : 141
Part Status : Active
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 32 Ohm
DC Resistance (DCR) - Secondary : 45 Ohm
Transformer Type : Low Profile, Open Type
Frequency Range : 200Hz ~ 50kHz
Frequency Response : ±2dB
Voltage - Isolation : 250V
Insertion Loss : -
Return Loss : -
Power Level : 150mW
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.780" L x 0.660" W (19.81mm x 16.76mm)
Height - Seated (Max) : 0.460" (11.68mm)
Termination Style : PC Pin
0
37 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
