Part Number
Manufacturer
Description
Unit Price
In Stock
59165-1-U-00-B
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59165
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.795" (20.19mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.095" (2.41mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Bulk
Series : 59165
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.795" (20.19mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.095" (2.41mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
100 in stock

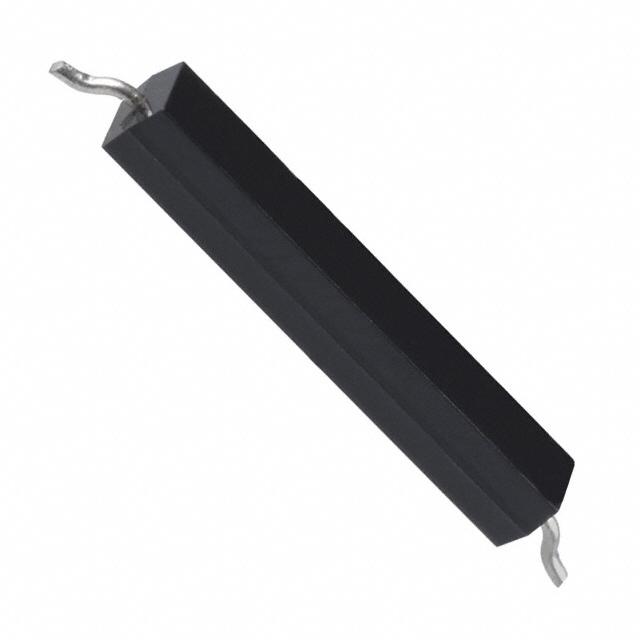

59165-1-U-00-C
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59165
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.795" (20.19mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Bulk
Series : 59165
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.795" (20.19mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
173 in stock
59165-1-U-00-D
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59165
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.795" (20.19mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59165
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.795" (20.19mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
5416 in stock
59166-1-S-00-A
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59166
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Bulk
Series : 59166
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
100 in stock
59166-1-S-00-C
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
471 in stock

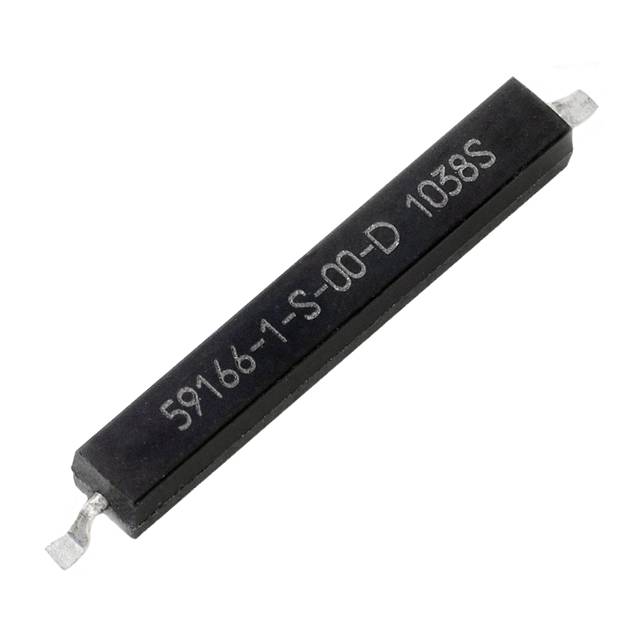

59166-1-S-00-D
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
2879 in stock
59166-1-T-00-A
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59166
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Bulk
Series : 59166
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
100 in stock
59166-1-T-00-C
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
901 in stock
59166-1-T-00-D
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
1350 in stock
59166-1-U-00-A
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tape & Reel (TR)
Series : 59166
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Tape & Reel (TR)
Series : 59166
Part Status : Obsolete
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
100 in stock
59166-1-U-00-D
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 59166
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Gull Wing
Length - Overall : 0.805" (20.45mm)
Size - Body : 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board : 0.099" (2.52mm)
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
1218 in stock

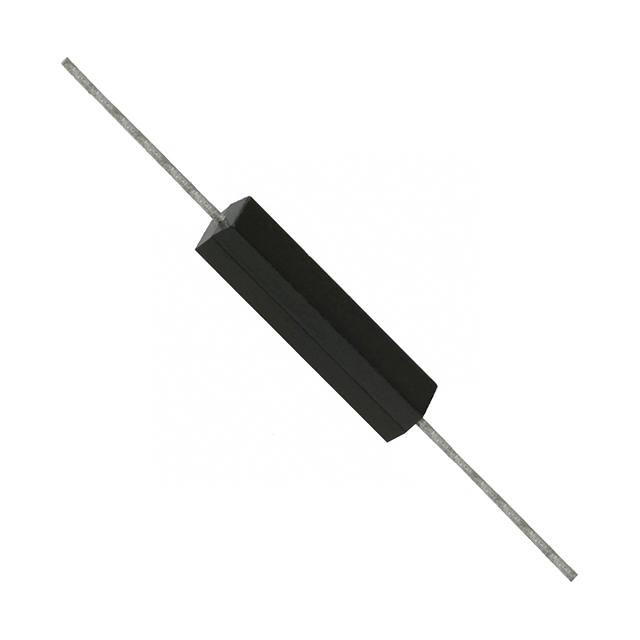

59170-1-S-00-A
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59170
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 0.5ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
Packaging : Bulk
Series : 59170
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 0.5ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.590" (40.39mm)
Size - Body : 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 800mA (DC)
0
137 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
