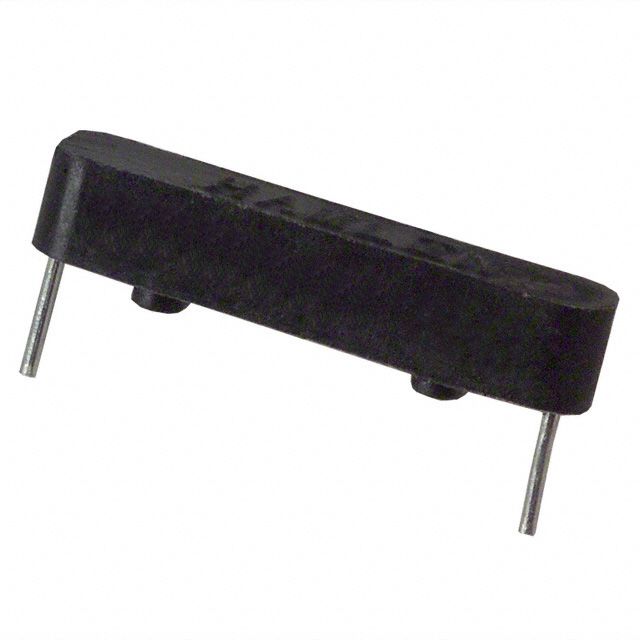

59045-010
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1A (DC)
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1A (DC)
0
52076 in stock

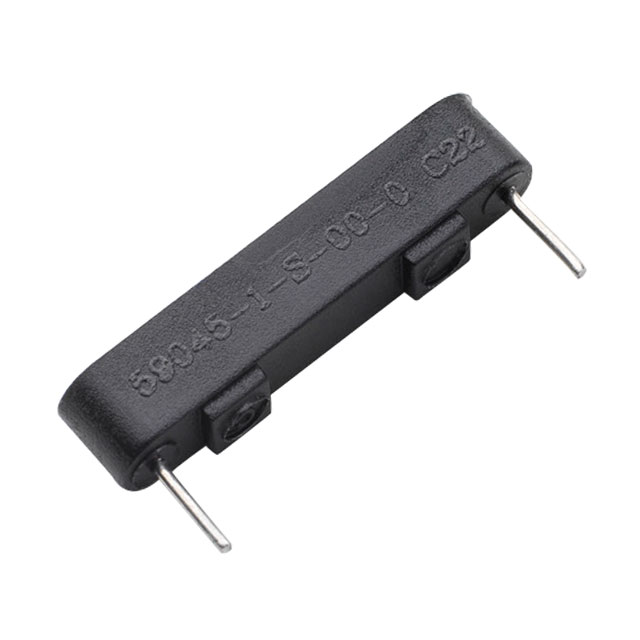

59045-1-S-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
699 in stock

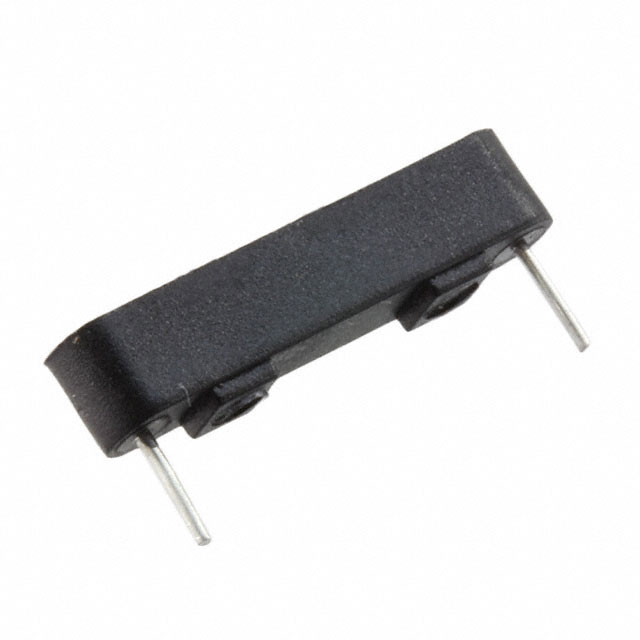

59045-1-T-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
1938 in stock
59045-1-U-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59045
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.700" (17.78mm)
Size - Body : 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)
Height Above Board : 0.170" (4.33mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
100 in stock
59050-010
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 10 ~ 20AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1A (DC)
0
21184 in stock

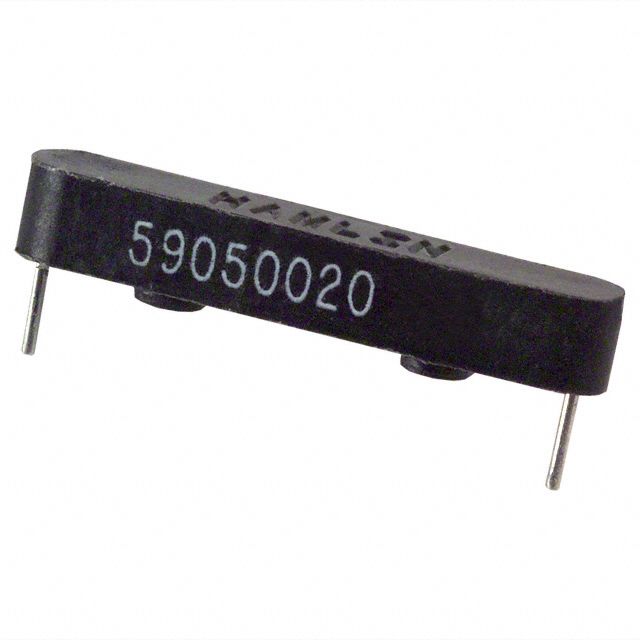

59050-020
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 17 ~ 23AT
Release Range : -
Current - Switching : 300mA (AC), 400mA (DC)
Voltage - Switching AC : 265V
Voltage - Switching DC : 300V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -20°C ~ 105°C
Capacitance : 0.2pF
Current - Carry : 1.5A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 17 ~ 23AT
Release Range : -
Current - Switching : 300mA (AC), 400mA (DC)
Voltage - Switching AC : 265V
Voltage - Switching DC : 300V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -20°C ~ 105°C
Capacitance : 0.2pF
Current - Carry : 1.5A (DC)
0
132 in stock

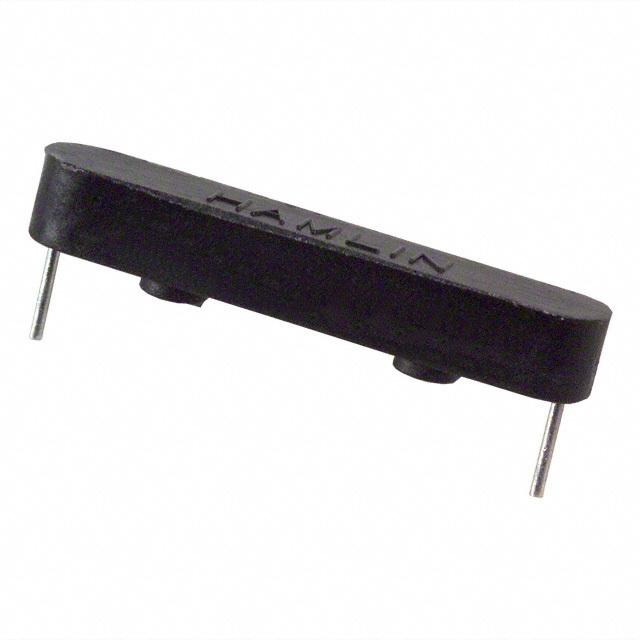

59050-030
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPDT
Operate Range : 3.81mm
Release Range : 16.51mm
Current - Switching : 250mA (DC)
Voltage - Switching AC : -
Voltage - Switching DC : 175V
Power - Rated : 5W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : -
Current - Carry : 1.5A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPDT
Operate Range : 3.81mm
Release Range : 16.51mm
Current - Switching : 250mA (DC)
Voltage - Switching AC : -
Voltage - Switching DC : 175V
Power - Rated : 5W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : -
Current - Carry : 1.5A (DC)
0
560 in stock
59050-1-S-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 12 ~ 18AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 12 ~ 18AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
996 in stock

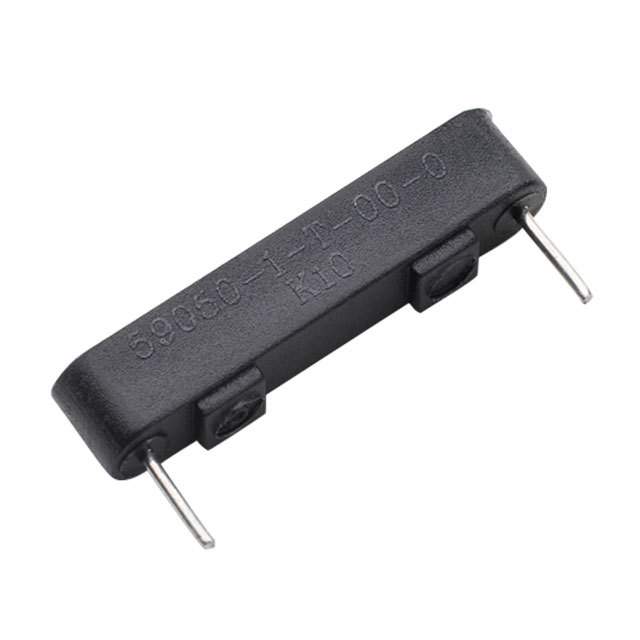

59050-1-T-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 17 ~ 23AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 17 ~ 23AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
995 in stock
59050-1-U-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 22 ~ 28AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 22 ~ 28AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
998 in stock
59050-1-V-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 27 ~ 33AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 27 ~ 33AT
Release Range : -
Current - Switching : 350mA (AC), 500mA (DC)
Voltage - Switching AC : 140V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -40°C ~ 105°C
Capacitance : 0.3pF
Current - Carry : 1.2A (DC)
0
974 in stock
59050-2-S-00-0
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 12 ~ 18AT
Release Range : -
Current - Switching : 300mA (AC), 400mA (DC)
Voltage - Switching AC : 265V
Voltage - Switching DC : 300V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -20°C ~ 105°C
Capacitance : 0.2pF
Current - Carry : 1.4A (DC)
Packaging : Bulk
Series : 59050
Part Status : Active
Type : Molded Body
Circuit : SPST-NO
Operate Range : 12 ~ 18AT
Release Range : -
Current - Switching : 300mA (AC), 400mA (DC)
Voltage - Switching AC : 265V
Voltage - Switching DC : 300V
Power - Rated : 10W
Operate Time : 1ms
Release Time : 1ms
Mounting Type : Through Hole
Termination Style : PC Pin
Length - Overall : 0.900" (22.86mm)
Size - Body : 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)
Height Above Board : 0.180" (4.57mm)
Operating Temperature : -20°C ~ 105°C
Capacitance : 0.2pF
Current - Carry : 1.4A (DC)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
