Part Number
Manufacturer
Description
Unit Price
In Stock

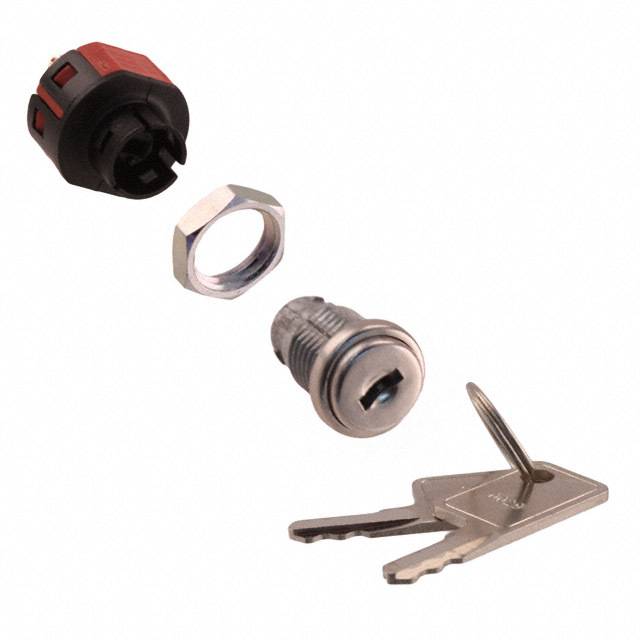

YF211U2C203NQ
C&K
Manufacturer : C
Series : YF
Part Status : Active
Circuit : DPDT
Number of Positions : 2
Switch Function : On-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : Epoxy Sealed Terminals
Operating Temperature : -
Series : YF
Part Status : Active
Circuit : DPDT
Number of Positions : 2
Switch Function : On-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Solder Lug
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : Epoxy Sealed Terminals
Operating Temperature : -
0
119 in stock

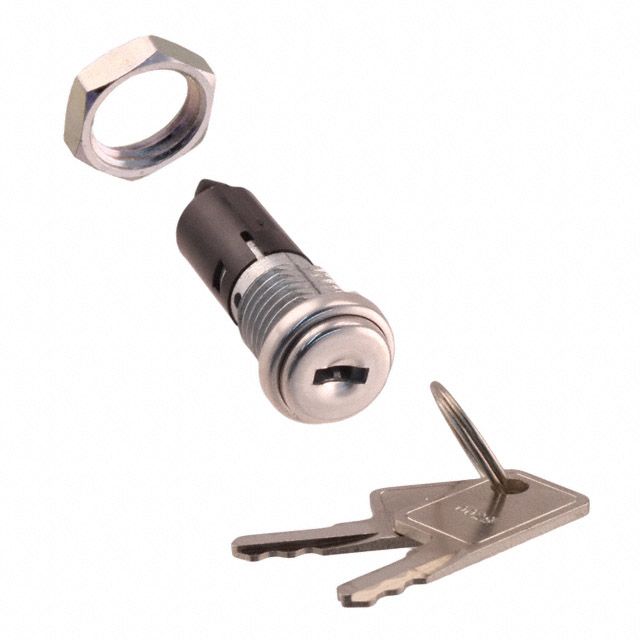

YM06132C205NQ
C&K
Manufacturer : C
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : 1 only
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : 1 only
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
0
1444 in stock

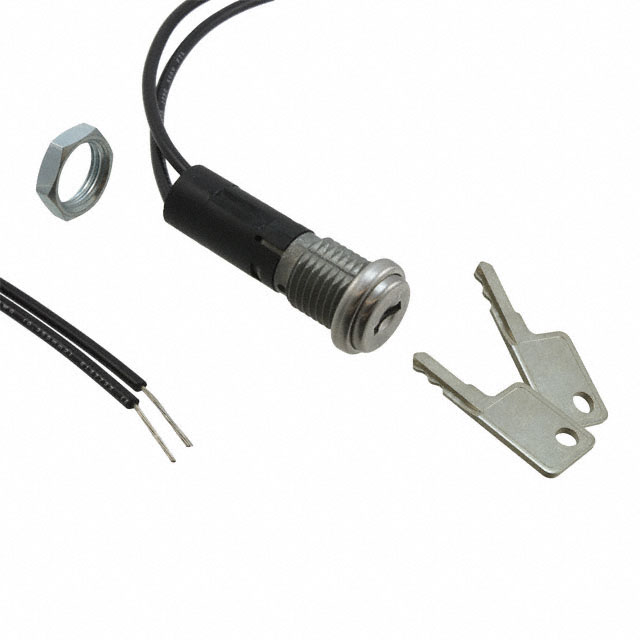

YM06132C2WCNQ
C&K
Manufacturer : C
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : 1 only
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Wire Leads
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : 1 only
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Wire Leads
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
0
773 in stock
YM06132C805NQ
C&K
Manufacturer : C
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : 1 only
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : 1 only
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
0
100 in stock
YM061U2C205NB
C&K
Manufacturer : C
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 20V
Voltage Rating - DC : 20V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Gold
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 20V
Voltage Rating - DC : 20V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Gold
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
0
100 in stock

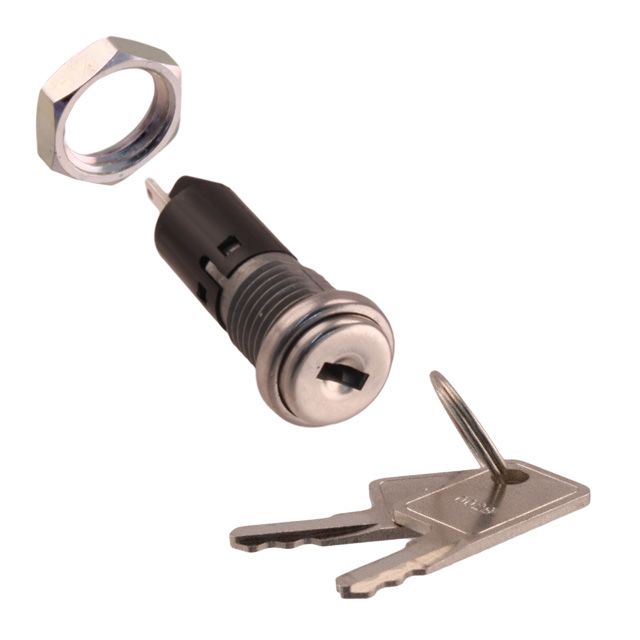

YM061U2C205NQ
C&K
Manufacturer : C
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Quick Connect - 0.110" (2.8mm)
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
0
430 in stock

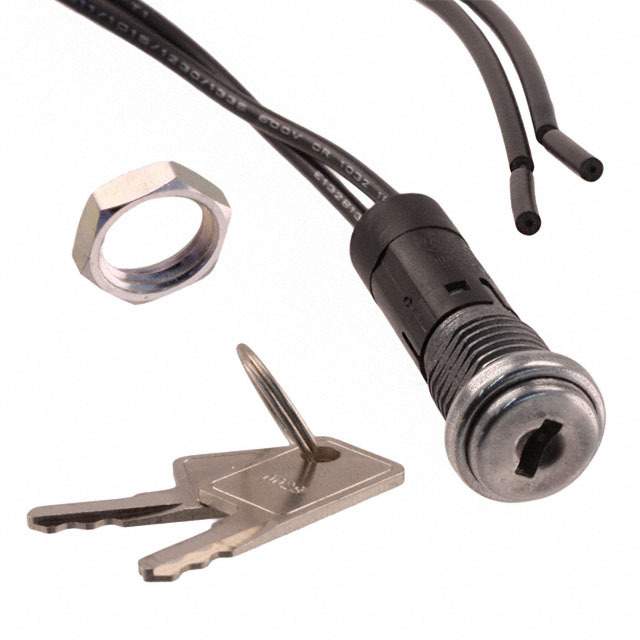

YM061U2C2WCNQ
C&K
Manufacturer : C
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Wire Leads
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
Series : YM
Part Status : Active
Circuit : SPST
Number of Positions : 2
Switch Function : Off-On
Contact Timing : Not Specified
Current Rating : 4A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Flat Key
Key Removable Positions : All
Angle of Throw : 90°
Contact Material : Copper
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Wire Leads
Panel Cutout Dimensions : Circular - 11.99mm Dia
Features : -
Operating Temperature : -
0
441 in stock
