Part Number

Manufacturer

Description

Unit Price

In Stock

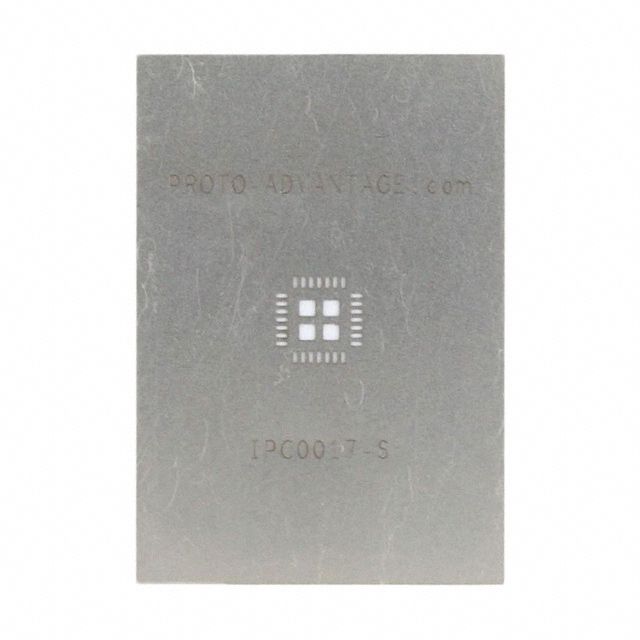

IPC0017-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 28
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Thermal Center Pad : 0.122" L x 0.122" W (3.10mm x 3.10mm)

100 in stock

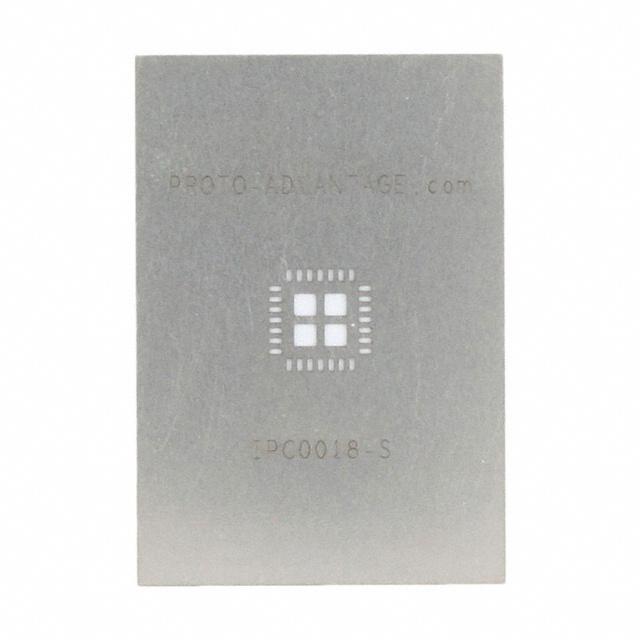

IPC0018-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 28
Pitch : 0.026" (0.65mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Thermal Center Pad : 0.161" L x 0.161" W (4.10mm x 4.10mm)

100 in stock

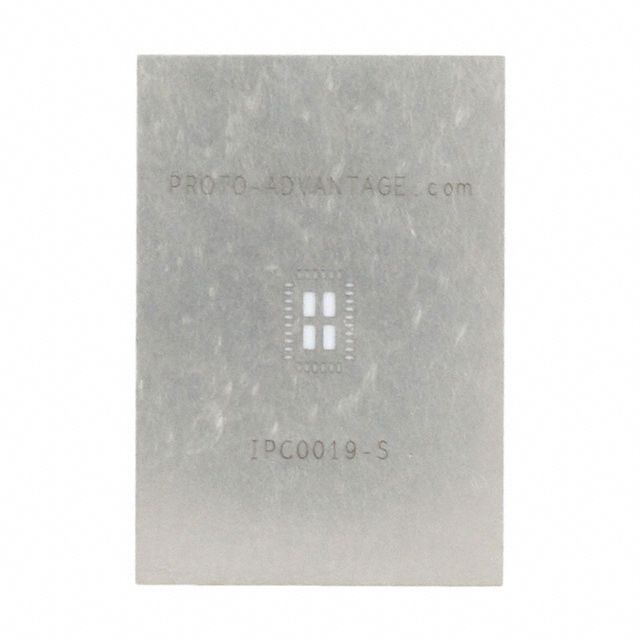

IPC0019-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 32
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.157" L x 0.236" W (4.00mm x 6.00mm)
Thermal Center Pad : 0.098" L x 0.177" W (2.50mm x 4.50mm)

100 in stock

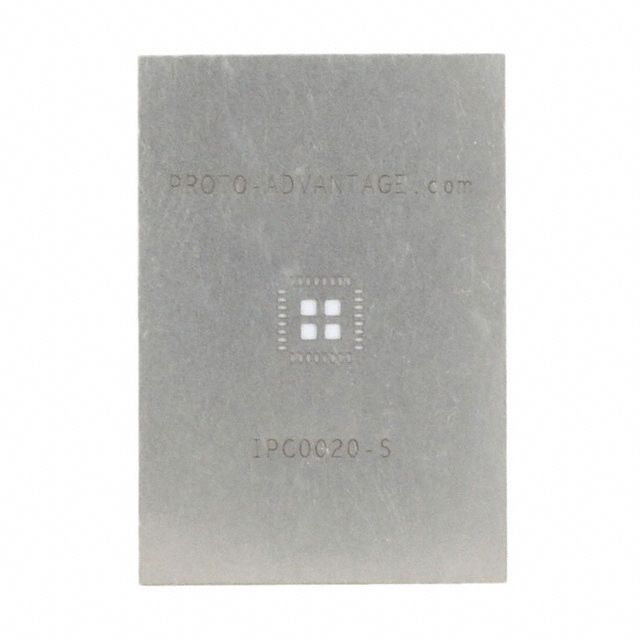

IPC0020-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 32
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Thermal Center Pad : 0.122" L x 0.122" W (3.10mm x 3.10mm)

27 in stock

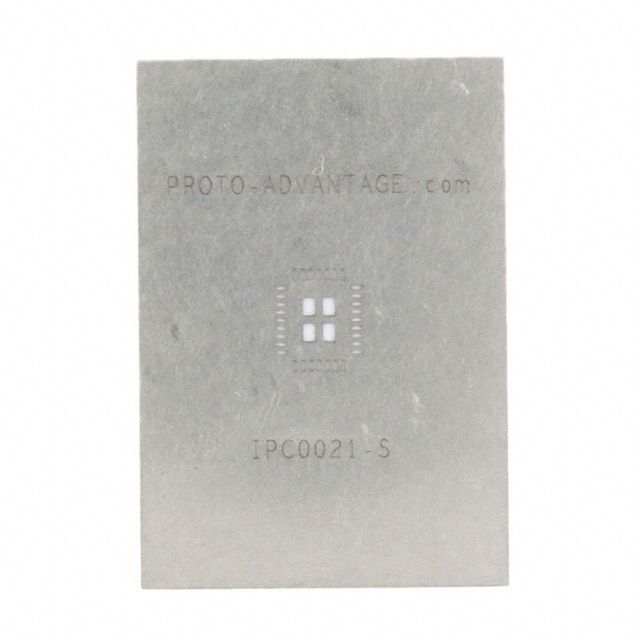

IPC0021-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 32
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.197" L x 0.236" W (5.00mm x 6.00mm)
Thermal Center Pad : 0.098" L x 0.134" W (2.48mm x 3.40mm)

100 in stock

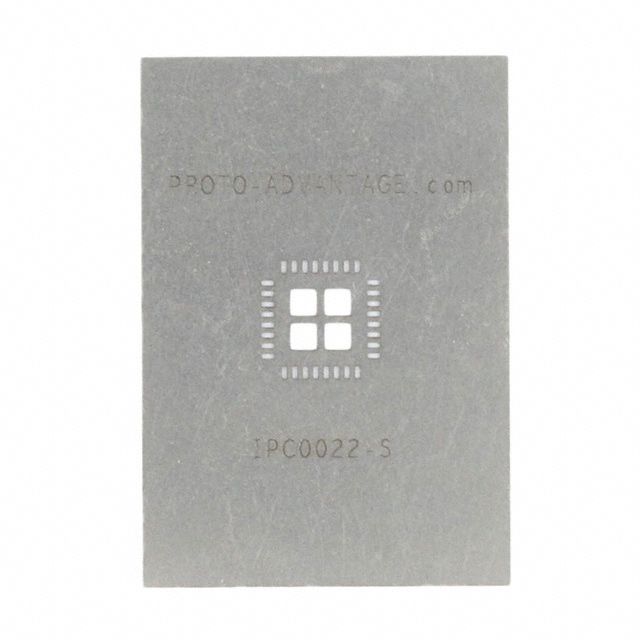

IPC0022-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 32
Pitch : 0.026" (0.65mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Thermal Center Pad : 0.185" L x 0.185" W (4.70mm x 4.70mm)

100 in stock

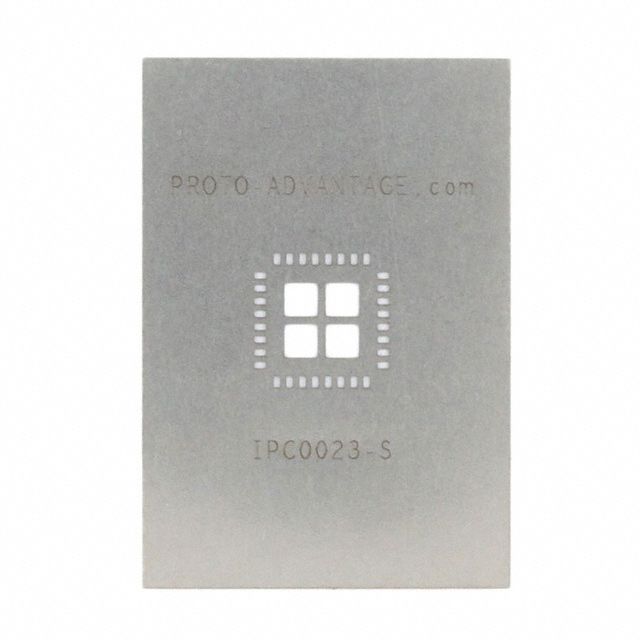

IPC0023-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 32
Pitch : 0.031" (0.80mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.315" L x 0.315" W (8.00mm x 8.00mm)
Thermal Center Pad : 0.228" L x 0.228" W (5.80mm x 5.80mm)

100 in stock

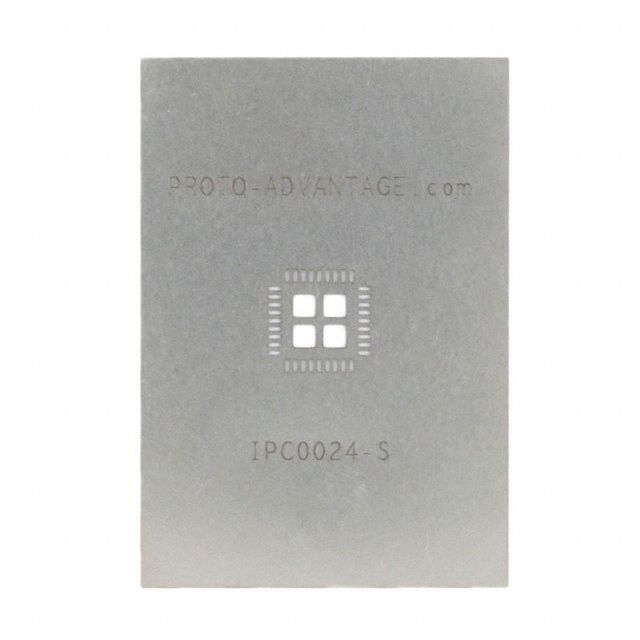

IPC0024-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 36
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Thermal Center Pad : 0.161" L x 0.161" W (4.10mm x 4.10mm)

100 in stock

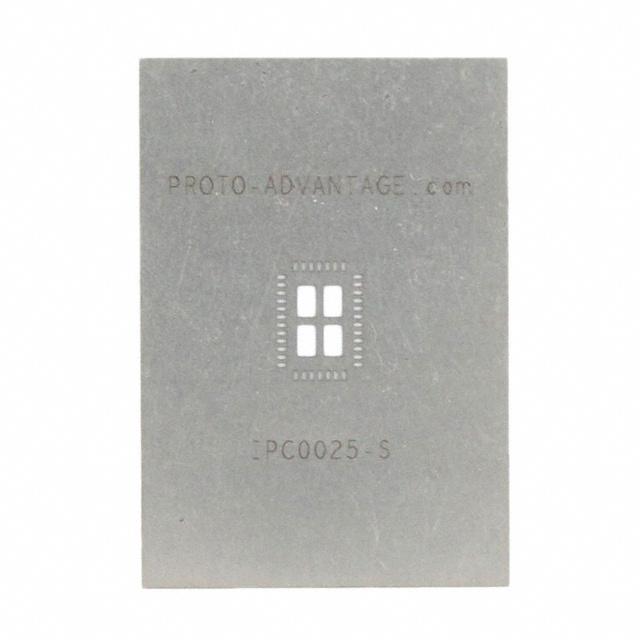

IPC0025-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 38
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.197" L x 0.276" W (5.00mm x 7.00mm)
Thermal Center Pad : 0.138" L x 0.217" W (3.50mm x 5.50mm)

100 in stock

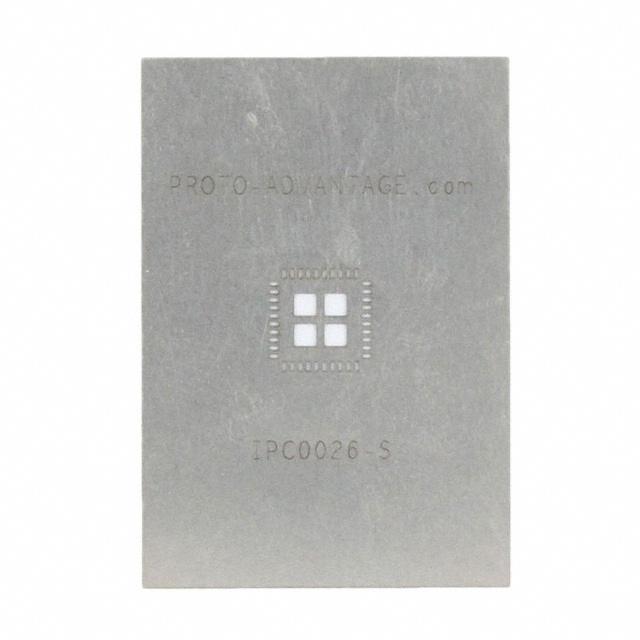

IPC0026-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 40
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Thermal Center Pad : 0.161" L x 0.161" W (4.10mm x 4.10mm)

6 in stock

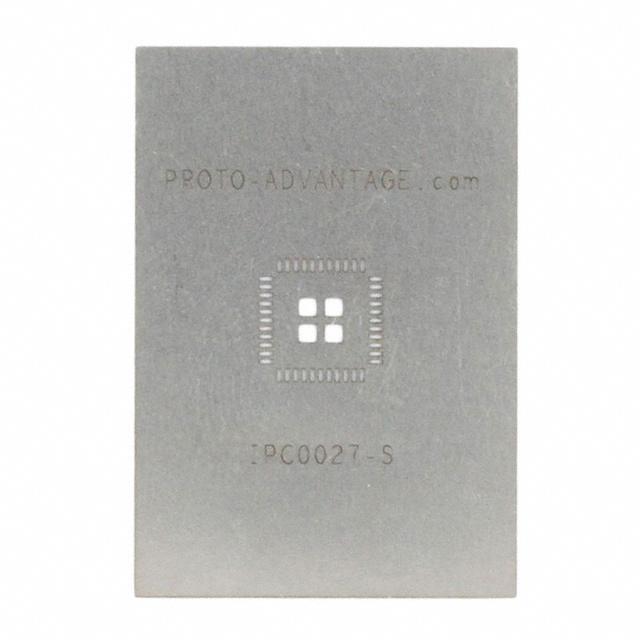

IPC0027-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 44
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Thermal Center Pad : 0.130" L x 0.130" W (3.30mm x 3.30mm)

100 in stock

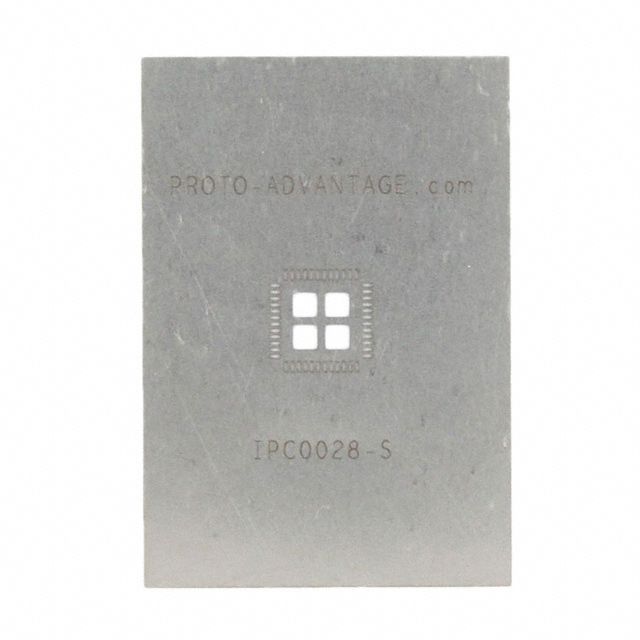

IPC0028-S

Chip Quik, Inc.

Type : QFN/LFCSP
Number of Positions : 48
Pitch : 0.016" (0.40mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.236" L x 0.236" W (6.00mm x 6.00mm)
Thermal Center Pad : 0.173" L x 0.173" W (4.40mm x 4.40mm)

100 in stock
