Part Number
Manufacturer
Description
Unit Price
In Stock
SKY13370-374LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.16 WiMAX
Topology : Absorptive
Circuit : SPDT
Frequency Range : 500MHz ~ 6GHz
Isolation : 24dB
Insertion Loss : 1.15dB
Test Frequency : 5.85GHz
P1dB : 39dBm
IIP3 : 55dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : 6-DFN (1.5x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.16 WiMAX
Topology : Absorptive
Circuit : SPDT
Frequency Range : 500MHz ~ 6GHz
Isolation : 24dB
Insertion Loss : 1.15dB
Test Frequency : 5.85GHz
P1dB : 39dBm
IIP3 : 55dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : 6-DFN (1.5x1.5)
0
30616 in stock

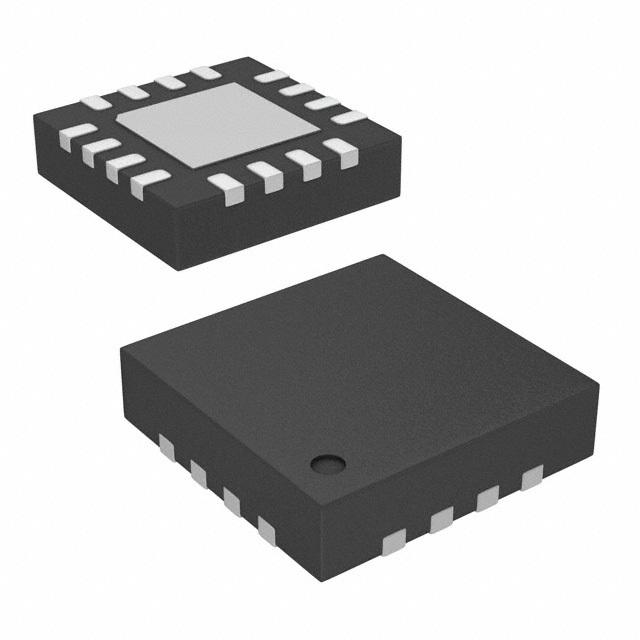

SKY13372-467LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : GSM, ISM, PCS, WCDMA
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.7dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 45dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 95°C
Package / Case : 16-VQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : GSM, ISM, PCS, WCDMA
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.7dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 45dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 95°C
Package / Case : 16-VQFN Exposed Pad
Supplier Device Package : 16-QFN (4x4)
0
8345 in stock

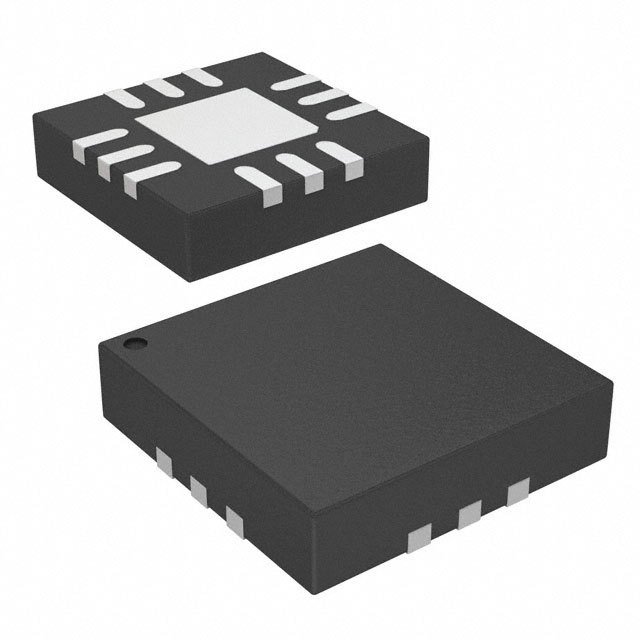

SKY13373-460LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/n
Topology : -
Circuit : SP3T
Frequency Range : 100MHz ~ 6GHz
Isolation : 30dB
Insertion Loss : 0.45dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 70dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 4.8 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/n
Topology : -
Circuit : SP3T
Frequency Range : 100MHz ~ 6GHz
Isolation : 30dB
Insertion Loss : 0.45dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 70dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 4.8 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
33588 in stock
SKY13374-397LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/n
Topology : -
Circuit : SPDT
Frequency Range : 300kHz ~ 6GHz
Isolation : 28dB
Insertion Loss : 0.5dB
Test Frequency : 3GHz
P1dB : 39dBm
IIP3 : 68dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 4.8 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/n
Topology : -
Circuit : SPDT
Frequency Range : 300kHz ~ 6GHz
Isolation : 28dB
Insertion Loss : 0.5dB
Test Frequency : 3GHz
P1dB : 39dBm
IIP3 : 68dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 4.8 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
18380 in stock

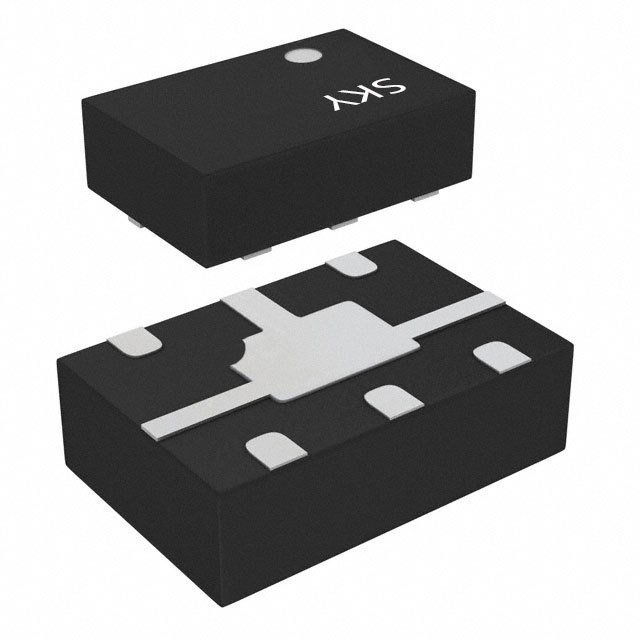

SKY13377-313LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/WiFi, WLAN
Topology : Absorptive
Circuit : SPDT
Frequency Range : 500MHz ~ 6GHz
Isolation : 24dB
Insertion Loss : 1.2dB
Test Frequency : 5.85GHz
P1dB : 39dBm
IIP3 : 57dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-DFN (2x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/WiFi, WLAN
Topology : Absorptive
Circuit : SPDT
Frequency Range : 500MHz ~ 6GHz
Isolation : 24dB
Insertion Loss : 1.2dB
Test Frequency : 5.85GHz
P1dB : 39dBm
IIP3 : 57dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-DFN (2x3)
0
3278 in stock
SKY13380-350LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : GSM, EDGE
Topology : -
Circuit : SP4T
Frequency Range : 20MHz ~ 3GHz
Isolation : 21dB
Insertion Loss : 0.6dB
Test Frequency : 2GHz
P1dB : 39dBm
IIP3 : -
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : GSM, EDGE
Topology : -
Circuit : SP4T
Frequency Range : 20MHz ~ 3GHz
Isolation : 21dB
Insertion Loss : 0.6dB
Test Frequency : 2GHz
P1dB : 39dBm
IIP3 : -
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
14292 in stock

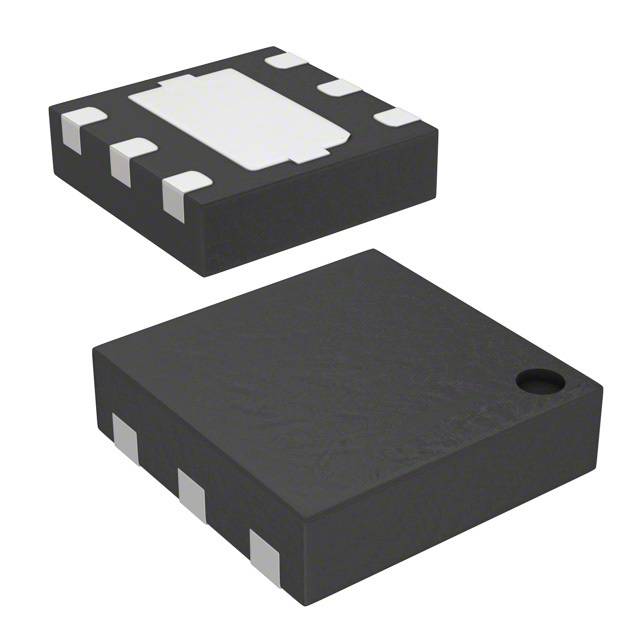

SKY13381-374LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/n
Topology : Reflective
Circuit : DPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 14dB
Insertion Loss : 1.4dB
Test Frequency : 6GHz
P1dB : 38dBm
IIP3 : 62dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : 6-MLPD (1.5x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : 802.11a/b/g/n
Topology : Reflective
Circuit : DPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 14dB
Insertion Loss : 1.4dB
Test Frequency : 6GHz
P1dB : 38dBm
IIP3 : 62dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : 6-MLPD (1.5x1.5)
0
61027 in stock

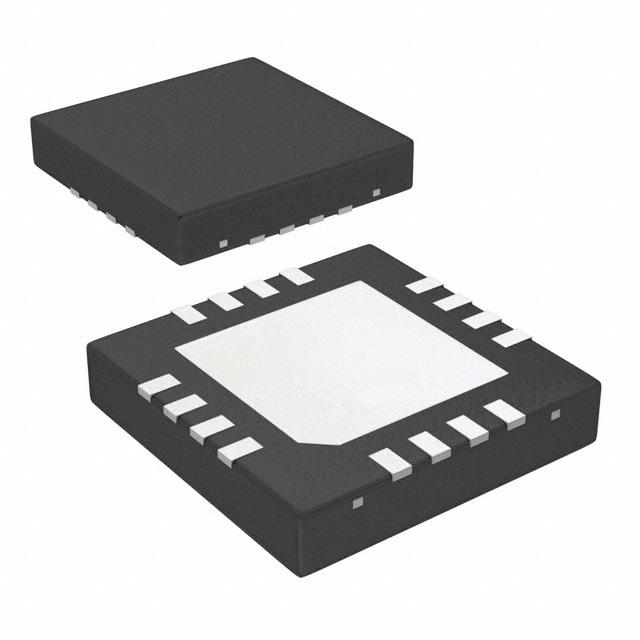

SKY13384-350LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SP4T
Frequency Range : 20MHz ~ 4GHz
Isolation : 36dB
Insertion Loss : 1.2dB
Test Frequency : 4GHz
P1dB : 30dBm
IIP3 : 51dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SP4T
Frequency Range : 20MHz ~ 4GHz
Isolation : 36dB
Insertion Loss : 1.2dB
Test Frequency : 4GHz
P1dB : 30dBm
IIP3 : 51dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
100 in stock
SKY13385-460LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : 802.11b/g Bluetooth
Topology : Reflective
Circuit : SP3T
Frequency Range : 100MHz ~ 3.5GHz
Isolation : 35dB
Insertion Loss : 0.45dB
Test Frequency : 2.5GHz, 1GHz
P1dB : -
IIP3 : 57dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : 802.11b/g Bluetooth
Topology : Reflective
Circuit : SP3T
Frequency Range : 100MHz ~ 3.5GHz
Isolation : 35dB
Insertion Loss : 0.45dB
Test Frequency : 2.5GHz, 1GHz
P1dB : -
IIP3 : 57dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
100 in stock
SKY13388-465LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
RF Type : CDMA
Topology : -
Circuit : SP4T
Frequency Range : 100MHz ~ 2.7GHz
Isolation : 21dB
Insertion Loss : 0.6dB
Test Frequency : 2.5GHz
P1dB : 36dBm
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
RF Type : CDMA
Topology : -
Circuit : SP4T
Frequency Range : 100MHz ~ 2.7GHz
Isolation : 21dB
Insertion Loss : 0.6dB
Test Frequency : 2.5GHz
P1dB : 36dBm
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
100 in stock
SKY13395-397LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : -
Topology : -
Circuit : DPDT
Frequency Range : 100MHz ~ 4GHz
Isolation : 21dB
Insertion Loss : 0.7dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 62dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 1.8 V ~ 5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : -
Topology : -
Circuit : DPDT
Frequency Range : 100MHz ~ 4GHz
Isolation : 21dB
Insertion Loss : 0.7dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 62dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 1.8 V ~ 5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
100 in stock
SKY13396-397LF
Skyworks Solutions, Inc.
Manufacturer : Skyworks Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : -
Circuit : DPDT
Frequency Range : 700MHz ~ 3GHz
Isolation : 17dB
Insertion Loss : 0.6dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 63dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 1.8 V ~ 3.1 V
Operating Temperature : -30°C ~ 90°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : -
Circuit : DPDT
Frequency Range : 700MHz ~ 3GHz
Isolation : 17dB
Insertion Loss : 0.6dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 63dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 1.8 V ~ 3.1 V
Operating Temperature : -30°C ~ 90°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
5839 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
