Part Number
Manufacturer
Description
Unit Price
In Stock
HMC321LP4TR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SP8T
Frequency Range : DC ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.7dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-SMT (4x4)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SP8T
Frequency Range : DC ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.7dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-SMT (4x4)
0
100 in stock
HMC322ALP4E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 40dB
Insertion Loss : 2.5dB
Test Frequency : 6GHz, 8GHz
P1dB : 26dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 40dB
Insertion Loss : 2.5dB
Test Frequency : 6GHz, 8GHz
P1dB : 26dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
243 in stock
HMC322ALP4ETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : General Purpose
Topology : -
Circuit : SP8T
Frequency Range : DC ~ 8GHz
Isolation : 35dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 26dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -4.2 V ~ -5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : General Purpose
Topology : -
Circuit : SP8T
Frequency Range : DC ~ 8GHz
Isolation : 35dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 26dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -4.2 V ~ -5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
10 in stock
HMC322LP4
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
100 in stock
HMC322LP4E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SP8T
Frequency Range : DC ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SP8T
Frequency Range : DC ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
101 in stock

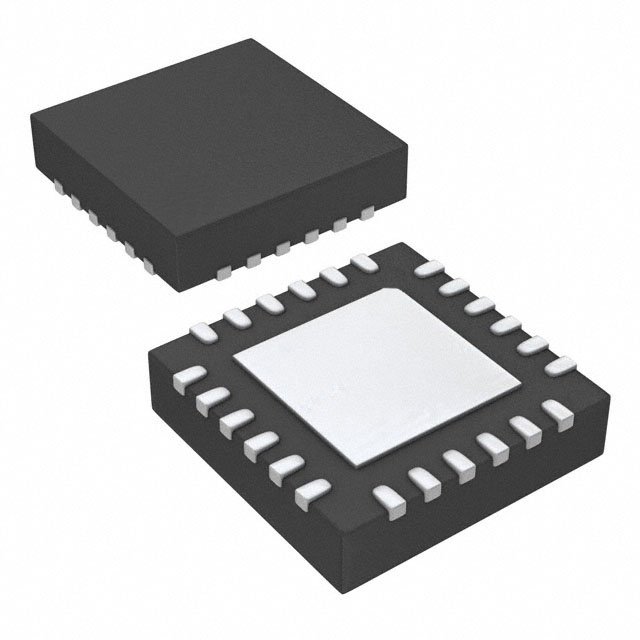

HMC322LP4ETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
100 in stock
HMC322LP4TR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 8GHz
Isolation : 25dB
Insertion Loss : 2.5dB
Test Frequency : 8GHz
P1dB : 23dBm
IIP3 : 40dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 24-VFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
100 in stock
HMC322-SX
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
RF Type : VSAT
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 10GHz
Isolation : 32dB
Insertion Loss : 2.1dB
Test Frequency : 6GHz
P1dB : 23dBm
IIP3 : 38dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : Die
Supplier Device Package : Die
Packaging : Tray
Series : -
Part Status : Obsolete
RF Type : VSAT
Topology : Absorptive
Circuit : SP8T
Frequency Range : 0Hz ~ 10GHz
Isolation : 32dB
Insertion Loss : 2.1dB
Test Frequency : 6GHz
P1dB : 23dBm
IIP3 : 38dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : Die
Supplier Device Package : Die
0
100 in stock
HMC336MS8G
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
0
100 in stock
HMC336MS8GE
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
Packaging : Strip
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
0
100 in stock
HMC336MS8GETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
0
100 in stock
HMC336MS8GTR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 6GHz
Isolation : 42dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 25dBm
IIP3 : 42dBm
Features : -
Impedance : 50 Ohm, 75 Ohm
Voltage - Supply : 5V
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOPG
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
