Part Number
Manufacturer
Description
Unit Price
In Stock
1000615-A
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : PCB Trace
Number of Bands : 4
VSWR : 2, 2.5, 2, 2.5
Return Loss : -
Gain : 2.5dBi, 5dBi, 5dBi, 5dBi
Power - Max : -
Features : -
Termination : Cable (100mm)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.033" (0.85mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : PCB Trace
Number of Bands : 4
VSWR : 2, 2.5, 2, 2.5
Return Loss : -
Gain : 2.5dBi, 5dBi, 5dBi, 5dBi
Power - Max : -
Features : -
Termination : Cable (100mm)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.033" (0.85mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
1434 in stock
1000802
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : PCB Trace
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 3.5dBi
Power - Max : -
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.087" (2.20mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : PCB Trace
Number of Bands : 1
VSWR : 2.1
Return Loss : -
Gain : 3.5dBi
Power - Max : -
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.087" (2.20mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
3821 in stock
1001011
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.561GHz, 1.575GHz
Frequency Range : 1.57GHz ~ 1.58GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : -1.8dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : GPS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Discontinued at
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.561GHz, 1.575GHz
Frequency Range : 1.57GHz ~ 1.58GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : -1.8dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : GPS
0
310 in stock
1001013
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.09
Return Loss : -
Gain : 1.2dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Prestta™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.09
Return Loss : -
Gain : 1.2dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
72645 in stock
1001140
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Tray
Series : -
Part Status : Obsolete
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 2dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 4.409" (112.00mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
Packaging : Tray
Series : -
Part Status : Obsolete
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Whip, Tilt
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 2dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 4.409" (112.00mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
100 in stock
1001312
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Savvi™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.8
Return Loss : -
Gain : 1.72dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.022" (0.55mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Savvi™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 1.8
Return Loss : -
Gain : 1.72dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.022" (0.55mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
48472 in stock

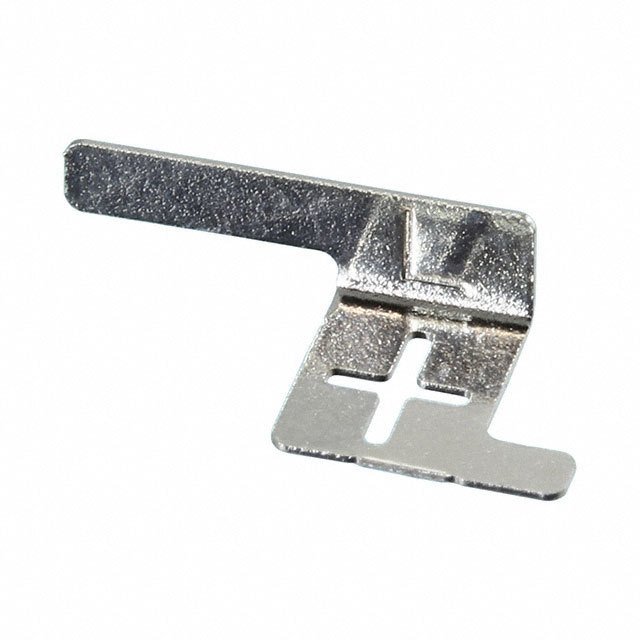

1001388
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5GHz
Frequency Range : 4.9GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 5dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.087" (2.20mm)
Applications : Wi-Fi, WLAN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5GHz
Frequency Range : 4.9GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 5dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.087" (2.20mm)
Applications : Wi-Fi, WLAN
0
1480 in stock

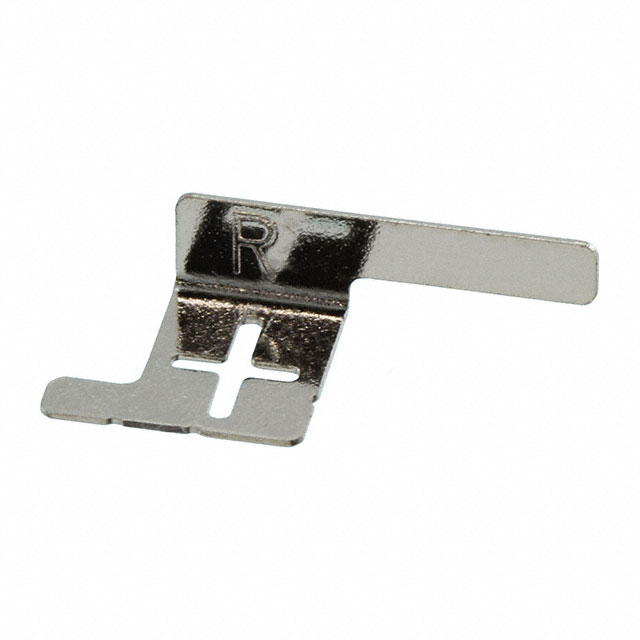

1001430
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5GHz
Frequency Range : 4.9GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 7dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.087" (2.20mm)
Applications : Wi-Fi, WLAN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5GHz
Frequency Range : 4.9GHz ~ 5.9GHz
Antenna Type : Stamped Metal
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 7dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.087" (2.20mm)
Applications : Wi-Fi, WLAN
0
1480 in stock

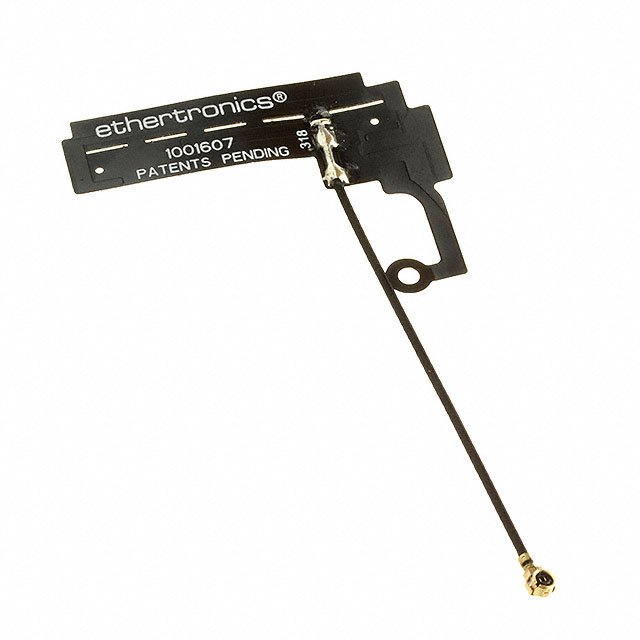

1001607
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : -
Series : *
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : PCB Trace
Number of Bands : 5
VSWR : 3
Return Loss : -
Gain : -
Power - Max : 2W
Features : -
Termination : -
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.049" (1.25mm)
Applications : CDMA, DCS, GSM, PCS, UMTS, WCDMA
Packaging : -
Series : *
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : PCB Trace
Number of Bands : 5
VSWR : 3
Return Loss : -
Gain : -
Power - Max : 2W
Features : -
Termination : -
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.049" (1.25mm)
Applications : CDMA, DCS, GSM, PCS, UMTS, WCDMA
0
963 in stock

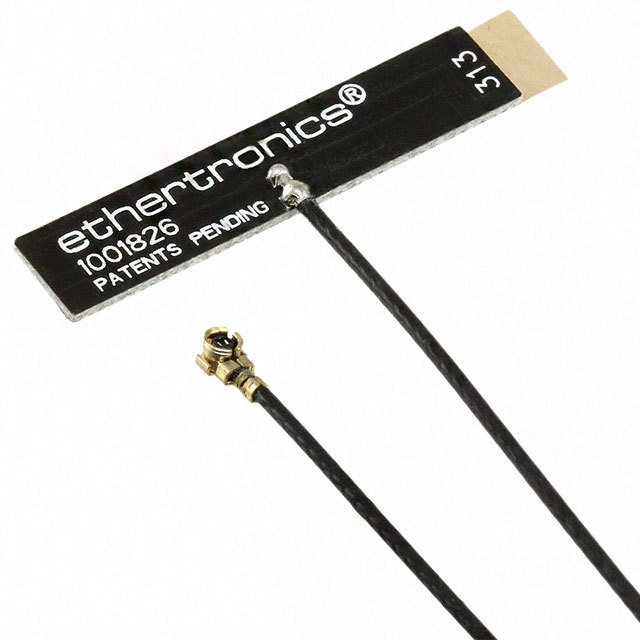

1001826
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 868MHz ~ 870MHz
Antenna Type : Flat Bar
Number of Bands : 1
VSWR : -
Return Loss : -15dB
Gain : 0dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 0.031" (0.80mm)
Applications : ISM, LoRa, LPWAN, Sigfox
Packaging : Bulk
Series : Prestta™
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 868MHz ~ 870MHz
Antenna Type : Flat Bar
Number of Bands : 1
VSWR : -
Return Loss : -15dB
Gain : 0dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Connector Mount
Height (Max) : 0.031" (0.80mm)
Applications : ISM, LoRa, LPWAN, Sigfox
0
12829 in stock
1001826-S
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -
0
967 in stock

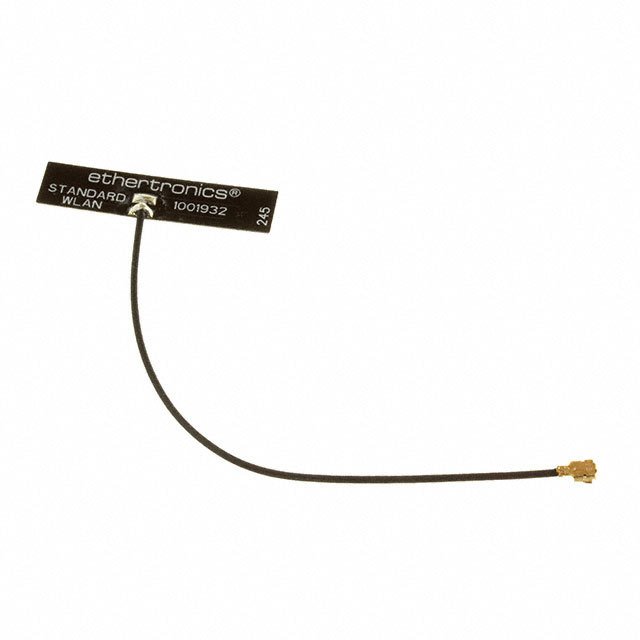

1001932
Ethertronics
Manufacturer : Ethertronics/AVX
Packaging : -
Series : *
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : PCB Trace
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi
Power - Max : -
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.016" (0.40mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
Packaging : -
Series : *
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5GHz
Frequency Range : 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type : PCB Trace
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi
Power - Max : -
Features : -
Termination : Cable (100mm) - U.FL
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.016" (0.40mm)
Applications : Bluetooth, Wi-Fi, WLAN, Zigbee™
0
1156 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
