Part Number
Manufacturer
Description
Unit Price
In Stock

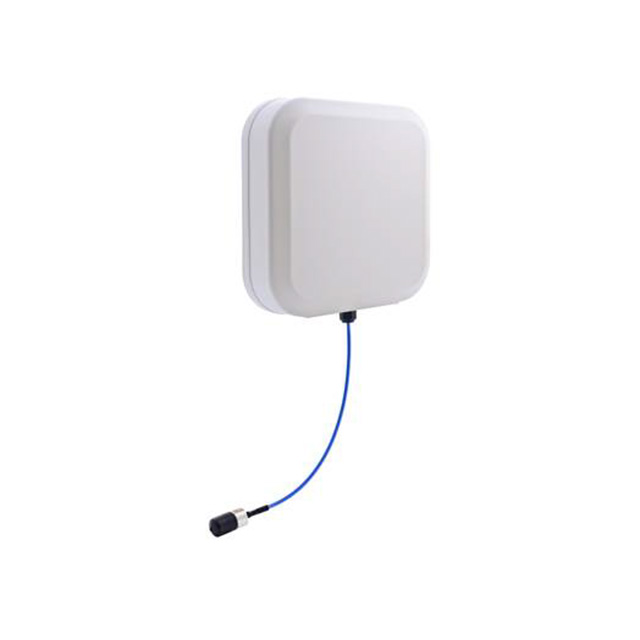

PAV69278PO-30D43F
Laird - Antennas
Manufacturer : Laird Technologies IAS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
Frequency Range : 698MHz ~ 960MHz, 1.7 ~ 2.7GHz
Antenna Type : Panel
Number of Bands : 2
VSWR : 1.8, 1.7, 1.7, 1.8, 1.7, 1.9, 1.7, 1.5
Return Loss : -
Gain : 7.6dBi, 7.8dBi, 8.8dBi, 8.7dBi, 7.8dBi
Power - Max : 50W
Features : -
Termination : Cable (300mm) - DIN Female
Ingress Protection : IP67
Mounting Type : Bracket Mount
Height (Max) : 2.413" (61.30mm)
Applications : AWS, GSM, LTE, PCS, UMTS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
Frequency Range : 698MHz ~ 960MHz, 1.7 ~ 2.7GHz
Antenna Type : Panel
Number of Bands : 2
VSWR : 1.8, 1.7, 1.7, 1.8, 1.7, 1.9, 1.7, 1.5
Return Loss : -
Gain : 7.6dBi, 7.8dBi, 8.8dBi, 8.7dBi, 7.8dBi
Power - Max : 50W
Features : -
Termination : Cable (300mm) - DIN Female
Ingress Protection : IP67
Mounting Type : Bracket Mount
Height (Max) : 2.413" (61.30mm)
Applications : AWS, GSM, LTE, PCS, UMTS
0
100 in stock
PAV865014-FNF
Laird - Antennas
Manufacturer : Laird Technologies IAS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 867MHz
Frequency Range : 865MHz ~ 870MHz
Antenna Type : Panel
Number of Bands : 1
VSWR : 1.4
Return Loss : -
Gain : 13.8dBi
Power - Max : 6W
Features : -
Termination : Connector, N Female
Ingress Protection : IP67
Mounting Type : Chassis Mount
Height (Max) : 1.417" (36.00mm)
Applications : -
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 867MHz
Frequency Range : 865MHz ~ 870MHz
Antenna Type : Panel
Number of Bands : 1
VSWR : 1.4
Return Loss : -
Gain : 13.8dBi
Power - Max : 6W
Features : -
Termination : Connector, N Female
Ingress Protection : IP67
Mounting Type : Chassis Mount
Height (Max) : 1.417" (36.00mm)
Applications : -
0
100 in stock
PAV90209H-91NM
Laird - Antennas
Manufacturer : Laird Technologies IAS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Panel
Number of Bands : 1
VSWR : 1.3
Return Loss : -
Gain : 9dBi
Power - Max : 10W
Features : -
Termination : Connector, N Male
Ingress Protection : IP67
Mounting Type : Chassis Mount
Height (Max) : 1.320" (33.53mm)
Applications : -
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Panel
Number of Bands : 1
VSWR : 1.3
Return Loss : -
Gain : 9dBi
Power - Max : 10W
Features : -
Termination : Connector, N Male
Ingress Protection : IP67
Mounting Type : Chassis Mount
Height (Max) : 1.320" (33.53mm)
Applications : -
0
100 in stock
PAV90209H-FNF
Laird - Antennas
Manufacturer : Laird Technologies IAS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Panel
Number of Bands : 1
VSWR : 1.3
Return Loss : -
Gain : 9dBi
Power - Max : 10W
Features : -
Termination : Connector, N Female
Ingress Protection : IP67
Mounting Type : Chassis Mount
Height (Max) : 1.320" (33.53mm)
Applications : -
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Panel
Number of Bands : 1
VSWR : 1.3
Return Loss : -
Gain : 9dBi
Power - Max : 10W
Features : -
Termination : Connector, N Female
Ingress Protection : IP67
Mounting Type : Chassis Mount
Height (Max) : 1.320" (33.53mm)
Applications : -
0
2 in stock

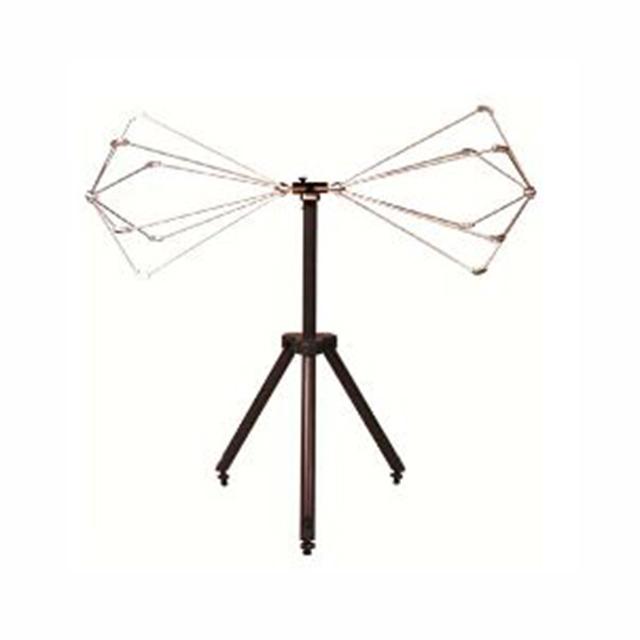

PBA-2030
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : VHF (f
160MHz
20MHz ~ 300MHz
Biconical
1
2.5
-
-
100W
-
Connector, N Female
-
Bracket Mount
28.346" (720.00mm)
-
Frequency (Center/Band) : 160MHz
Frequency Range : 20MHz ~ 300MHz
Antenna Type : Biconical
Number of Bands : 1
VSWR : 2.5
Return Loss : -
Gain : -
Power - Max : 100W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 28.346" (720.00mm)
Applications : -
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : VHF (f
160MHz
20MHz ~ 300MHz
Biconical
1
2.5
-
-
100W
-
Connector, N Female
-
Bracket Mount
28.346" (720.00mm)
-
Frequency (Center/Band) : 160MHz
Frequency Range : 20MHz ~ 300MHz
Antenna Type : Biconical
Number of Bands : 1
VSWR : 2.5
Return Loss : -
Gain : -
Power - Max : 100W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 28.346" (720.00mm)
Applications : -
0
100 in stock

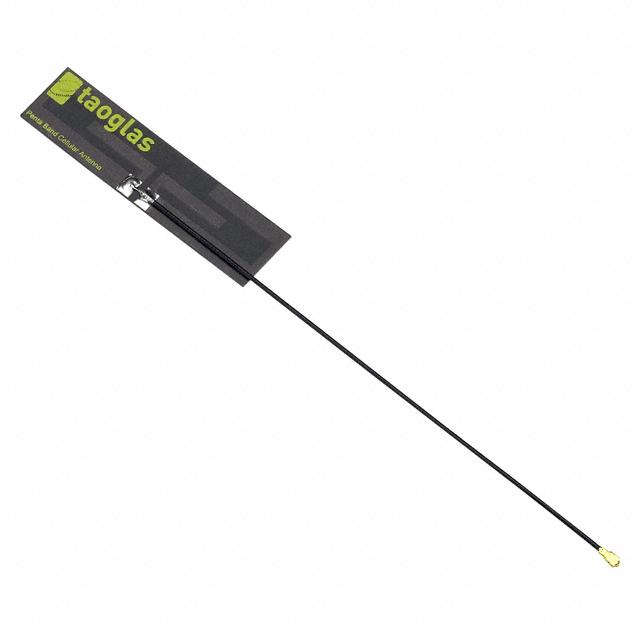

PC.104.07.0165C
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -7dB, -10dB
Gain : 0.99dBi, 2.39dBi
Power - Max : -
Features : -
Termination : Connector, IPEX
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.039" (1.00mm)
Applications : GSM, UMTS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -7dB, -10dB
Gain : 0.99dBi, 2.39dBi
Power - Max : -
Features : -
Termination : Connector, IPEX
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.039" (1.00mm)
Applications : GSM, UMTS
0
280 in stock

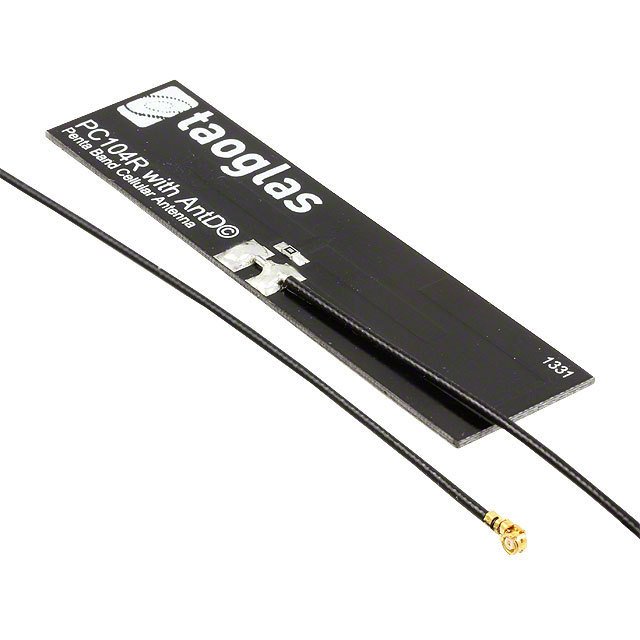

PC104R.A.07.0165C
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -7dB, -10dB
Gain : 0.99dBi, 2.39dBi
Power - Max : 50W
Features : -
Termination : Connector, IPEX
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.039" (1.00mm)
Applications : CDMA, GSM, UMTS
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -7dB, -10dB
Gain : 0.99dBi, 2.39dBi
Power - Max : 50W
Features : -
Termination : Connector, IPEX
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.039" (1.00mm)
Applications : CDMA, GSM, UMTS
0
87 in stock

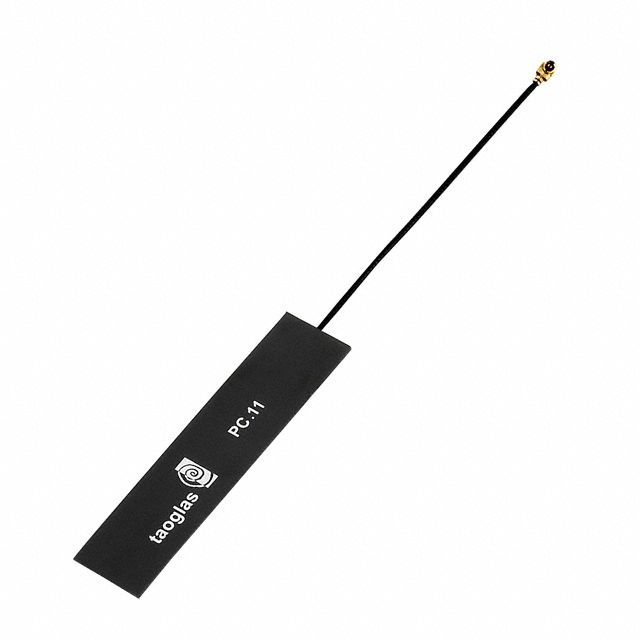

PC11.07.0100A
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : TheStripe™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.2GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 3dBi, 4.5dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - IPEX MHFI
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : Bluetooth, Wi-Fi, Zigbee™
Packaging : Bulk
Series : TheStripe™
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.2GHz
Frequency Range : 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 3dBi, 4.5dBi
Power - Max : 2W
Features : -
Termination : Cable (100mm) - IPEX MHFI
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : Bluetooth, Wi-Fi, Zigbee™
0
2508 in stock

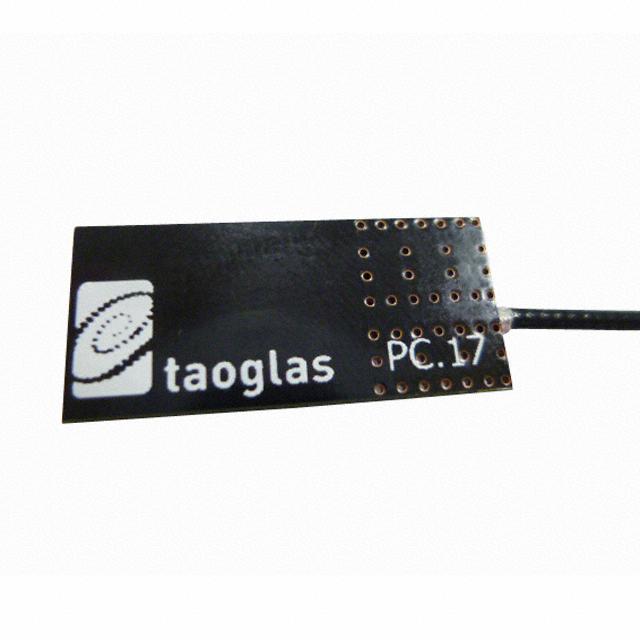

PC17.07.0070A
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : PCB Trace
Number of Bands : 1
VSWR : 1.5
Return Loss : -12dB
Gain : 0.9dBi
Power - Max : 2W
Features : -
Termination : Connector, IPEX MHFI (U.FL)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : Bluetooth, WLAN, Zigbee™
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : PCB Trace
Number of Bands : 1
VSWR : 1.5
Return Loss : -12dB
Gain : 0.9dBi
Power - Max : 2W
Features : -
Termination : Connector, IPEX MHFI (U.FL)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : Bluetooth, WLAN, Zigbee™
0
314 in stock

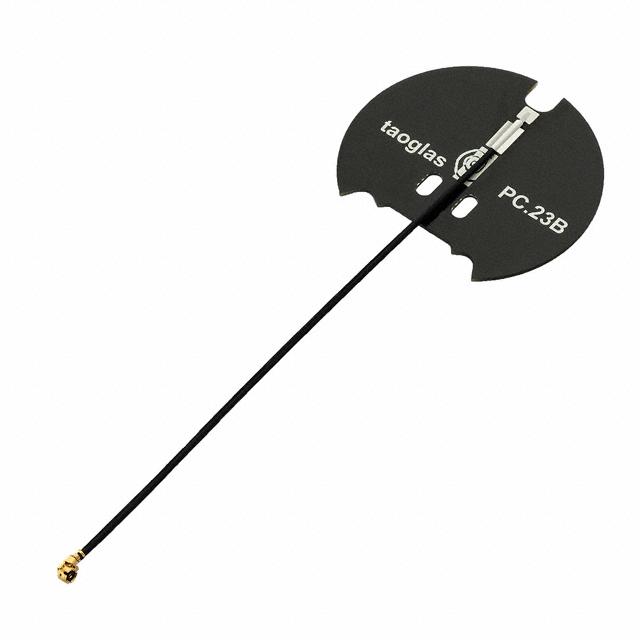

PC23.07.0100A
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2
Return Loss : -25dB, -12dB
Gain : 0dBi
Power - Max : 10W
Features : -
Termination : Connector, IPEX MHFI (U.FL)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : GSM
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2
Return Loss : -25dB, -12dB
Gain : 0dBi
Power - Max : 10W
Features : -
Termination : Connector, IPEX MHFI (U.FL)
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : GSM
0
87 in stock

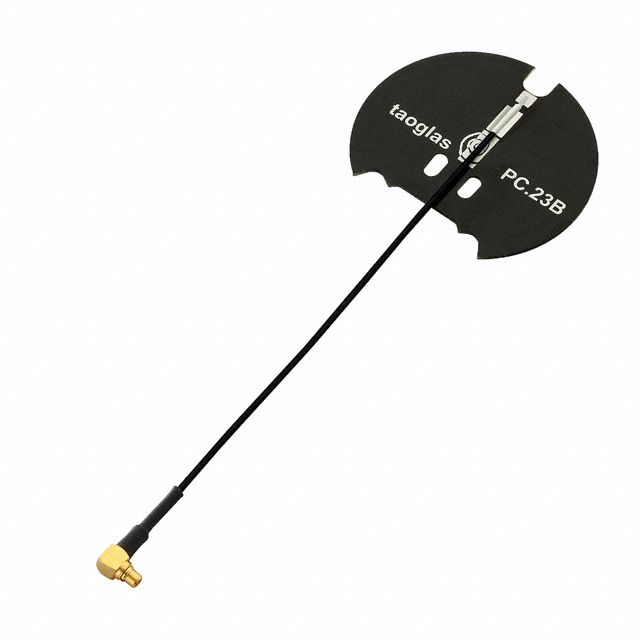

PC23.09.0100A
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2
Return Loss : -25dB, -12dB
Gain : 0dBi
Power - Max : 10W
Features : -
Termination : Connector, MMCX Male
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : GSM
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Flat Patch
Number of Bands : 2
VSWR : 2
Return Loss : -25dB, -12dB
Gain : 0dBi
Power - Max : 10W
Features : -
Termination : Connector, MMCX Male
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.031" (0.80mm)
Applications : GSM
0
134 in stock
PC24.07.0100A
Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : TheStripe™
Part Status : Obsolete
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Flat Patch
Number of Bands : 4
VSWR : 2
Return Loss : -12dB, -25dB, -12dB, -10dB
Gain : 0dBi
Power - Max : 10W
Features : -
Termination : Cable (100mm) - IPEX MHF1
Ingress Protection : -
Mounting Type : Chassis Mount
Height (Max) : 0.031" (0.80mm)
Applications : AMPS, DCS, GSM, PCS
Packaging : Bulk
Series : TheStripe™
Part Status : Obsolete
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 850MHz, 900MHz, 1.8GHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Flat Patch
Number of Bands : 4
VSWR : 2
Return Loss : -12dB, -25dB, -12dB, -10dB
Gain : 0dBi
Power - Max : 10W
Features : -
Termination : Cable (100mm) - IPEX MHF1
Ingress Protection : -
Mounting Type : Chassis Mount
Height (Max) : 0.031" (0.80mm)
Applications : AMPS, DCS, GSM, PCS
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
