- Relays
- Signal Relays, Up to 2 Amps
Part Number
Manufacturer
Description
Unit Price
In Stock

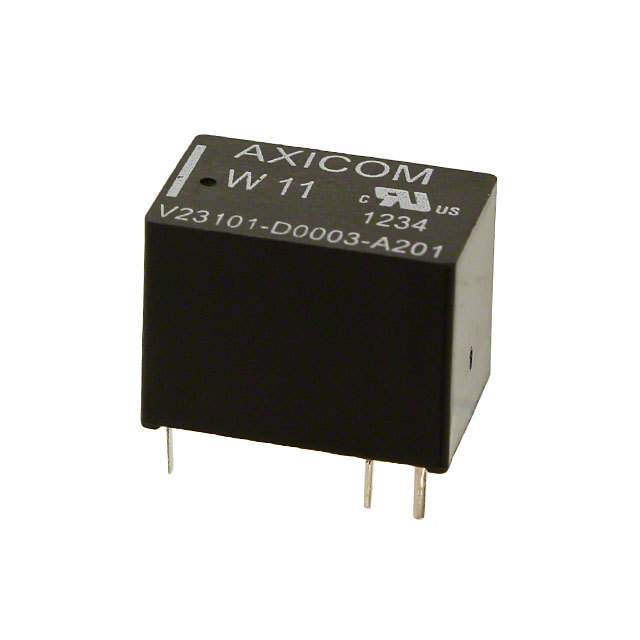

V23101D 3A201
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 89.2mA
Coil Voltage : 5VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.5 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 89.2mA
Coil Voltage : 5VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.5 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
510 in stock

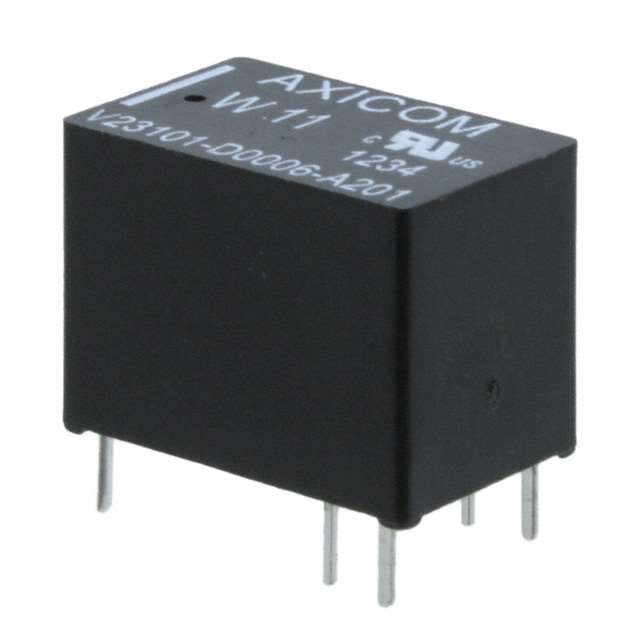

V23101D 6A201
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
749 in stock

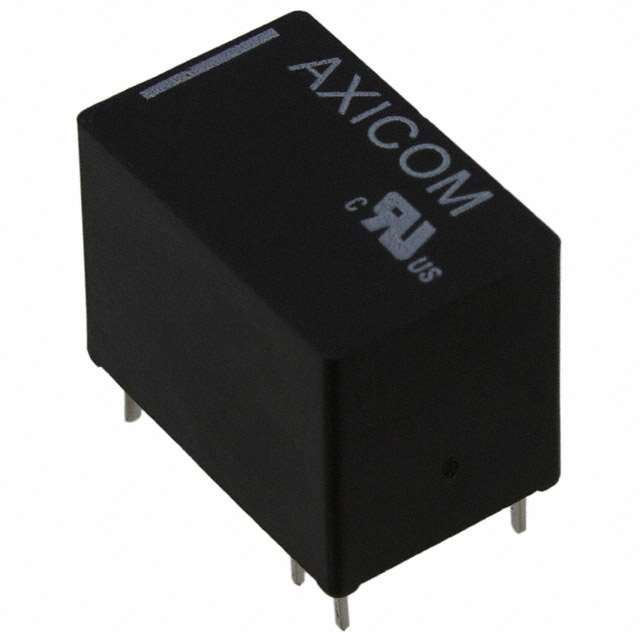

V23101D 6B201
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
263 in stock

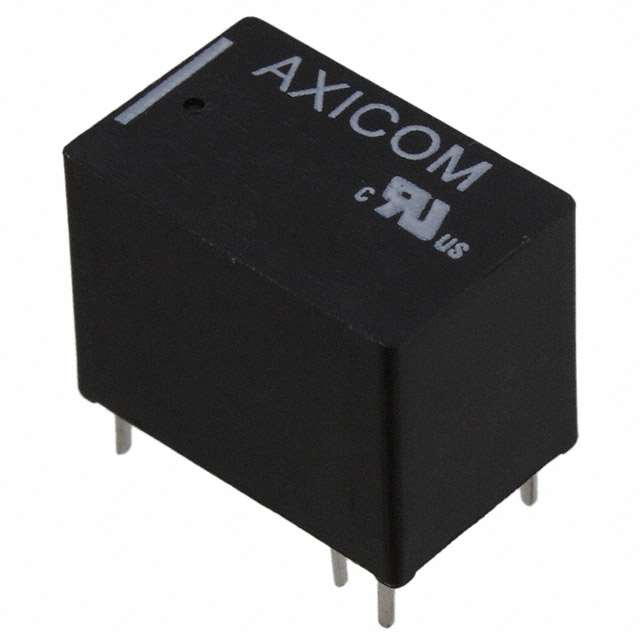

V23101D 7A201
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.8mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.8mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
494 in stock

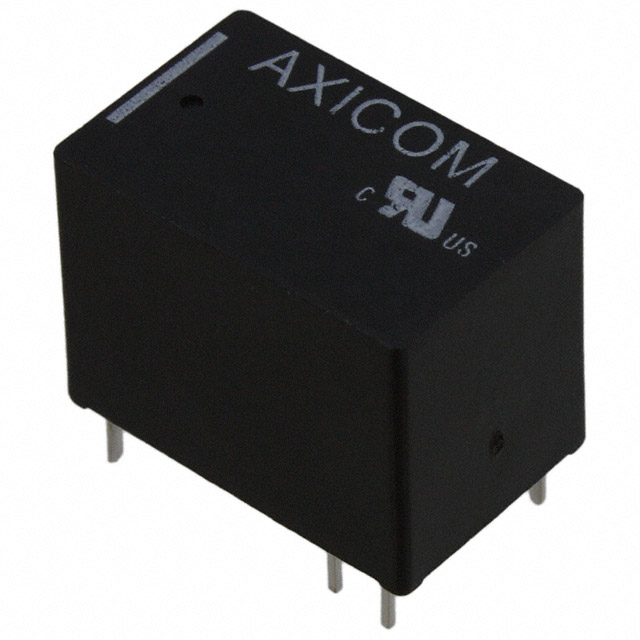

V23101D 7B201
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.8mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.8mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
621 in stock

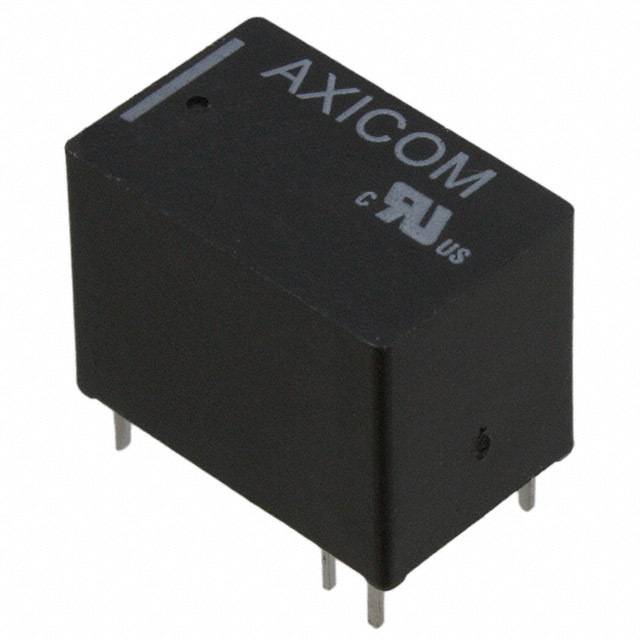

V23101D1106B201
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 17.2mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : V23101, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 17.2mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1.25A
Switching Voltage : 125VAC, 120VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
349 in stock
V23111A1024B301
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : V23111
Part Status : Obsolete
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 6.3mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1A
Switching Voltage : 24VDC - Nom
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : -
Release Time : -
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -
Packaging : Tube
Series : V23111
Part Status : Obsolete
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 6.3mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 1A
Switching Voltage : 24VDC - Nom
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : -
Release Time : -
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -
0
100 in stock
V23154M721C104
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : V23154, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 27.0mA
Coil Voltage : 24VDC
Contact Form : DPDT (2 Form C)
Contact Rating (Current) : 2A
Switching Voltage : 125VAC, 150VDC - Max
Turn On Voltage (Max) : 14.5 VDC
Turn Off Voltage (Min) : -
Operate Time : 7.5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 70°C
Packaging : Bulk
Series : V23154, AXICOM
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 27.0mA
Coil Voltage : 24VDC
Contact Form : DPDT (2 Form C)
Contact Rating (Current) : 2A
Switching Voltage : 125VAC, 150VDC - Max
Turn On Voltage (Max) : 14.5 VDC
Turn Off Voltage (Min) : -
Operate Time : 7.5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 70°C
0
100 in stock
