Part Number
Manufacturer
Description
Unit Price
In Stock

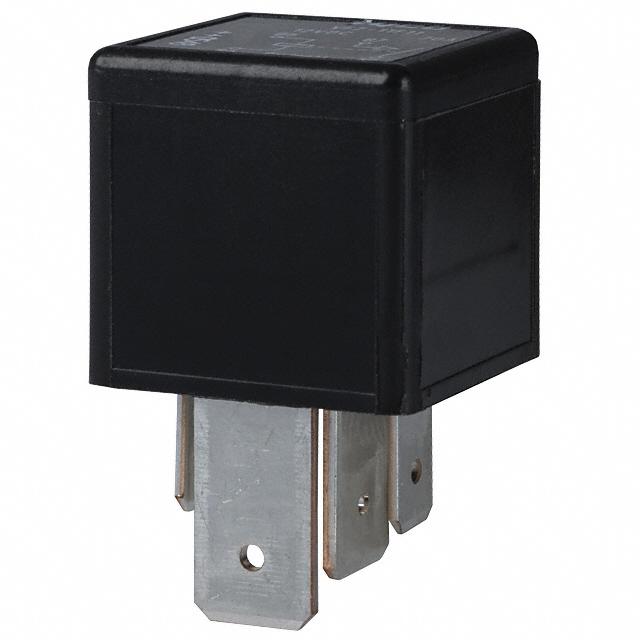

VF7-11H11
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VF7
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 83.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 70A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 14.4 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 2ms
Features : -
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VF7
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 83.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 70A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 14.4 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 2ms
Features : -
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
100 in stock
VF7-11H12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VF7
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 83.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 70A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 14.4 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 2ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VF7
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 83.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 70A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 14.4 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 7ms
Release Time : 2ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
0
100 in stock

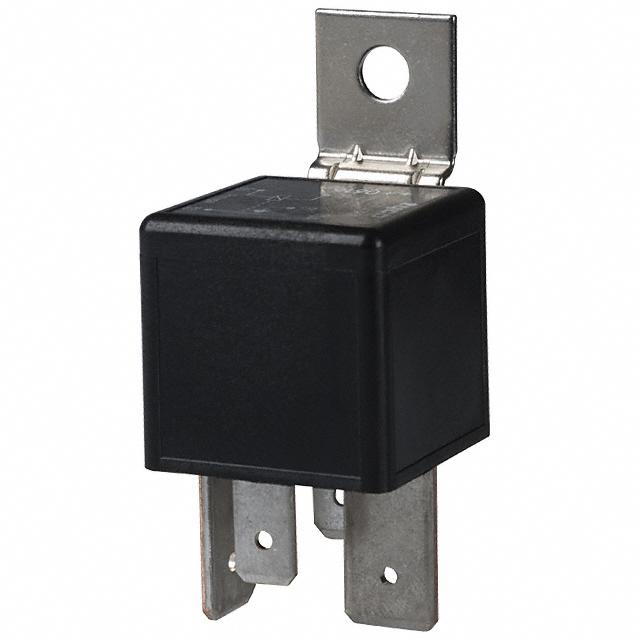

VF7-41F11
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VF7
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 167mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 70A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7.2 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 2ms
Features : -
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VF7
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 167mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 70A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7.2 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 7ms
Release Time : 2ms
Features : -
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
100 in stock

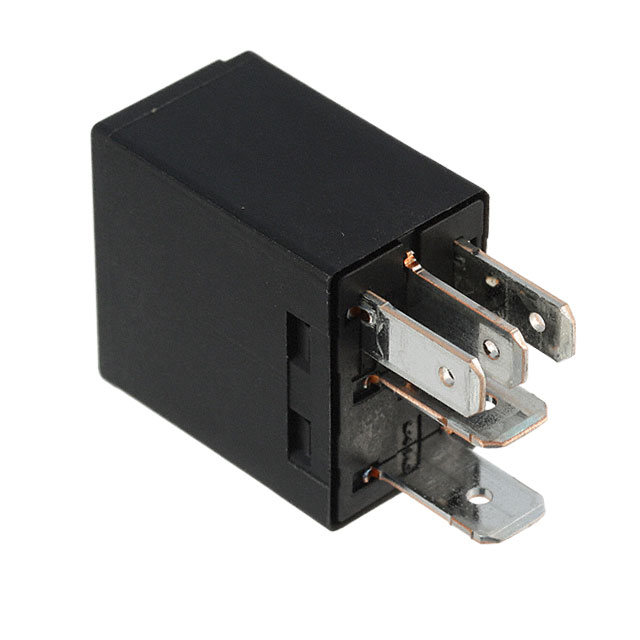

VFMA-15F41-S01
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VFM
Part Status : Active
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 30A
Switching Voltage : 12VDC - Nom
Turn On Voltage (Max) : 7.2 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : -
Release Time : -
Features : Resistor
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VFM
Part Status : Active
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 30A
Switching Voltage : 12VDC - Nom
Turn On Voltage (Max) : 7.2 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : -
Release Time : -
Features : Resistor
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
100 in stock
VKP-11F42
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
0
100 in stock

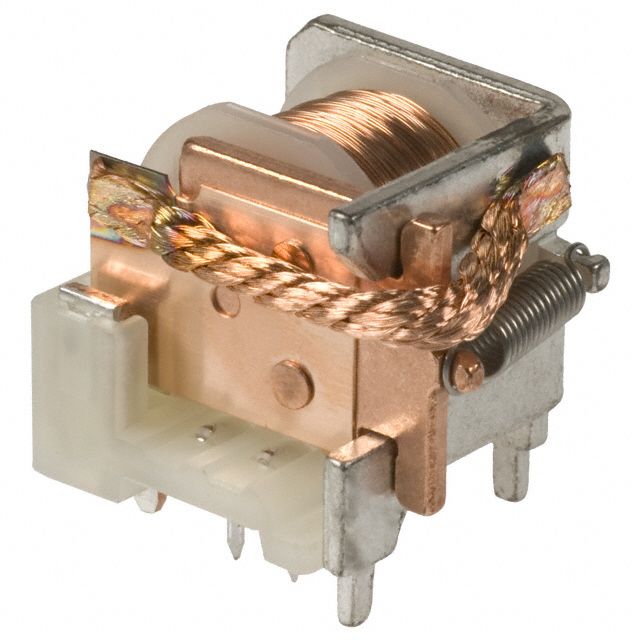

VKP-15F42
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
0
100 in stock
VKP-35F42
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
0
100 in stock
VKP-35F52
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : VKP
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 133mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Max
Turn On Voltage (Max) : 6.8 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 5ms
Release Time : 3ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
0
100 in stock
