Part Number
Manufacturer
Description
Unit Price
In Stock
CB1-R-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
0
2741 in stock

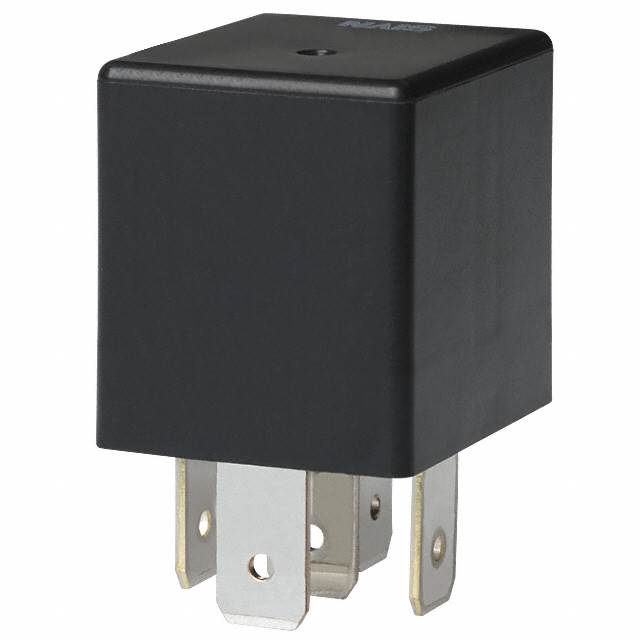

CB1-R-24V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 84.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 84.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
0
133 in stock
CB1-R-M-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
0
480 in stock

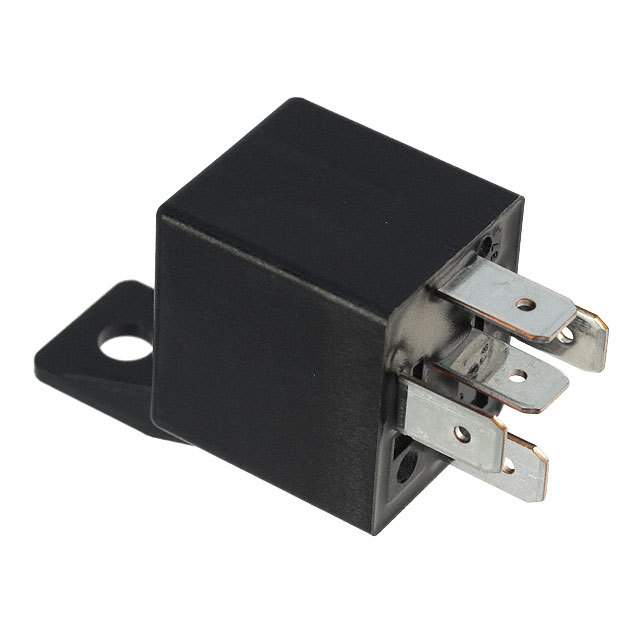

CB1-R-M-24V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 84.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 84.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
0
504 in stock
CB1-T-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
52 in stock
CB1-T-D-24V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 75.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : -
Features : Diode, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : CB
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : 75.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : -
Features : Diode, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
100 in stock
CB1-T-M-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
39 in stock

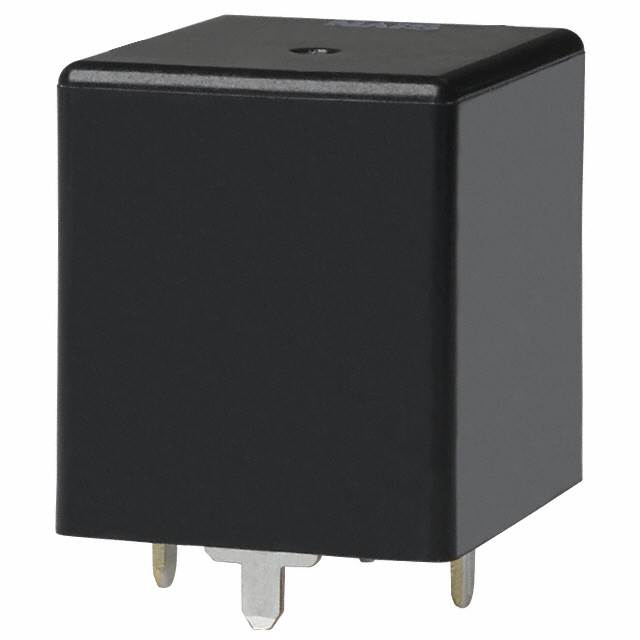

CB1-T-P-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 125°C
0
235 in stock
CB1-T-R-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Socketable
Termination Style : Plug In, Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
26 in stock
CB1-T-R-M-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 134mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Resistor, Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 125°C
0
44 in stock

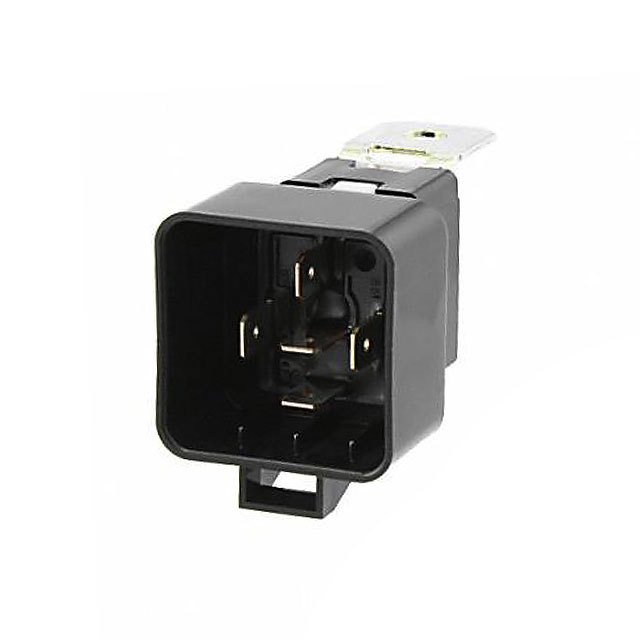

CB1-WM-12V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 117mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 40A
Switching Voltage : 14VDC - Nom
Turn On Voltage (Max) : 7 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
0
93 in stock
CB1-WM-24V
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 75.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Bulk
Series : CB
Part Status : Active
Coil Type : Non Latching
Coil Current : 75.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 28VDC - Nom
Turn On Voltage (Max) : 14 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Sealed - Fully
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : -40°C ~ 85°C
0
55 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
