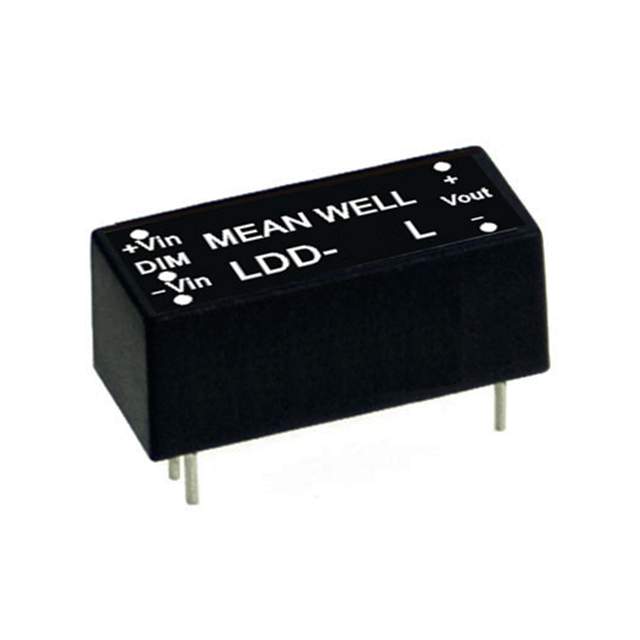

LDD-500L
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output : 2 ~ 32 V
Current - Output (Max) : 500mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm)
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output : 2 ~ 32 V
Current - Output (Max) : 500mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm)
0
68 in stock

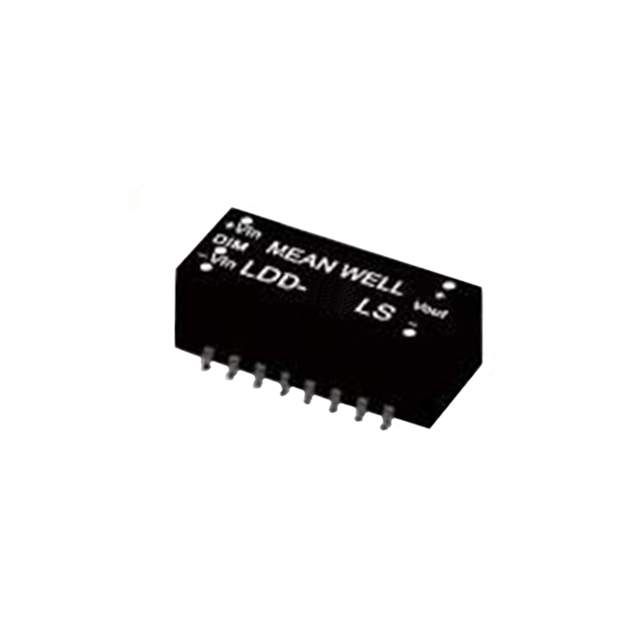

LDD-500LS
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 32V
Voltage - Output : 2 ~ 28 V
Current - Output (Max) : 500mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm)
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 32V
Voltage - Output : 2 ~ 28 V
Current - Output (Max) : 500mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm)
0
18 in stock
LDD-600H
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 97%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 9 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 97%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 9 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
0
3 in stock

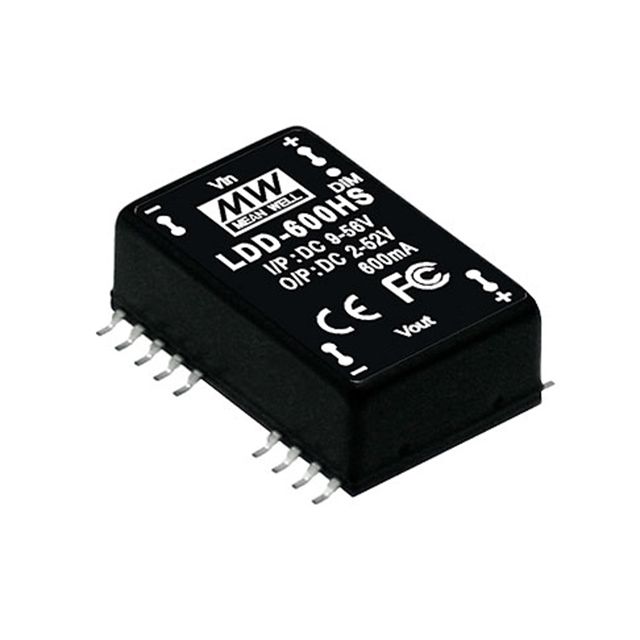

LDD-600HS
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 96%
Mounting Type : Surface Mount
Package / Case : 24-SMD Module, 18 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 96%
Mounting Type : Surface Mount
Package / Case : 24-SMD Module, 18 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
0
12 in stock
LDD-600L
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output : 2 ~ 32 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm)
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output : 2 ~ 32 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm)
0
56 in stock
LDD-600LS
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 32V
Voltage - Output : 2 ~ 28 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm)
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 32V
Voltage - Output : 2 ~ 28 V
Current - Output (Max) : 600mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm)
0
100 in stock

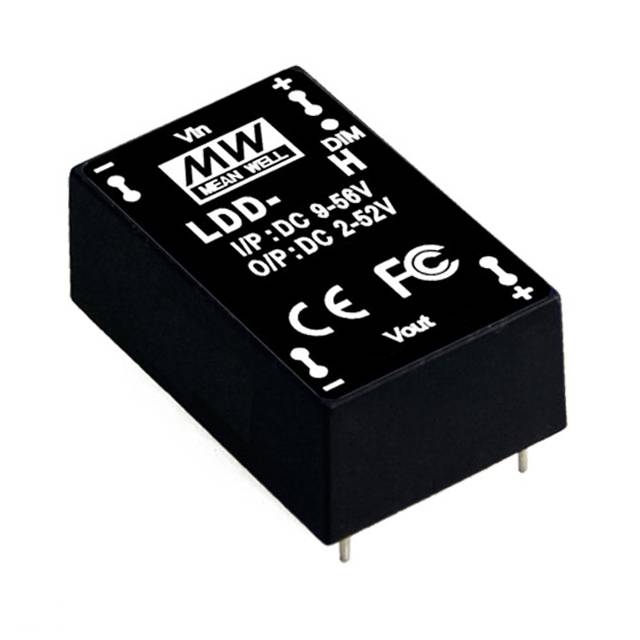

LDD-700H
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 97%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 9 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 97%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 9 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
0
504 in stock
LDD-700H-DA
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-H-DA
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 6V
Voltage - Input (Max) : 50V
Voltage - Output : 3 ~ 45 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : Analog, PWM
Features : Remote On/Off, SCP
Operating Temperature : -40°C ~ 85°C (With Derating)
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 16-DIP Module, 8 Leads
Size / Dimension : 1.60" L x 0.93" W x 0.40" H (40.6mm x 23.5mm x 10.1mm)
Series : LDD-H-DA
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 6V
Voltage - Input (Max) : 50V
Voltage - Output : 3 ~ 45 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : Analog, PWM
Features : Remote On/Off, SCP
Operating Temperature : -40°C ~ 85°C (With Derating)
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 16-DIP Module, 8 Leads
Size / Dimension : 1.60" L x 0.93" W x 0.40" H (40.6mm x 23.5mm x 10.1mm)
0
3 in stock
LDD-700HS
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 96%
Mounting Type : Surface Mount
Package / Case : 24-SMD Module, 18 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
Series : LDD-H
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 56V
Voltage - Output : 2 ~ 52 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 96%
Mounting Type : Surface Mount
Package / Case : 24-SMD Module, 18 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm)
0
9 in stock
LDD-700H-WDA
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-H-DA
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 6V
Voltage - Input (Max) : 50V
Voltage - Output : 3 ~ 45 V
Current - Output (Max) : 700mA
Power (Watts) : 32W
Dimming : Analog, PWM
Features : Remote On/Off, SCP
Operating Temperature : -40°C ~ 85°C (With Derating)
Efficiency : 95%
Mounting Type : Chassis Mount
Package / Case : -
Size / Dimension : 1.60" L x 0.93" W x 4.34" H (40.6mm x 23.6mm x 110.2mm)
Series : LDD-H-DA
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 6V
Voltage - Input (Max) : 50V
Voltage - Output : 3 ~ 45 V
Current - Output (Max) : 700mA
Power (Watts) : 32W
Dimming : Analog, PWM
Features : Remote On/Off, SCP
Operating Temperature : -40°C ~ 85°C (With Derating)
Efficiency : 95%
Mounting Type : Chassis Mount
Package / Case : -
Size / Dimension : 1.60" L x 0.93" W x 4.34" H (40.6mm x 23.6mm x 110.2mm)
0
100 in stock
LDD-700L
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output : 2 ~ 32 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm)
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 36V
Voltage - Output : 2 ~ 32 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm)
0
2298 in stock
LDD-700LS
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 32V
Voltage - Output : 2 ~ 28 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm)
Series : LDD-L
Part Status : Active
Topology : Buck
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 32V
Voltage - Output : 2 ~ 28 V
Current - Output (Max) : 700mA
Power (Watts) : -
Dimming : PWM
Features : Remote On/Off, OTP, SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 95%
Mounting Type : Surface Mount
Package / Case : 16-SMD Module
Size / Dimension : 1.00" L x 0.41" W x 0.37" H (25.4mm x 10.5mm x 9.3mm)
0
18 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
