Welcome to Weijie Semiconductor
- Power Supplies - Board Mount
- AC DC Converters
Part Number
Manufacturer
Description
Unit Price
In Stock

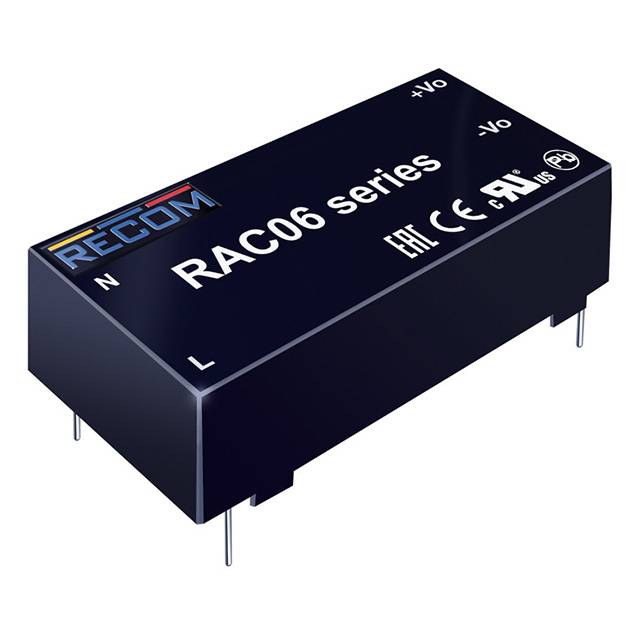

RAC06-24SC
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC06-C (6W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 264 VAC, 115 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 250mA
Power (Watts) : 6W
Applications : ITE (Commercial)
Features : OCP, OTP, OVP, SCP
Operating Temperature : -25°C ~ 75°C (With Derating)
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 5-DIP Module, 4 Leads
Size / Dimension : 2.11" L x 1.09" W x 0.65" H (53.5mm x 27.8mm x 16.6mm)
Series : POWERLINE RAC06-C (6W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 264 VAC, 115 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 250mA
Power (Watts) : 6W
Applications : ITE (Commercial)
Features : OCP, OTP, OVP, SCP
Operating Temperature : -25°C ~ 75°C (With Derating)
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 5-DIP Module, 4 Leads
Size / Dimension : 2.11" L x 1.09" W x 0.65" H (53.5mm x 27.8mm x 16.6mm)
0
61 in stock
RAC06-3.3SC
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC06-C (6W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 264 VAC, 115 ~ 370 VDC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 1.5A
Power (Watts) : 6W
Applications : ITE (Commercial)
Features : OCP, OTP, OVP, SCP
Operating Temperature : -25°C ~ 75°C (With Derating)
Efficiency : 70%
Mounting Type : Through Hole
Package / Case : 5-DIP Module, 4 Leads
Size / Dimension : 2.11" L x 1.09" W x 0.65" H (53.5mm x 27.8mm x 16.6mm)
Series : POWERLINE RAC06-C (6W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 264 VAC, 115 ~ 370 VDC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 1.5A
Power (Watts) : 6W
Applications : ITE (Commercial)
Features : OCP, OTP, OVP, SCP
Operating Temperature : -25°C ~ 75°C (With Derating)
Efficiency : 70%
Mounting Type : Through Hole
Package / Case : 5-DIP Module, 4 Leads
Size / Dimension : 2.11" L x 1.09" W x 0.65" H (53.5mm x 27.8mm x 16.6mm)
0
730 in stock

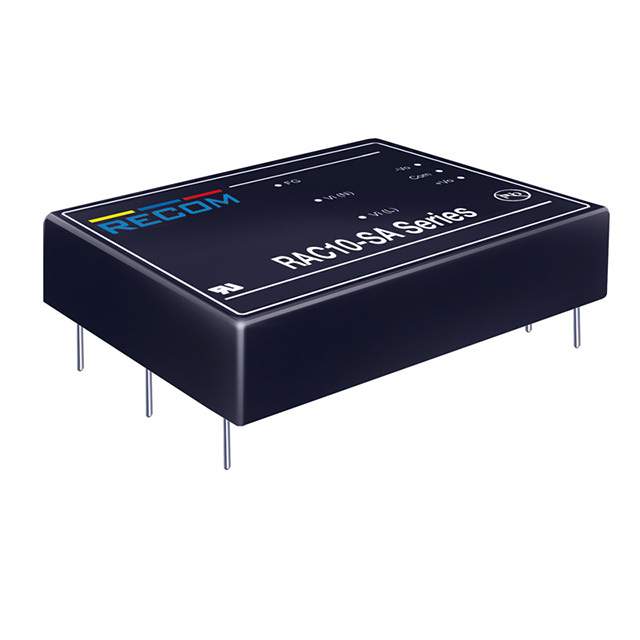

RAC10-05DA
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Current - Output (Max) : 800mA, 800mA
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Current - Output (Max) : 800mA, 800mA
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
0
100 in stock
RAC10-05DA-E
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Current - Output (Max) : 800mA, 800mA
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Current - Output (Max) : 800mA, 800mA
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
0
100 in stock

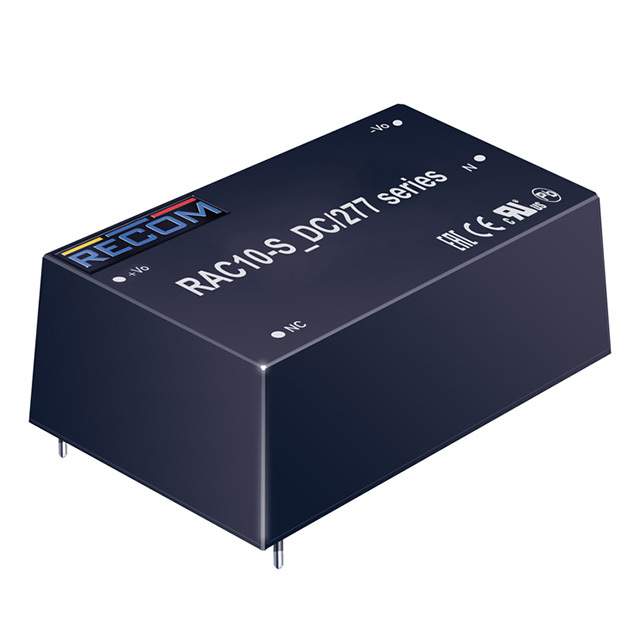

RAC10-05DC/277
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-C/277
Part Status : Active
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 80 ~ 305 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Current - Output (Max) : 1A, 1A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : OCP, OVP, SCP
Operating Temperature : -20°C ~ 70°C (With Derating)
Efficiency : 77%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.4mm x 23.5mm)
Series : POWERLINE RAC10-C/277
Part Status : Active
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 80 ~ 305 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Current - Output (Max) : 1A, 1A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : OCP, OVP, SCP
Operating Temperature : -20°C ~ 70°C (With Derating)
Efficiency : 77%
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Size / Dimension : 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.4mm x 23.5mm)
0
18 in stock
RAC10-05SA
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
0
100 in stock
RAC10-05SA-E
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C (With Derating)
Efficiency : 71%
Mounting Type : Through Hole
Package / Case : 6-DIP Module, 5 Leads
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
0
100 in stock
RAC10-05SB
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-B (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 72%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.06" L x 1.07" W x 0.94" H (52.3mm x 27.2mm x 23.8mm)
Series : POWERLINE RAC10-B (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 72%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.06" L x 1.07" W x 0.94" H (52.3mm x 27.2mm x 23.8mm)
0
79 in stock

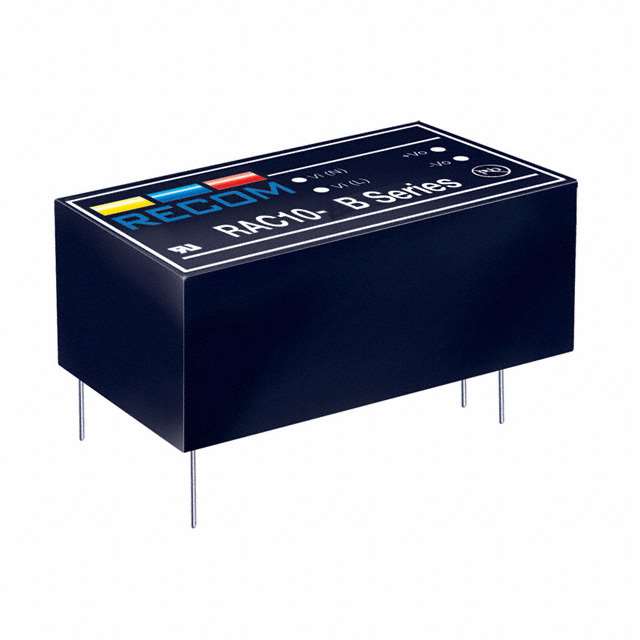

RAC10-05SB-E
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-B (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C (With Derating)
Efficiency : 72%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.06" L x 1.07" W x 0.94" H (52.3mm x 27.2mm x 23.8mm)
Series : POWERLINE RAC10-B (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C (With Derating)
Efficiency : 72%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.06" L x 1.07" W x 0.94" H (52.3mm x 27.2mm x 23.8mm)
0
16 in stock
RAC10-05SC/277
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-C/277
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 305 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : OCP, OVP, SCP
Operating Temperature : -20°C ~ 70°C (With Derating)
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.4mm x 23.5mm)
Series : POWERLINE RAC10-C/277
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 305 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : OCP, OVP, SCP
Operating Temperature : -20°C ~ 70°C (With Derating)
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.4mm x 23.5mm)
0
3371 in stock

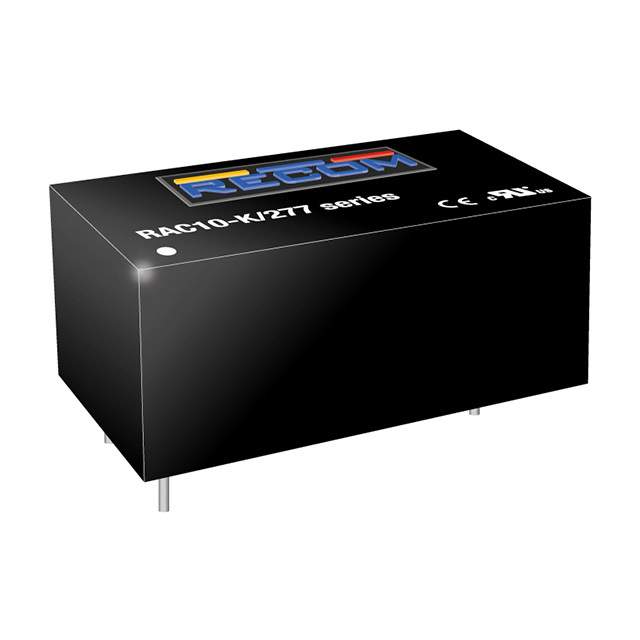

RAC10-05SK/277
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-K/277
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 305 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : Household Appliances, ITE (Commercial)
Features : Universal Input
Operating Temperature : -40°C ~ 80°C (With Derating)
Efficiency : 82%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.4mm x 23.5mm)
Series : POWERLINE RAC10-K/277
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 80 ~ 305 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Current - Output (Max) : 2A
Power (Watts) : 10W
Applications : Household Appliances, ITE (Commercial)
Features : Universal Input
Operating Temperature : -40°C ~ 80°C (With Derating)
Efficiency : 82%
Mounting Type : Through Hole
Package / Case : 4-DIP Module
Size / Dimension : 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.4mm x 23.5mm)
0
443 in stock
RAC10-12DA
RECOM Power
Manufacturer : Recom Power
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Current - Output (Max) : 380mA, 380mA
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
Series : POWERLINE RAC10-A (10W)
Part Status : Not For New Designs
Type : Enclosed
Number of Outputs : 2
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Current - Output (Max) : 380mA, 380mA
Power (Watts) : 10W
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -25°C ~ 70°C (With Derating)
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 6-DIP Module
Size / Dimension : 2.52" L x 1.77" W x 0.87" H (64.0mm x 45.0mm x 22.0mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
