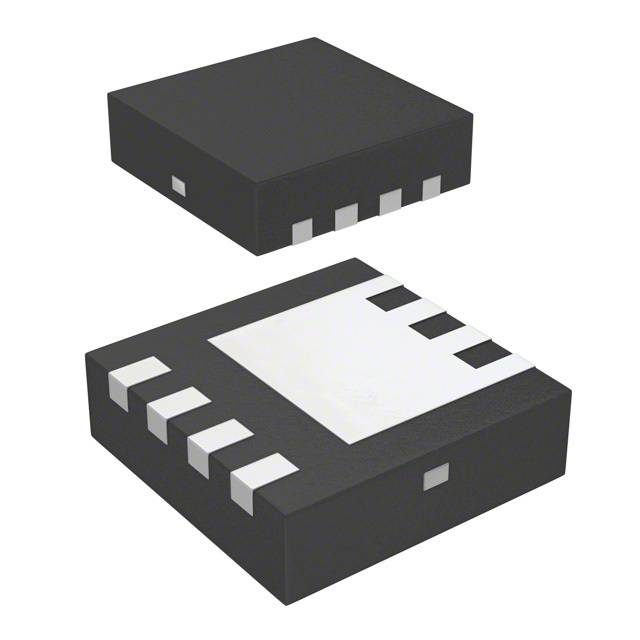

TMC1420-LA
TMC1420-LA
Manufacturer : Trinamic Motion Control GmbH
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 8.8A, 7.3A
Rds On (Max) @ Id, Vgs : 26.5 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 15V
Power - Max : 3.57W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : PQFN (5x6)
Availability: 100 in stock
