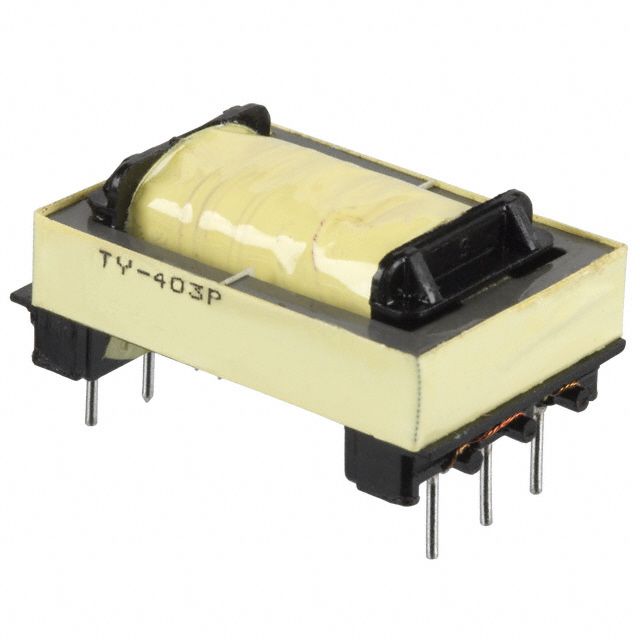

TY-403P
TY-403P
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1.81:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.75dB Typ
Return Loss : 15dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.815" L x 1.250" W (20.70mm x 31.75mm)
Height - Seated (Max) : 0.530" (13.46mm)
Termination Style : PC Pin
Availability: 100 in stock
