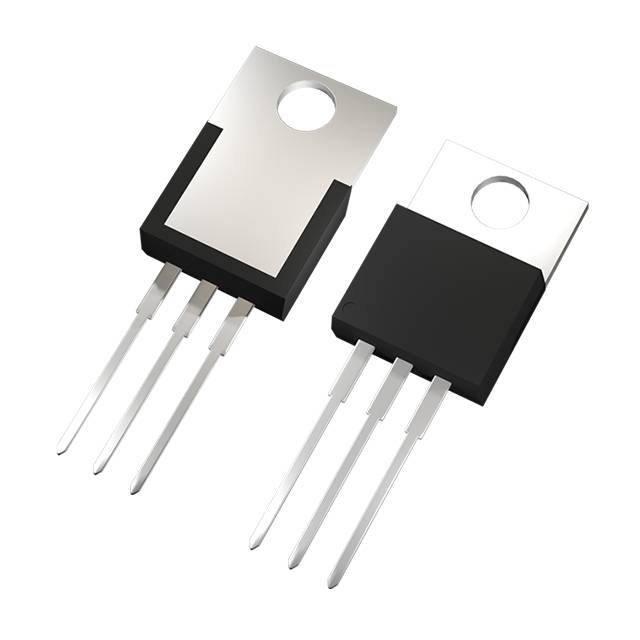

TP90H180PS
TP90H180PS
Manufacturer : Transphorm
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 205 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 8V
Vgs (Max) : ±18V
Input Capacitance (Ciss) (Max) @ Vds : 780pF @ 600V
FET Feature : -
Power Dissipation (Max) : 78W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220AB
Package / Case : TO-220-3
Availability: 212 in stock
