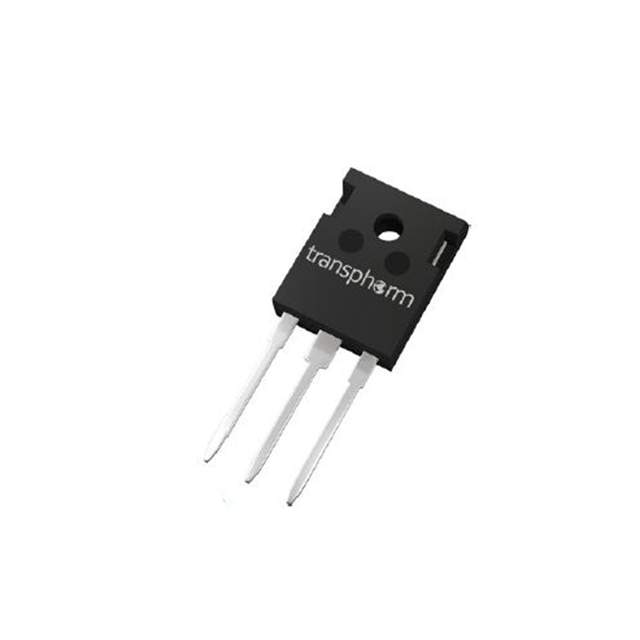

TP65H050WS
TP65H050WS
Manufacturer : Transphorm
Packaging : -
Series : -
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 650V
Current - Continuous Drain (Id) @ 25°C : 34A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 60 mOhm @ 22A, 10V
Vgs(th) (Max) @ Id : 4.8V @ 700µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 400V
FET Feature : -
Power Dissipation (Max) : 119W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-247-3
Package / Case : TO-247-3
Availability: 293 in stock
