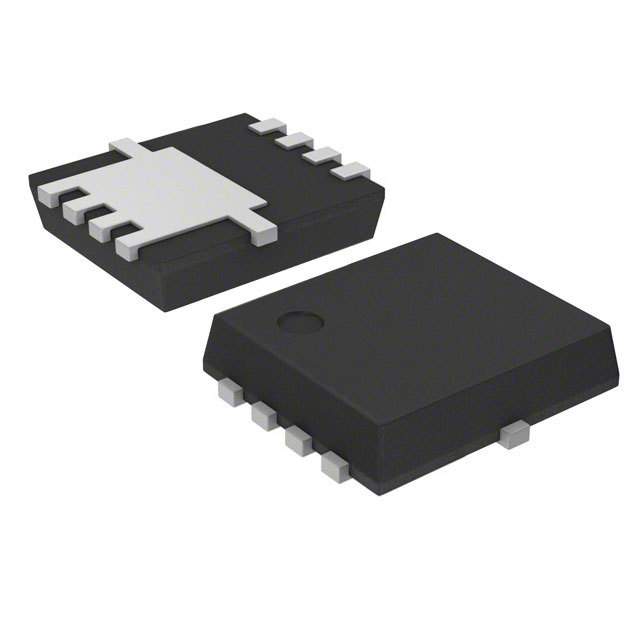

TPN2R304PL,L1Q
TPN2R304PL,L1Q
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSIX-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 2.3 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 0.3mA
Gate Charge (Qg) (Max) @ Vgs : 41nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3600pF @ 20V
FET Feature : -
Power Dissipation (Max) : 630mW (Ta), 104W (Tc)
Operating Temperature : 175°C
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Availability: 4289 in stock
