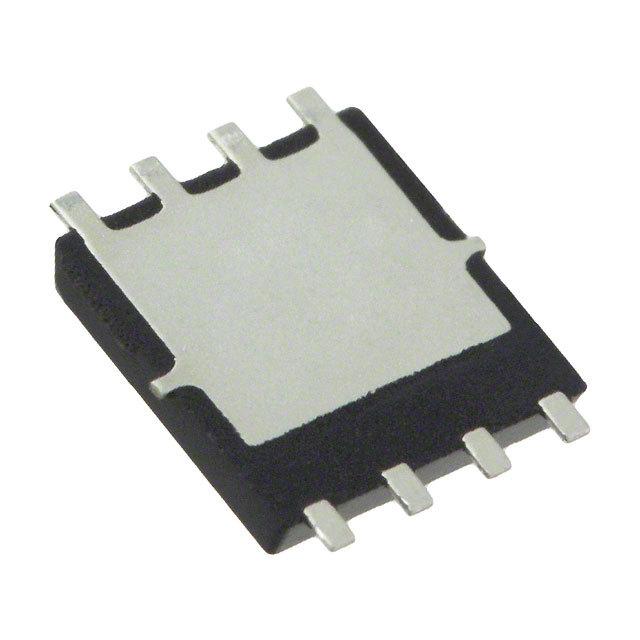

TPN22006NH,LQ
TPN22006NH,LQ
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 6.5V, 10V
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 710pF @ 30V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 18W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Availability: 1802 in stock
