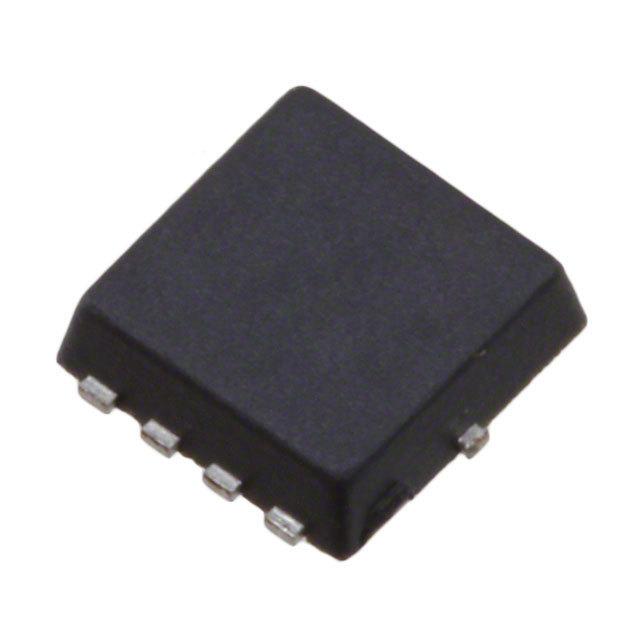

TPN13008NH,L1Q
TPN13008NH,L1Q
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : U-MOSVIII-H
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 13.3 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 40V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 42W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Availability: 9861 in stock
