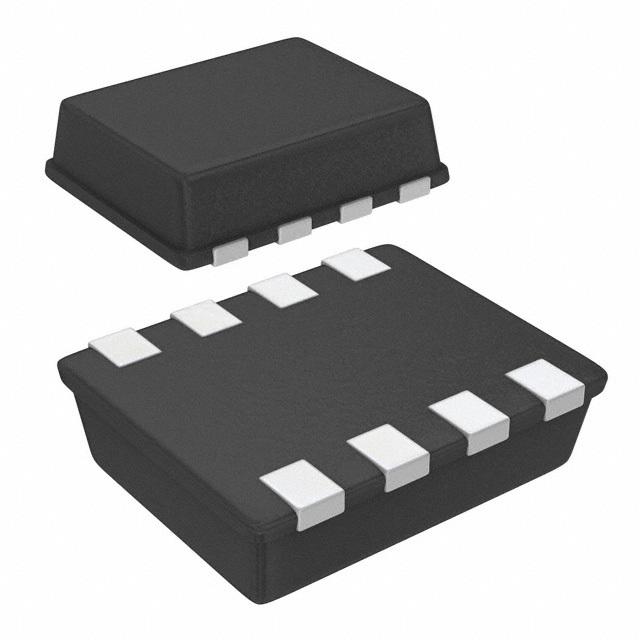

TPCP8005-H(TE85L,F
TPCP8005-H(TE85L,F
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tape & Reel (TR)
Series : U-MOSV-H
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 11A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 12.9 mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2150pF @ 10V
FET Feature : -
Power Dissipation (Max) : 840mW (Ta)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : PS-8 (2.9x2.4)
Package / Case : 8-SMD, Flat Lead
Availability: 100 in stock
