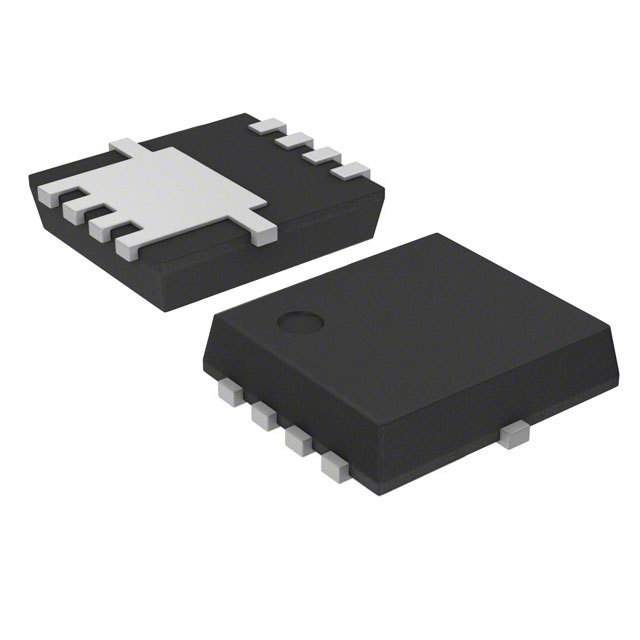

TPCC8103(TE12L,QM)
TPCC8103(TE12L,QM)
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : U-MOSV
Part Status : Discontinued at
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 18A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4V, 10V
Rds On (Max) @ Id, Vgs : 12 mOhm @ 9A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 38nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 10V
FET Feature : -
Power Dissipation (Max) : 700mW (Ta), 27W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-TSON Advance (3.3x3.3)
Package / Case : 8-PowerVDFN
Availability: 2187 in stock
