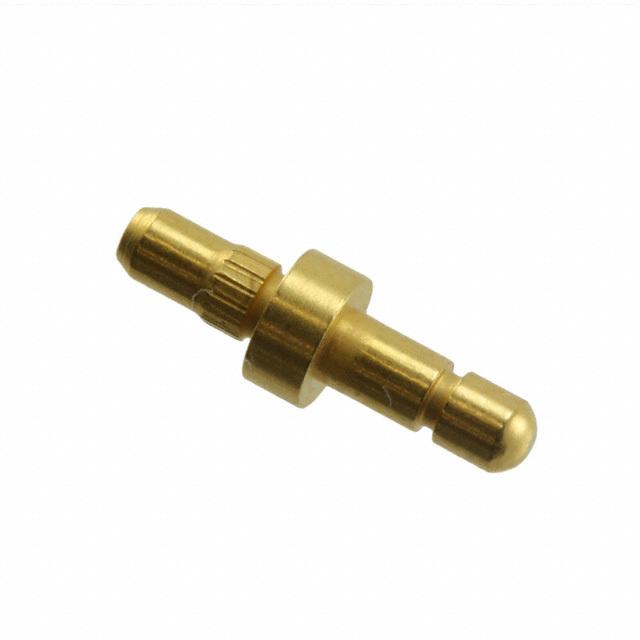

60599-3
60599-3
Manufacturer : TE Connectivity AMP Connectors
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : Single Post
Terminal Style : Flanged, Pin Retention
Pin Size - Above Flange : 0.058" (1.47mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.165" (4.18mm)
Length - Below Flange : 0.143" (3.63mm)
Length - Overall : 0.352" (8.94mm)
Flange Diameter : 0.110" (2.79mm)
Mounting Hole Diameter : 0.059" ~ 0.062" (1.50mm ~ 1.57mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : 0.063" (1.60mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
Availability: 642 in stock
