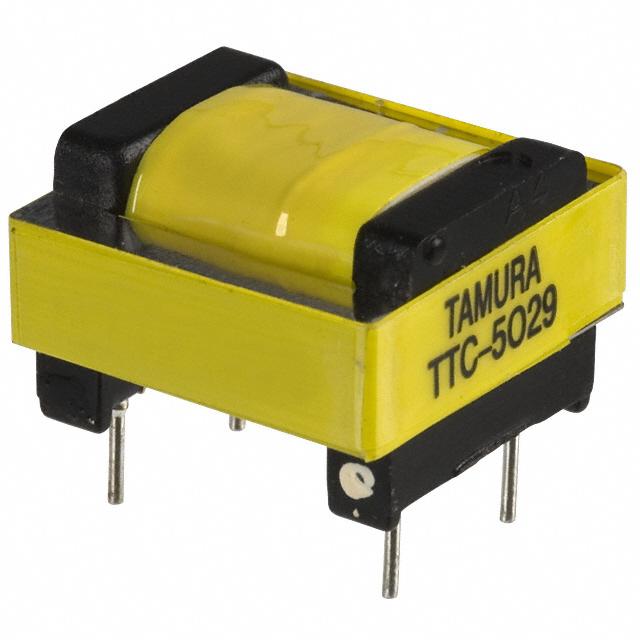

TTC-5029
TTC-5029
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 40 Ohm
DC Resistance (DCR) - Secondary : 40 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.2dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1dB Max @ 1kHz
Return Loss : 20dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : 0°C ~ 70°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.669" L x 0.669" W (17.00mm x 17.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
