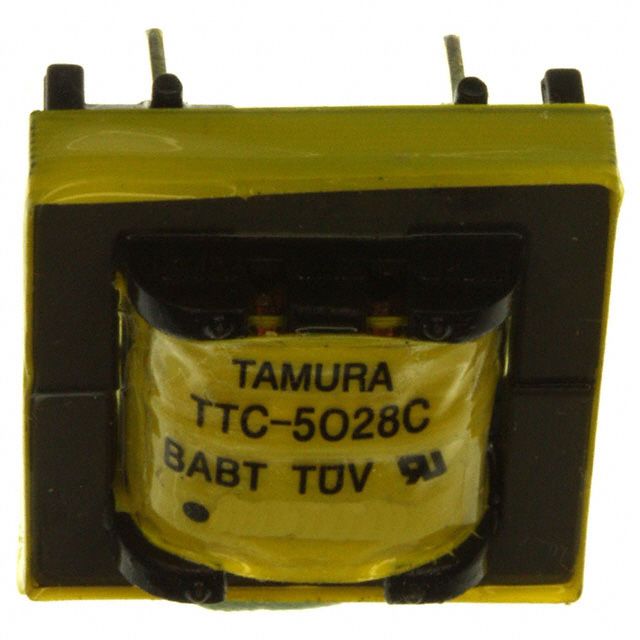

TTC-5028
TTC-5028
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 470
DC Resistance (DCR) - Primary : 92 Ohm
DC Resistance (DCR) - Secondary : 120 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±1dB ~ ±4dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 2.5dB Max @ 1kHz
Return Loss : -
Power Level : -40dB ~ 4dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-95, UL1950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.583" (14.80mm)
Termination Style : PC Pin
Availability: 100 in stock
