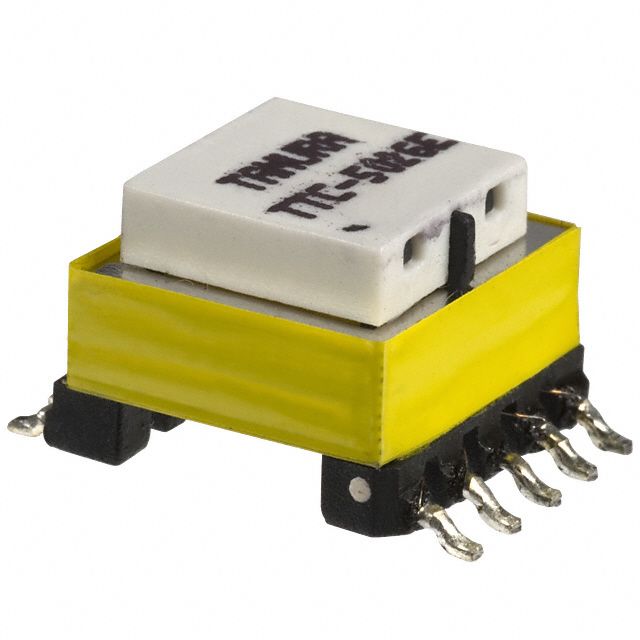

TTC-5026
TTC-5026
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 490CT
DC Resistance (DCR) - Primary : 23.8 Ohm
DC Resistance (DCR) - Secondary : 47.8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.3dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950
Mounting Type : Surface Mount
Size / Dimension : 0.532" L x 0.551" W (13.50mm x 14.00mm)
Height - Seated (Max) : 0.409" (10.40mm)
Termination Style : Gull Wing
Availability: 100 in stock
