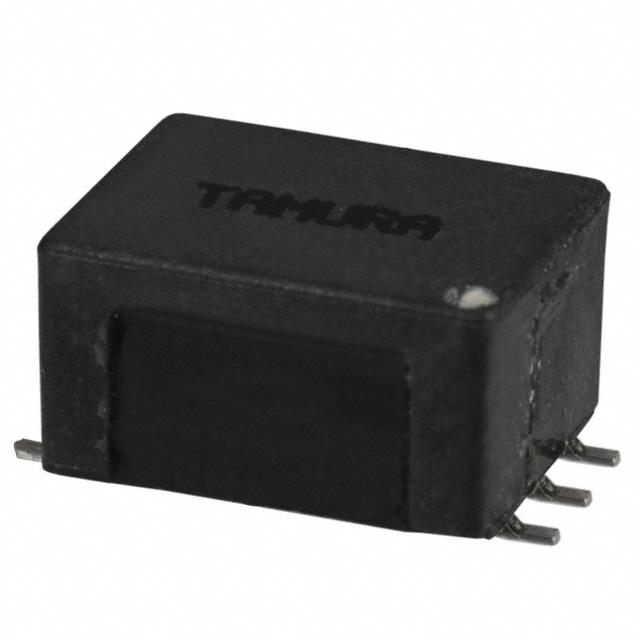

TTC-5023
TTC-5023
Manufacturer : Tamura
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 115 Ohm
DC Resistance (DCR) - Secondary : 115 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 3000VRMS @ 1 Minute
Insertion Loss : 2dB Max @ 2kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -20°C ~ 85°C
Approvals : UL60950, EN60950
Mounting Type : Surface Mount
Size / Dimension : 0.378" L x 0.492" W (9.60mm x 12.50mm)
Height - Seated (Max) : 0.299" (7.60mm)
Termination Style : Flat Lead
