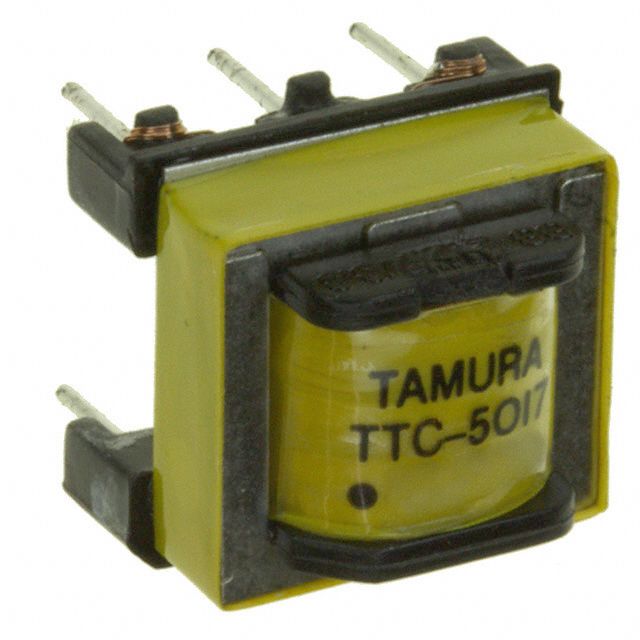

TTC-5017
TTC-5017
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 59 Ohm
DC Resistance (DCR) - Secondary : 59 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL60950
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
Availability: 14989 in stock
