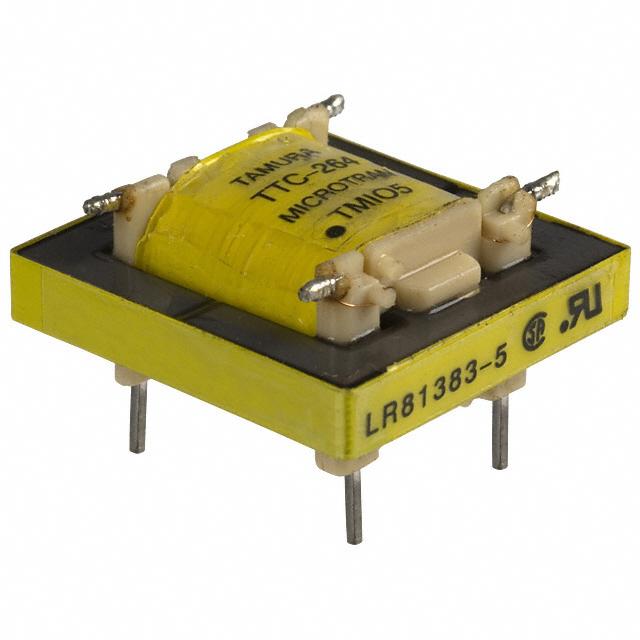

TTC-264
TTC-264
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 470
DC Resistance (DCR) - Primary : 108 Ohm
DC Resistance (DCR) - Secondary : 120 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±1dB ~ ±4dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 2.5dB Max @ 1kHz
Return Loss : -
Power Level : -20dB ~ 4dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.906" W (24.00mm x 23.00mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
Availability: 1908 in stock
