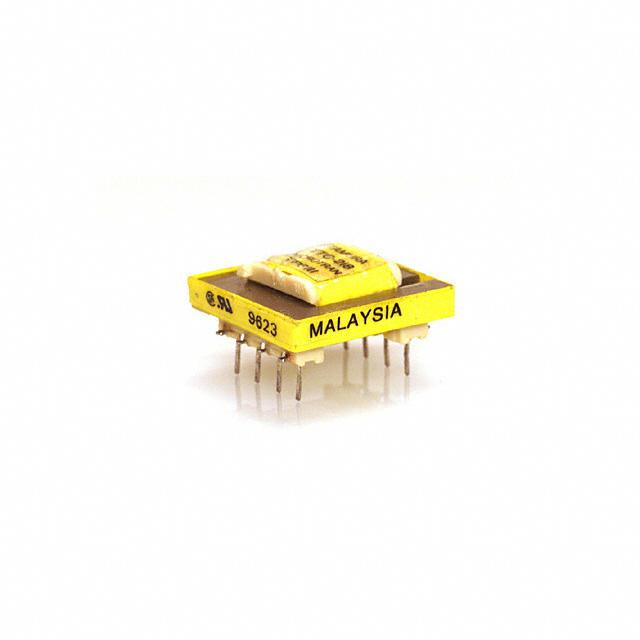

TTC-218
TTC-218
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 49 Ohm
DC Resistance (DCR) - Secondary : 76 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 660Hz ~ 3.5kHz
Frequency Response : -1.8dB ~ 0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.8dB Max @ 2kHz
Return Loss : -
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1863
Mounting Type : Through Hole
Size / Dimension : 0.839" L x 0.760" W (21.30mm x 19.30mm)
Height - Seated (Max) : 0.346" (8.80mm)
Termination Style : PC Pin
Availability: 100 in stock
