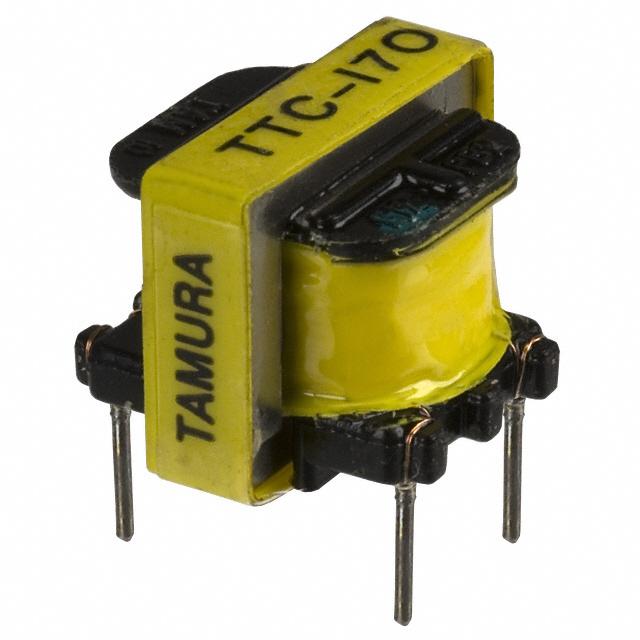

TTC-170
TTC-170
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 47 Ohm
DC Resistance (DCR) - Secondary : 61 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : 0°C ~ 70°C
Approvals : CSA-C22.2 No. 66-M1988, UL1459
Mounting Type : Through Hole
Size / Dimension : 0.528" L x 0.512" W (13.40mm x 13.00mm)
Height - Seated (Max) : 0.421" (10.70mm)
Termination Style : PC Pin
Availability: 99 in stock
