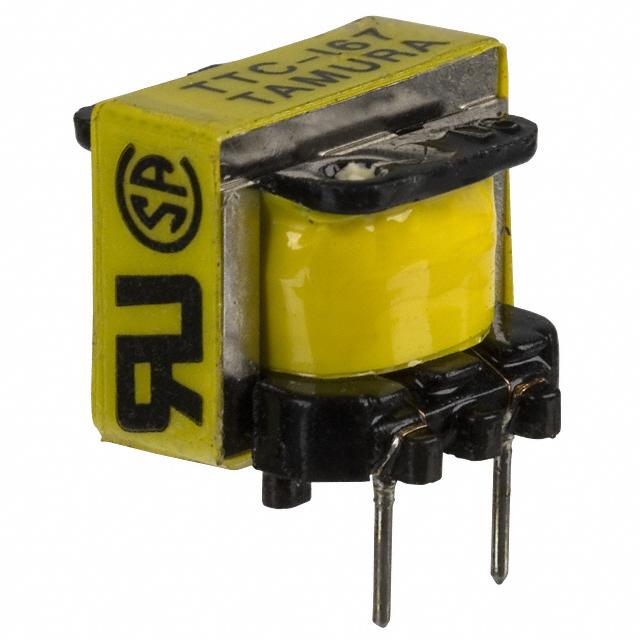

TTC-167
TTC-167
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 10k
DC Resistance (DCR) - Primary : 330 Ohm
DC Resistance (DCR) - Secondary : 420 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 4kHz
Frequency Response : ±1dB
Voltage - Isolation : 1000VRMS @ 1 Minute
Insertion Loss : 1.7dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : CSA-C22.2 No. 66-M1988, UL1863
Mounting Type : Through Hole
Size / Dimension : 0.610" L x 0.689" W (15.50mm x 17.50mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination Style : PC Pin
Availability: 5352 in stock
