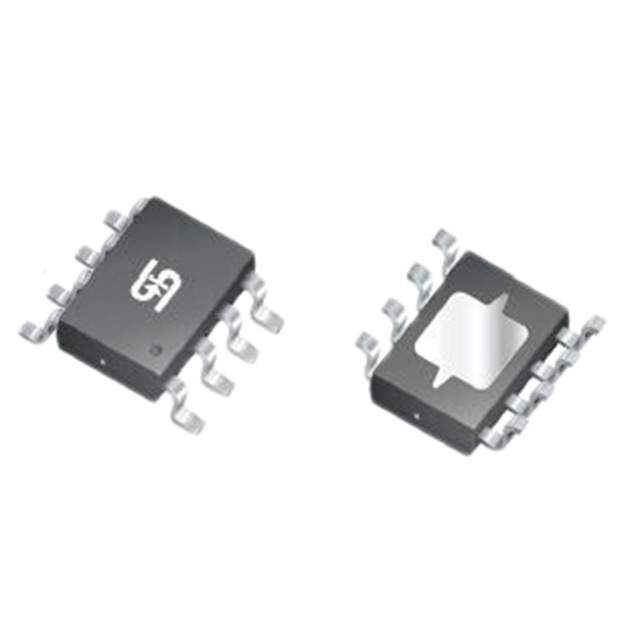

TSM8568CS RLG
TSM8568CS RLG
Manufacturer : Taiwan Semiconductor Corporation
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A (Tc), 13A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 8A, 10V, 24 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7nC @ 4.5V, 11nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 646pF @ 15V, 1089pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Availability: 9960 in stock
